76
Maintenance
8e Move the panel with the heater to the side of the GSD 320 and fasten in place
with four socket head cap screws.

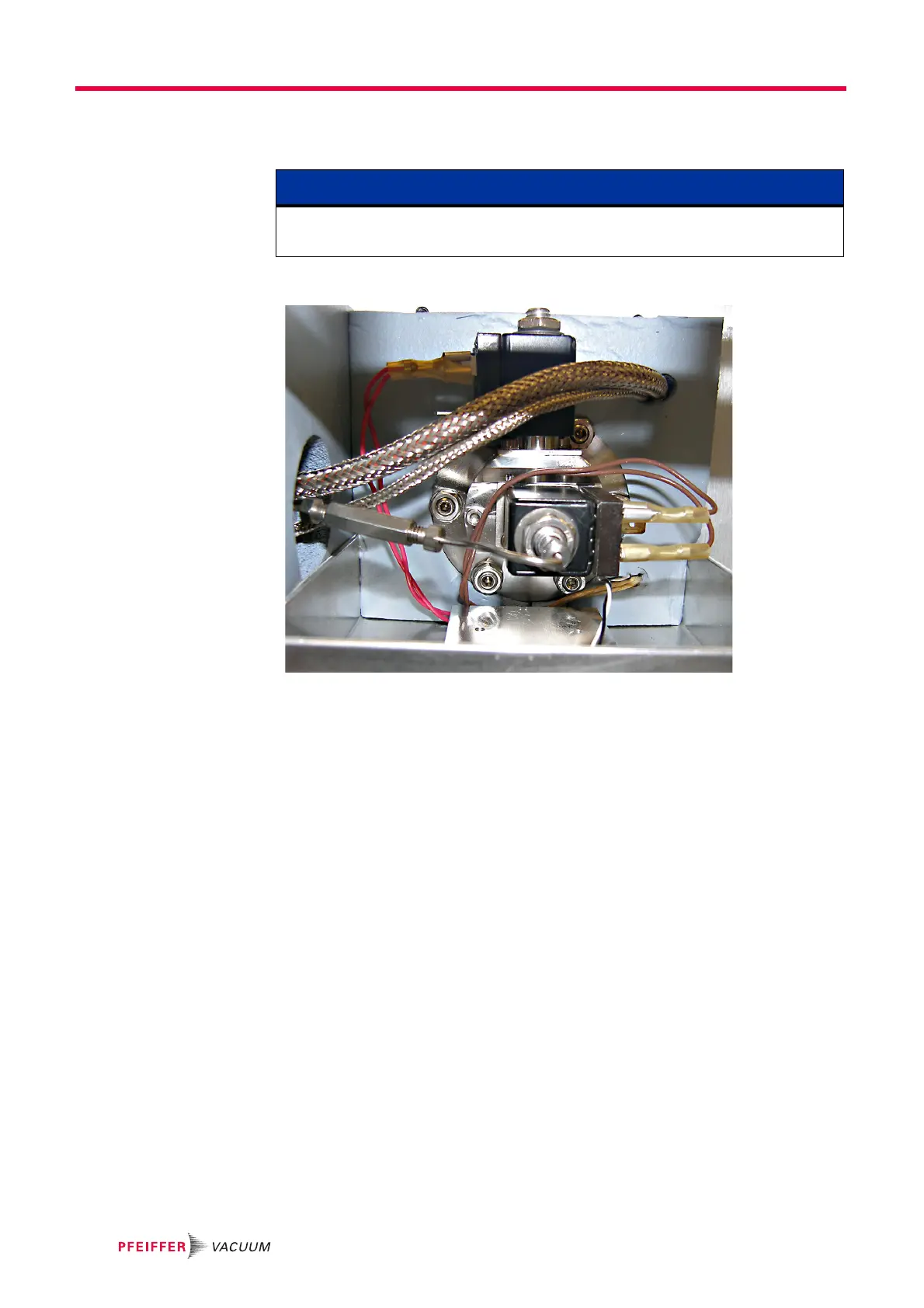

Figure 10-16 Capillary inlet opposite side configuration
8f Install the blank panels in the top and side of the oven and fasten each panel in
place with (4) socket head cap screws.
8g Install the inlet guard with access on the heater line and inlet guards without
access on the bland panels. Use (4) socket head cap screws to fasten guards
in place.
8h Re-install the capillary line, foam insulation, and oven cover as described in
section 10.3 on page 68.
8i Place the chassis cover back on the GSD 320 and fasten it to the frame using
(9) screws.
8j Install the front panel as described in section 10.3 on page 68.
NOTE
There is slack in the length of the heater power cords for moving the panel, but it might
be necessary pull additional length from inside the GSD 320.
