Maintenance
79

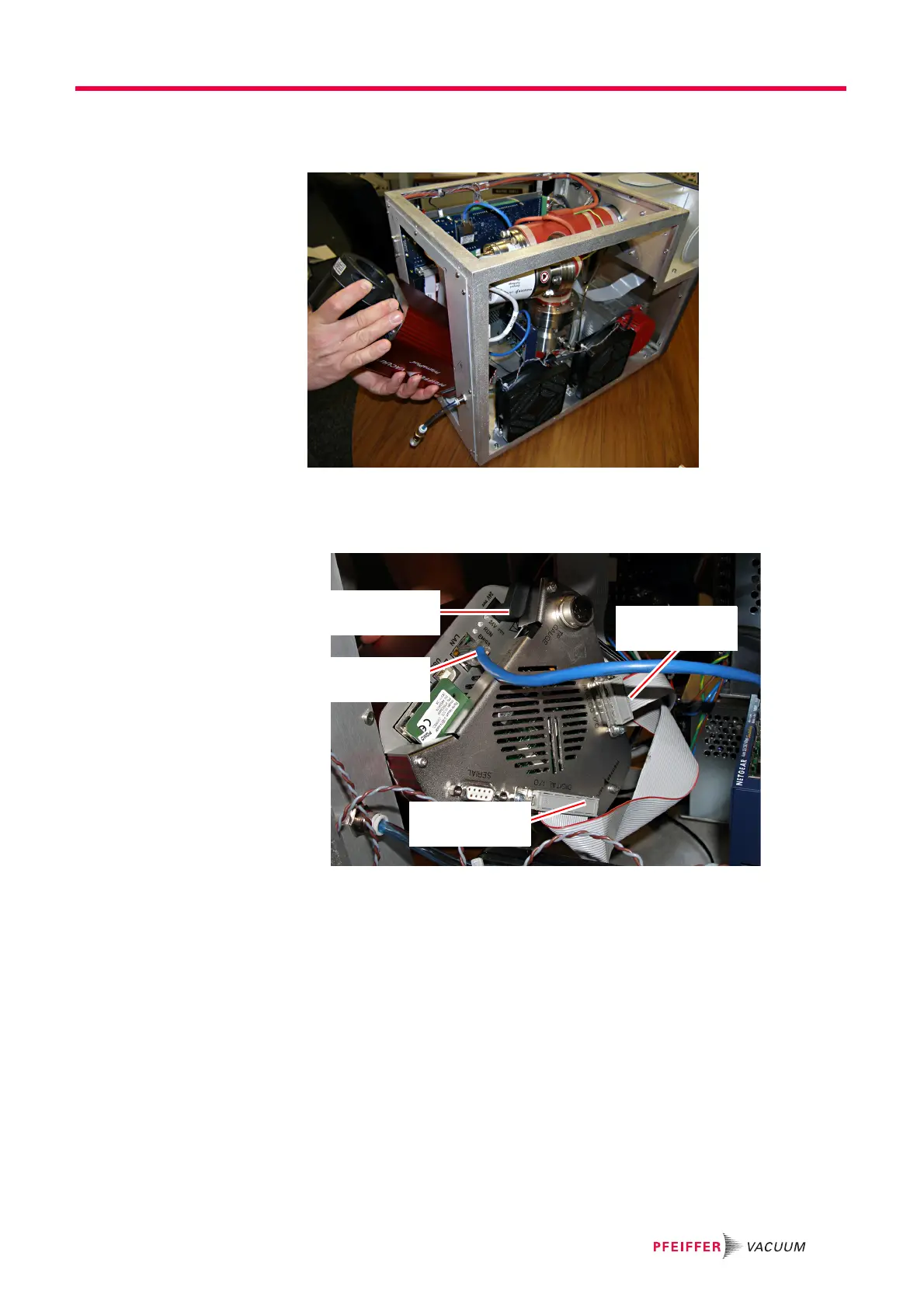

7 Slide the sensor away from the GSD 320 as seen in Figure 10-20.
Figure 10-20 Removing the PrismaPlus Sensor
8 Disconnect the ethernet, analog input, digital input, and power supply cables shown
in Figure 10-21.
Figure 10-21 Removing the Cables
Power Supply
Cable
Ethernet
Cable
Analog Input
Cable
Digital Input
Cable
