Section 7 | Mechanical Overview
www.pflow.com
P 414 352 9000
F 414 352 9002
6720 N. Teutonia Ave.
Milwaukee, WI 53209
Each F series (mechanical) Vertical Reciprocating Conveyor (VRC) consists of
four(4) columns, a drivebase assembly with a gearmotor reducer, drive sha with
four (4) cornerli sprocket assemblies, a moving carriage deck, and if furnished,
interlocked safety gates or doors. See Figure 7-1. In addition, a main control
panel, and one push-button station per level are furnished. For more information
on the electrical components, see Section 8 in this manual.
The frame consists of four (4) vertical upright columns. These are anchored
to the oor at the lower oor level, positioned by the drivebase at the top, and
braced to the building structure. Exact bracing varies by application.
Each column has a guide angle welded to one ange of the column to form a
track. A chain tube guard is welded to the face of the other ange.
Lift Columns
Mechanical
Overview

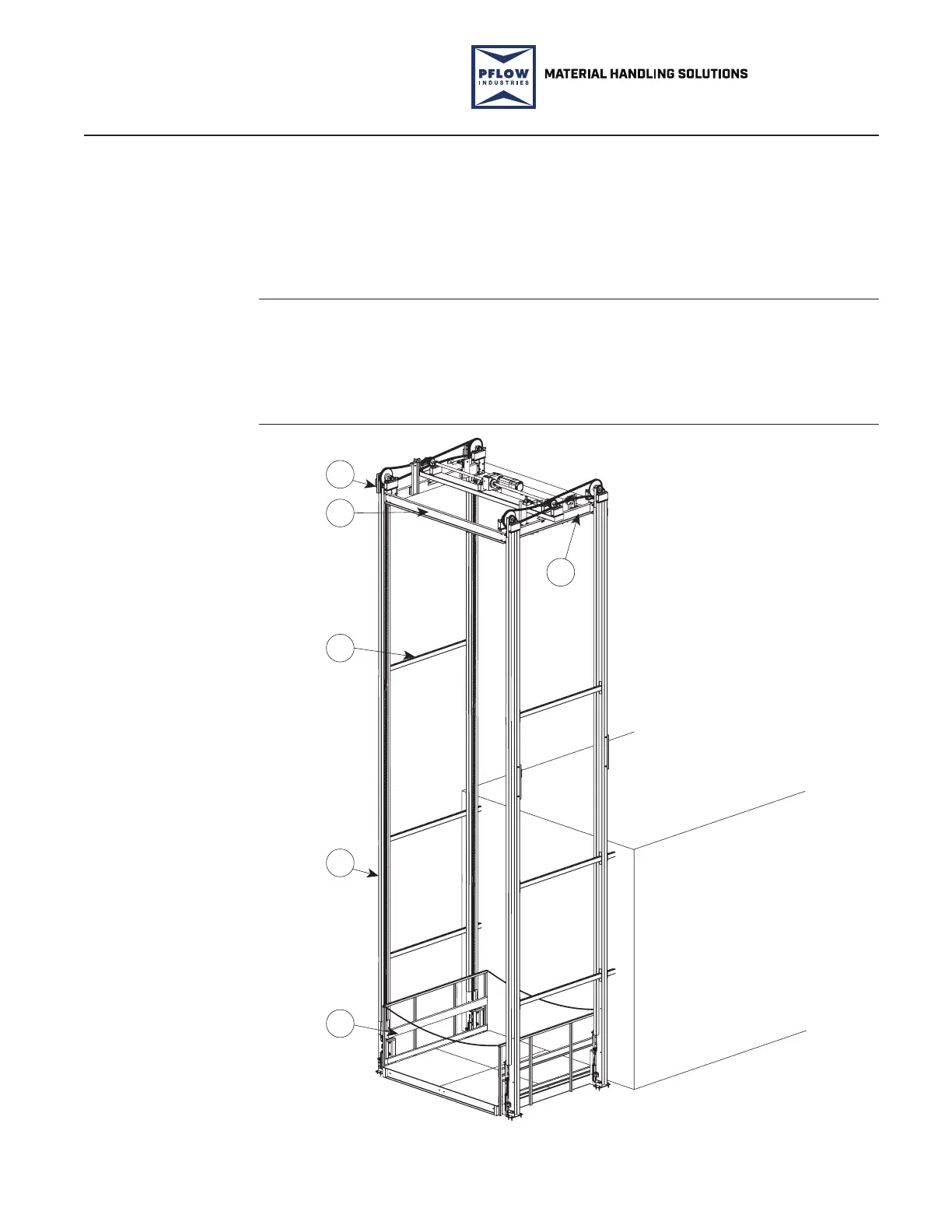

Assembled F Series
Figure 7-1
1. Drivebase and Corner
Sprocket Assemblies
2. Channel Bracing
3. Drive Struts
4. Column-to-Column
Bracing
5. Column
6. Carriage
10308-0002.SMG
