R-net Bluetooth Modules Technical Manual | Chapter 2 - Installation
15
3.3 CABLES
The cables to a Bluetooth Module must be routed and secured in such a way
as to prevent damage to them, for example by cutting or crushing.

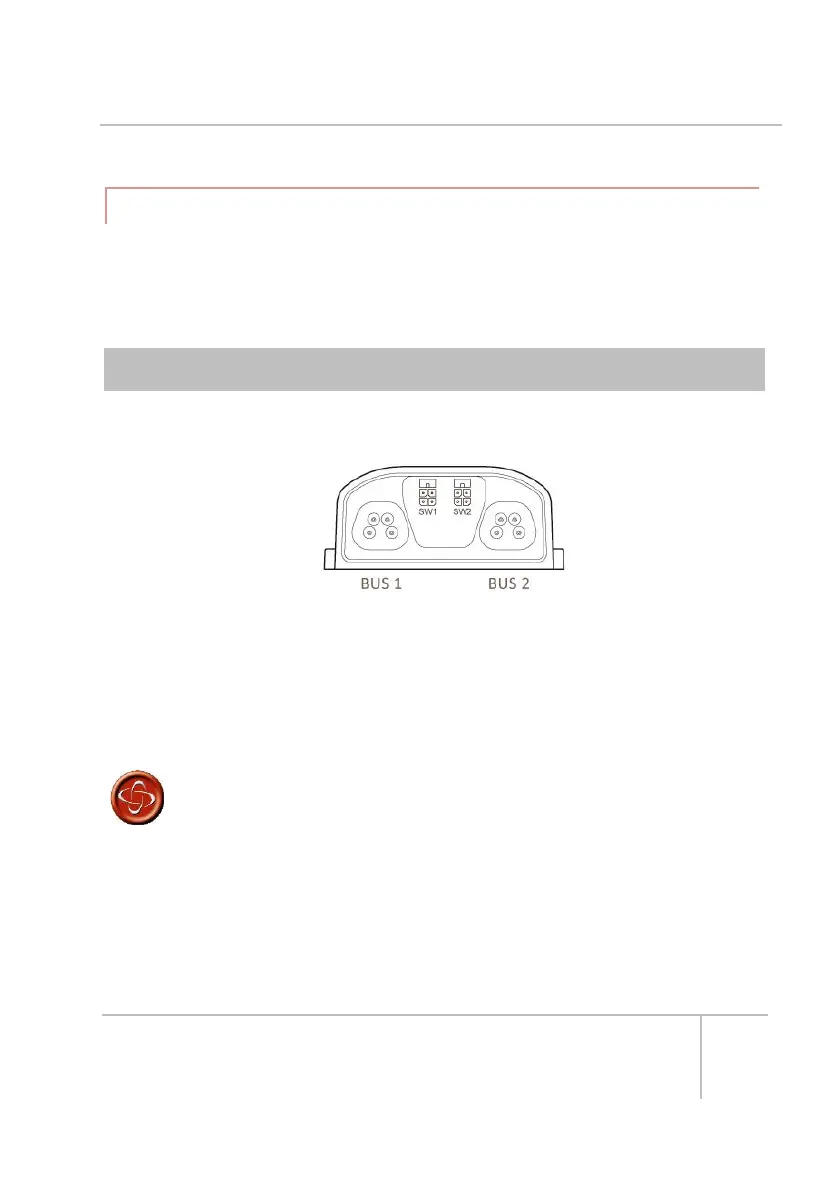

4 CONNECTIONS
The Bluetooth Modules have the following connections:
Bus 1 – R-net Communication Cable Connector
Bus 2 – R-net Control System Cable Connector
SW1 – External Switch Connector
SW2 – External Switch Connector
The Bus connections can only be used to connect a Bluetooth
Module to an R-net Control System using PG Drives Technology
supplied R-net Communication Cables. PG Drives Technology
accepts no liability for any losses of any kind if an incorrect cable is
used.
