iXH Camera Systems Installation Guide
Page 11
2. Close the Lens locking levers.

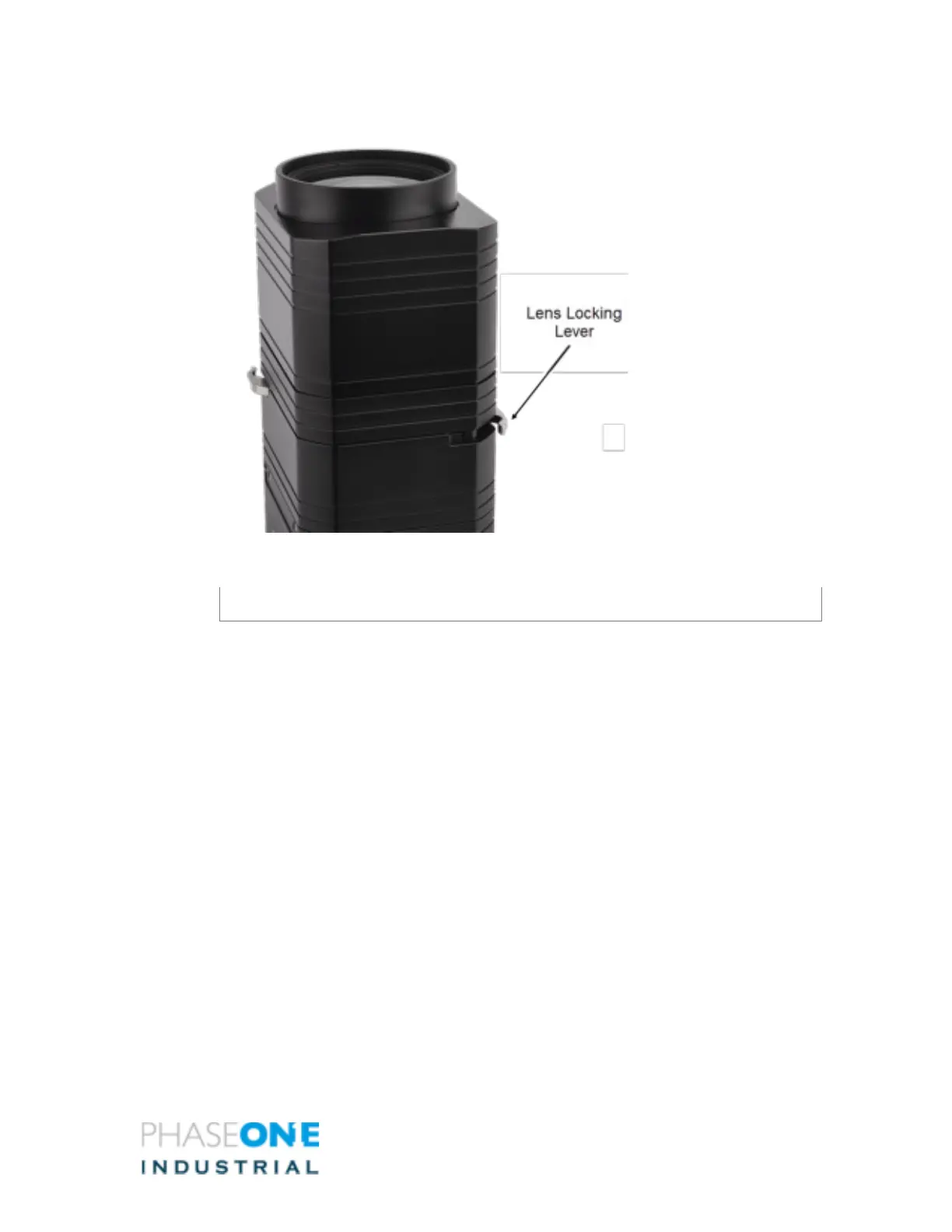

Figure 6 –Lens Locking Lever
Note:
The Lens is asymmetrical and can only be fitted in ONE position.
