Mechanical Instructions
EN 11LC7.2E LB 4.
4.3.8 Small Signal Board (SSB)
1. Refer to next figure.
2. Disconnect all cables [1] on the SSB. Be careful not to
damage the fragile LVDS cable [2].
3. Remove the screws [3] that hold the SSB.
4. Remove the screws [4] that hold the CINCH and HDMI
connectors at the connector panel.
5. Lift the SSB from the set.

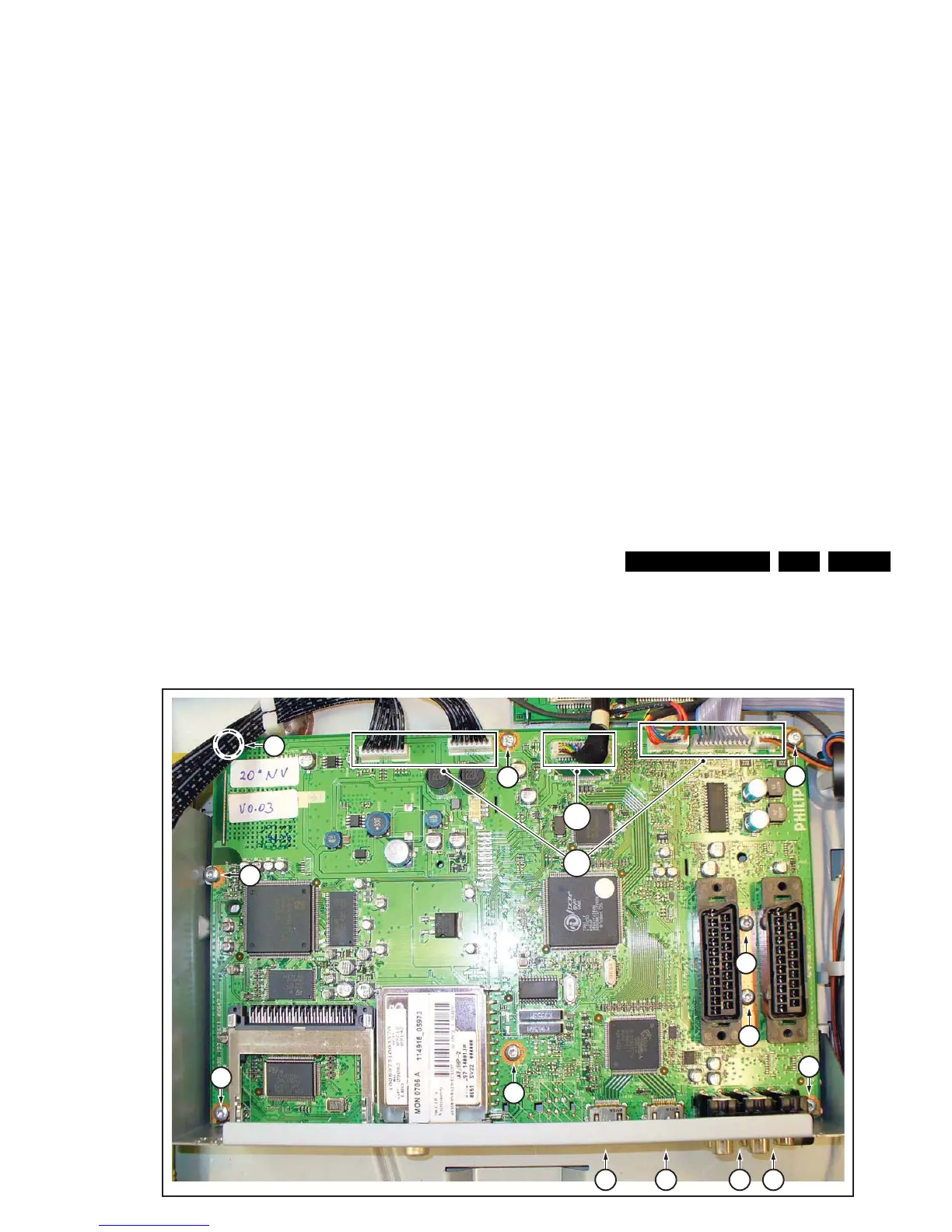

Figure 4-10 SSB removal
H_17170_031.eps
310707
3
3
3
4444
3
3
3
3
3
3
1
2
