Philips 3000 V2 - External Machine Parts Philips 3000 V2 EASY CAPPUC

PHILIPS 3000 V2 01 INTRODUCTION
6/13

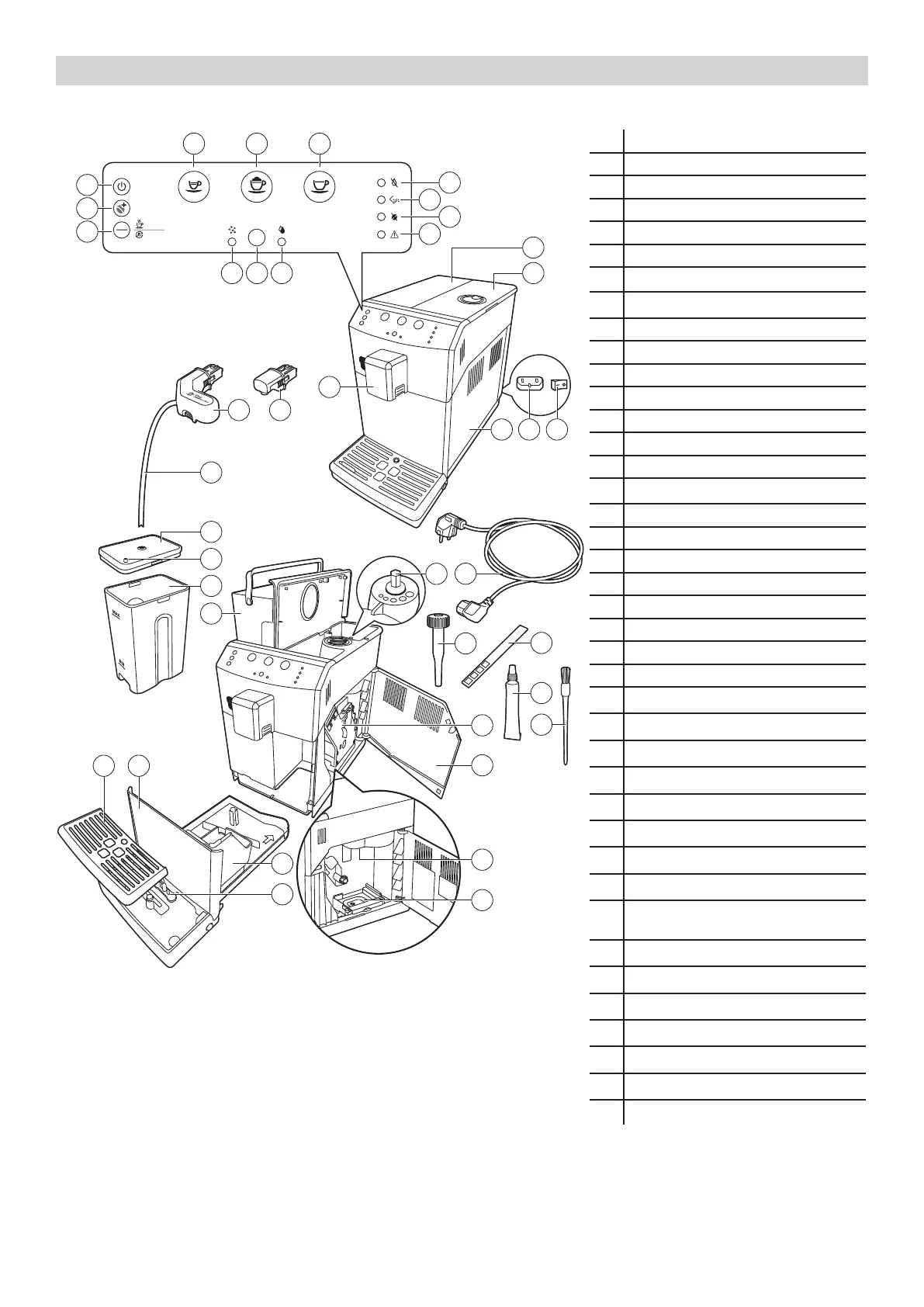

 1.9.ExternalmachinepartsPhilips3000V2EASYCAPPUCCINO
2
1
X
X
Aroma plus
Hot water
Espresso
Memo Memo Memo
Calc
clean
Coee
Cappuccino
Milk clean
19
20
4
5
6
1 2 3
13
11
12
10
31
33
18
21
22
23
29
15
14
30
32
7 8 9
2827
17 16
34
37
38
36
35
39
24
25
26
40
1 ESPRESSO button
2 CAPPUCCINO button
3 COFFEE button
4 ON/OFF button
5 AROMA STRENGTH button
6 HOT WATER/ MILK CLEAN button
7 Descaling cycle light
8 CALC CLEAN button
9 Rinse cycle light
10 General warning light
11 No coee light
12 Empty coee grounds container light
13 No water light
14 Lid of the water tank
15 Lid of the bean hopper
16 Main switch
17 Socket for cord
18 Service door
19 Coee dispensing spout
20 Hot water dispensing spout
21 Automatic milk frother
22 Suction tube
23 Top of the milk carafe
24 Pin on top of the milk carafe
25 Milk carafe
26 Water tank
27 Drip tray cover
28 Drip tray
29 Coee grounds container
30 Drip tray full indicator
31 Coee residues drawer
32 Coee exit duct
33 Inside of service door with cleaning
instructions
34 Brew group
35 Cleaning brush
36 Grease
37 Water hardness tester
38 Multifunctional tool
39 Cord
40 Grinder adjustment knob
