PHILIPS 3000 V2 07 DISASSEMBLY
3/7
7.4. Coeegrinderadjustment
Adjustment by a service center
Loosen the screws holding the cappuccinatore. When reassembling the
assembly to be careful to correctly position the spring.
Slide out the fork
as illustrated
 7.5.Carafeconnectionandhot/steamwaterdispenser
For Models UP TO S/N.TW901645704031 the grinding ad-
justment can be set by the user (only with the coee grinder
in operation) by pressing and turning (only by one click at a
time) the insert inside the coee bean hopper with the aid of
the wrench supplied.
For Models from S/N.TW901645704032
the grinding adjustment can be set by the
user pressing and turning the grinder ad-
justment knob
+
-
-
+

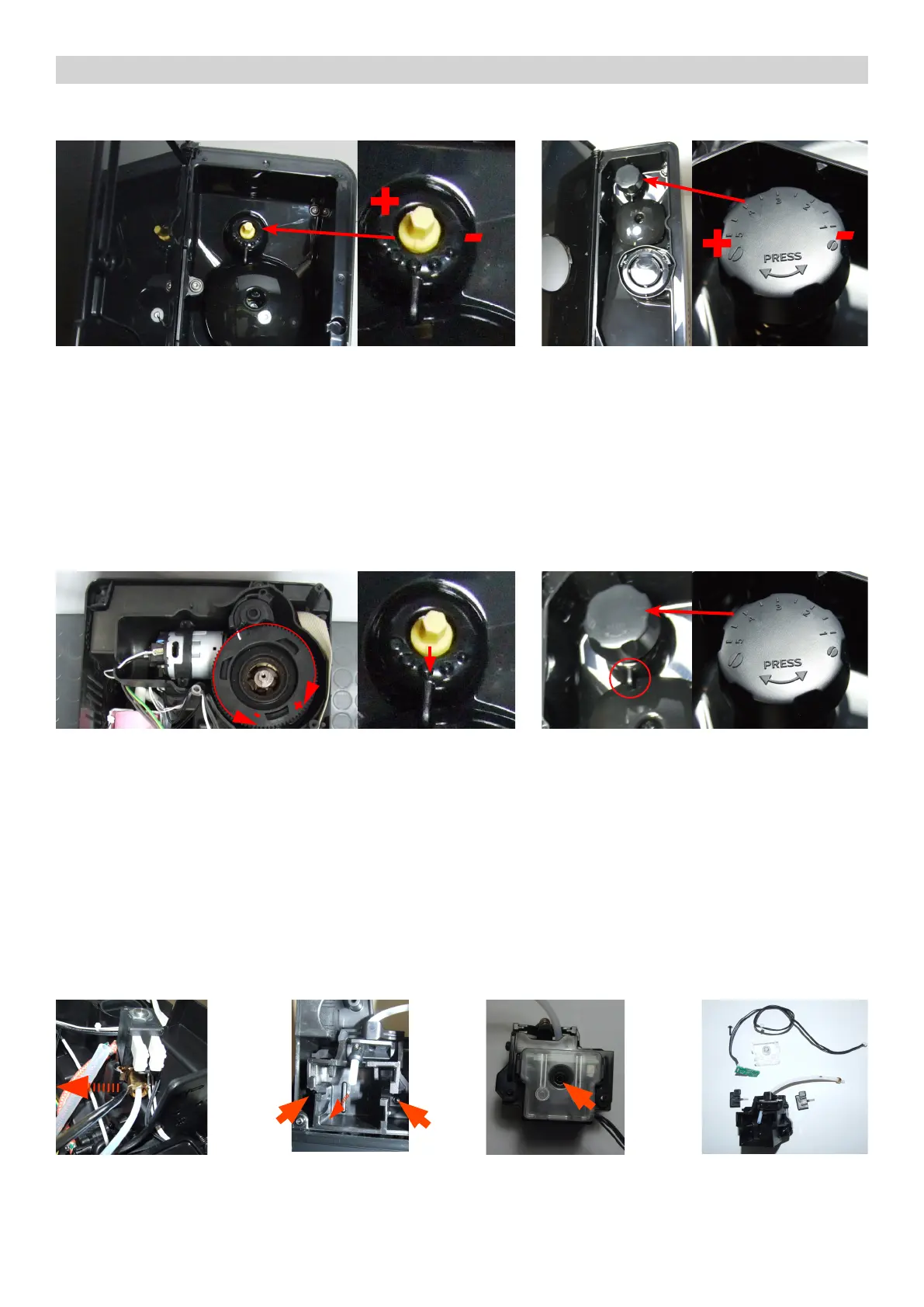

To adjust grinding further, the engineer can work directly on the coee grinder by pressing and turning the ring nut
(C) shown. (clockwise + to increase the particle size of the coee and anticlockwise - to decrease it).
If there are any remains of coee powder between the two grinding blades it is recommended to tighten by max.
two marks at a time.
Lastly, move the arrow (A) on the adjustment knob to the center of the adjustment dots on the cover (B) for
Models UP TO S/N.TW901645704031, instead for models from S/N.TW901645704032 ascertain that the
center line of the “PRESS” (D) is in correspondence of the n (E).
B
A
+
-
C
D
E
