Philips 3000 V2 - Outer Shell

PHILIPS 3000 V2 07 DISASSEMBLY
1/7
 7.1. OuterShell
Coeedispenser
Philips 3000 V2 Easy Cappuccino

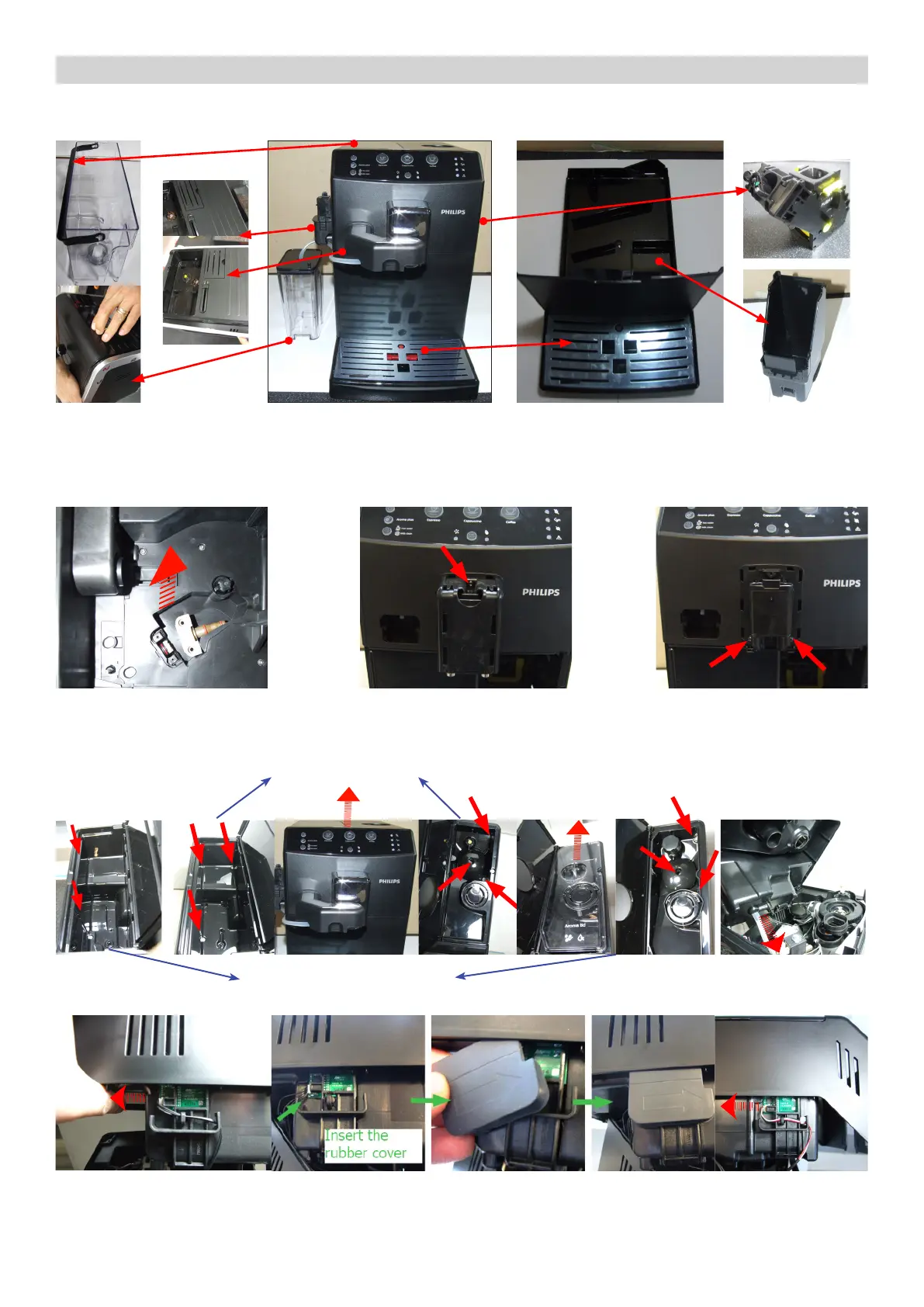

Remove the water tank, carae, water spout, cappuccinatore or pannarello, drip tray, dump box,
brewing unit.
Remove the dispenser
cover
Unscrew the screw shown and remove the cover
Upper cover
Unscrew the screws shown, raise the top cover and remove the water circuit connections.
From SN. TW901645704032
Remove the electrical connections.
For Models UP TO S/N.TW901645704031 see SDA_112764. For models from S/N.TW901645704032 the
position of water level sensor has been moved to avoid its oxidation (not inserted the rubber cover).
Up to SN. TW901645704031
