PHILIPS 3000 V2 01 INTRODUCTION
5/13
1.7. ServicePOLICYgridasusedforcoeemachines
During the repair is always recommended to use, if possible, single parts rather than the correspondent as-
sembly.

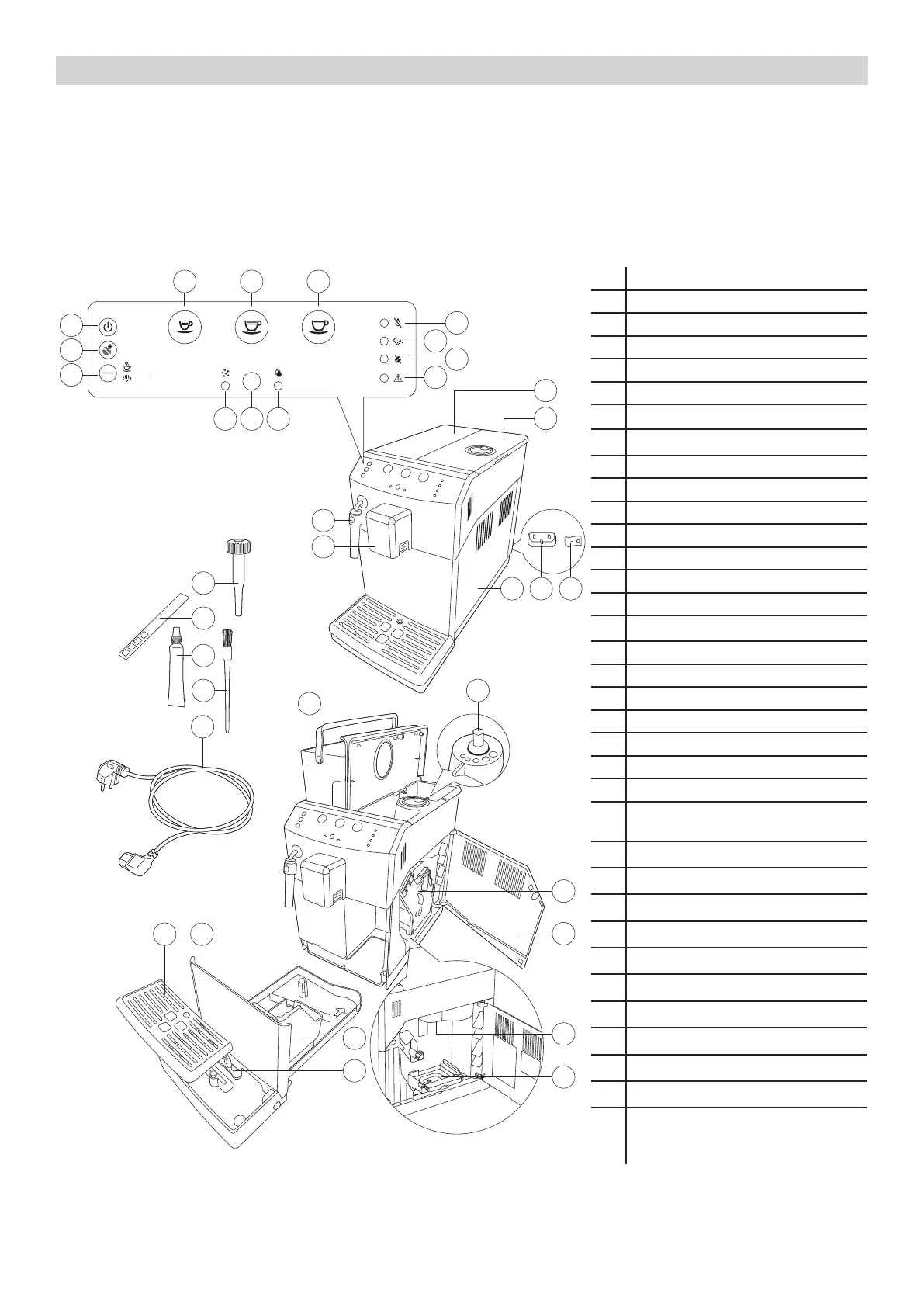

 1.8. ExternalmachinepartsPhilips3000V2CMF
2
1
X
X
Aroma plus
Hot water
Steam
Espresso
Memo Memo Memo
Calc
clean
Espresso lungo Coee
14
15
4
5
6
1 2 3
13
11
12
10
26
24
20
34
33
32
35
28
17
16
27
25
22
7 8 9
2930
31
19 18
23
21
1 ESPRESSO button
2 ESPRESSO LUNGO button
3 COFFEE button
4 ON/OFF button
5 AROMA STRENGTH button
6 HOT WATER/ STEAM button
7 Descaling cycle light
8 CALC CLEAN button
9 Rinse cycle light
10 General warning light
11 No coee light
12 Empty coee grounds container light
13 No water light
14 Coee dispensing spout
15 Classic milk frother
16 Lid of the water tank
17 Lid of the bean hopper
18 Main switch
19 Socket for cord
20 Service door
21 Grinder adjustment knob
22 Water tank
23 Brew group
24 Inside of maintenance door with clean-
ing instructions
25 Coee exit duct
26 Coee residues drawer
27 Drip tray full indicator
28 Coee grounds container
29 Drip tray
30 Drip tray cover
31 Cord
32 Cleaning brush
33 Grease
34 Water hardness tester
35 Multifunctional tool (grinder adjust-
ment key and coee duct cleaning
tool)
