PHILIPS 3000 V2 03 OPERATING LOGIC
5/6
3.7. Waterleveldetection(watertank)
“Water low” message (water reserve)
Function:

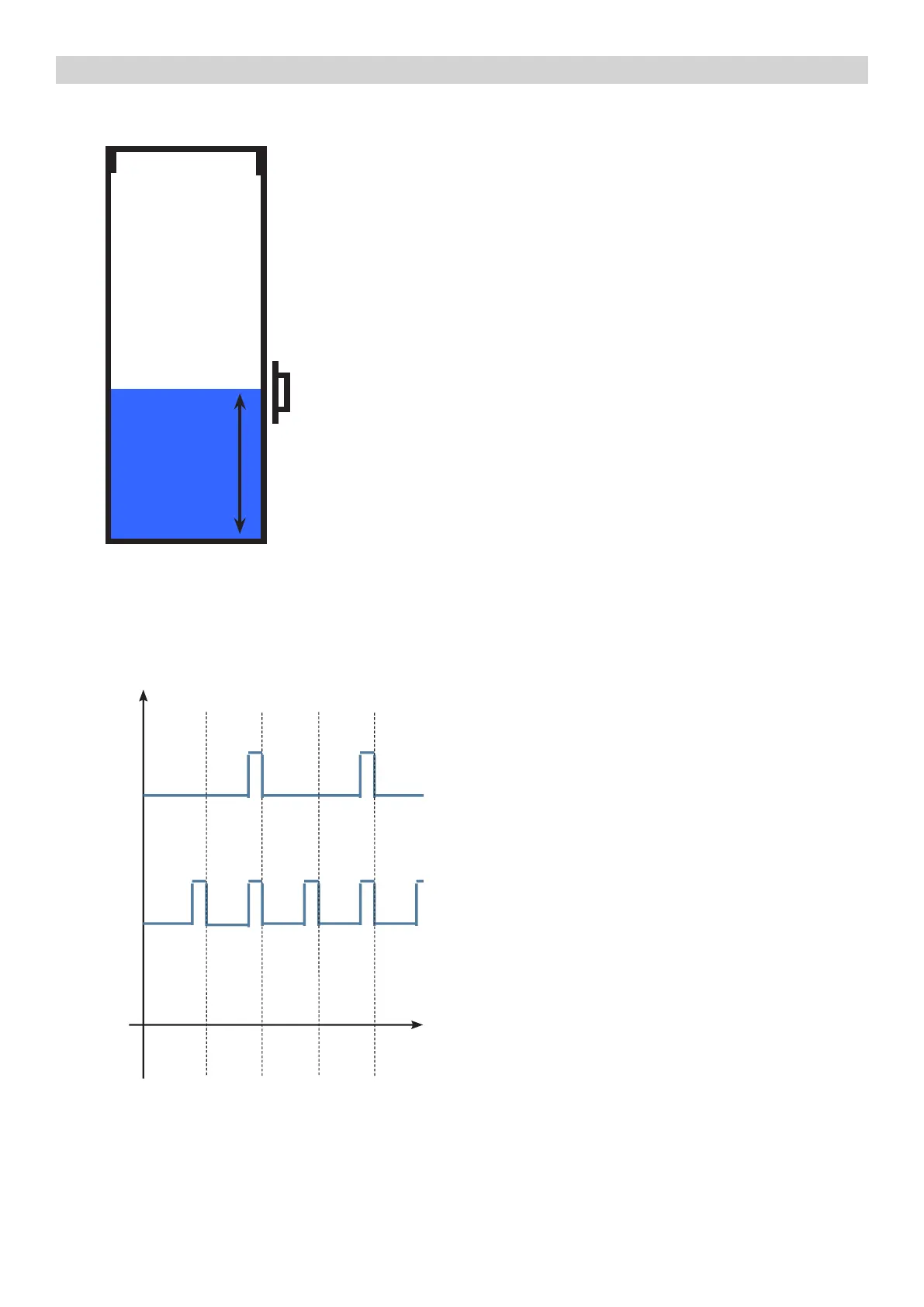

The water level is monitored by a capacitative sensor, located one
third of the way up the water tank wall.
If the electronics assembly detects, by means of the sensor,
that the amount of water in the tank has dropped below the
above mentioned level, a water reserve remains available for
the dispensing process underway (this will cover 200 ow meter
pulses).
The product dispensing process will then come to an end.
If a dispensing cycle ends after the sensor has been triggered (in
the reserve) then the display “Water low” continues to be displayed
during the following dispensing cycle.
200 puls.
Sensor
Water tank
“Descaling”–messagewithwaterlter
inserted
(appliances with display only)
The water hardness is set on the basis of the
regional water hardness analysis
(1, 2, 3, 4).
Filtero:
If the function is turned o the electronics
assembly monitors the ow meter pulses,
recording one pulse each turn.
Filteron:
If the function is turned on the electronics
assembly monitors the ow meter pulses,
recording one pulse every two turns.
“Changewaterlter”message
The electronics assembly uses the ow meter
impulses to keep track of the amount of water
which has owed through; after the specied
amount (set in accordance with the water
hardness level), the “Replace lter” message
appears.
 3.8. Descalingrequest
360°
1 rev
Number of pulses
Filter
on
Filter
o
Flowmeterpulses
