Technical Specifications, Connections, and Chassis Overview
EN 2 FTP2.2U AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1. Technical Specifications
2. Connections
3. Chassis Overview
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : Plasma
Screen size : 42” (106 cm), 16:9
: 50” (127 cm), 16:9
Resolution (HxV pixels) : 42”(SDI)-1024x768p
: 42”(FHP)-1024x1024i
: 50” - 1366x768p
Contrast ratio : 42” (SDI) - 3000:1
: 42” (FHP) - 1000:1
: 50” - 1000:1
Light output : 42” - 1000 cd/m
2
: 50” - 900 cd/m
2
Viewing angle (HxV degrees) : 160x160
Tuning system : PLL
Color systems : NTSC 3.58
Video playback : NTSC 3.58
Supported formats : 480p
: 576p (YprPb)
: 720p
: 1080i
: XGA (1024x768)
: WXGA (1280x768)
Channel selections : 125 presets
: Full cable
Aerial input : 75 ohm, F-type
1.1.2 Sound
Sound systems : AV stereo
: BTSC
Maximum power : 3 x 15 W
RMS
(int.)
1.1.3 Miscellaneous
Power supply:
- AC Power voltage : 108 - 132 V
AC
- AC Power frequency : 60 Hz.
Ambient conditions:
- Temperature range : +5 to +40 °C
- Maximum humidity : 90 % R.H.
Power consumption
- Normal operation : 42” - 450 W
: 50” - 600 W
- Standby : < 2 W
Dimensions (WxHxD) in cm : 42” - 109x75x10
: 50” - 128x88x10
Weight : 42” - 42 kg
: 50” - 58 kg
1.2 Connections
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Side I/O

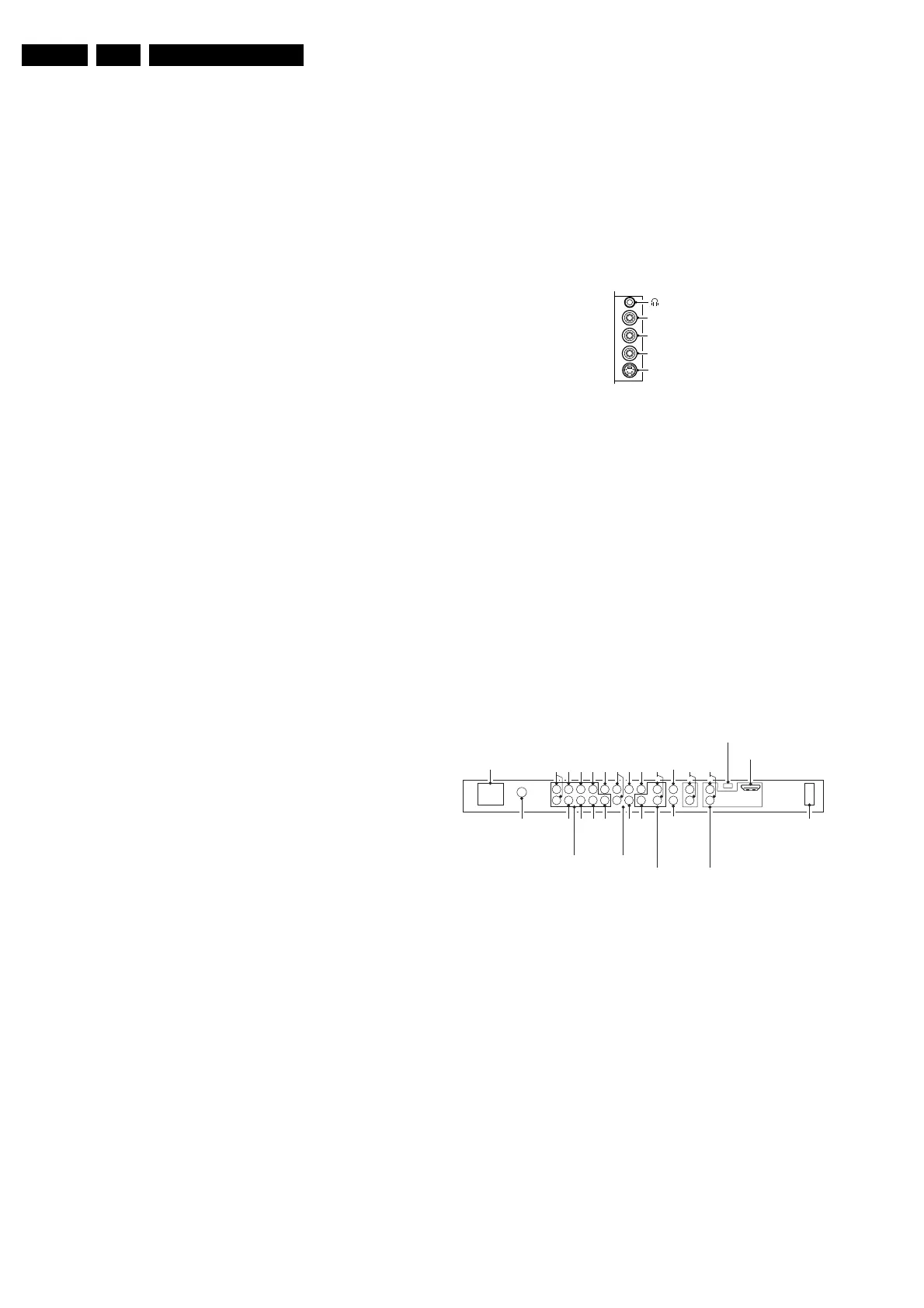

Figure 1-1 Side I/O connections
Headphone (Output)
Bk - Headphone 32 - 600 ohm / 10 mW ot
Cinch (Input)
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Hosiden: SVHS (Input)
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/75 ohm j
1.2.2 Rear Connections
Figure 1-2 Rear connections
Aerial - In
- - F-type Coax, 75 ohm D
AV2 Cinch: Video CVBS/YPbPr/RGB - In, Audio - In
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Bu - Video Pb/B 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr/R 0.7 V
PP
/ 75 ohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Ge - Video Y/G 1 or 0.7 V
PP
/ 75 ohm jq
Bk - Sync H 0 - 5 V jq
Bk - Sync V 0 - 5 V jq
AV2 S-Video: Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/75 ohm j
E_14620_022.eps
050404
SIDE I/O
SVHS
CVBS
R
AUDIO
L
19
1
18 2
E_14620_144.eps
140704
AERIAL IN
AUDIO
AV2 IN
SUBW OUT
CENTRE IN
SERVICE
HDMI
Pr/RPb/B
CVBS
H
Pb
VIDEO
S-VIDEO
Y/G V S-VIDEO AUDIO Pr Y
AV1 IN
MONITOR
OUT
HDMI IN
MAINS
(LCD SETS)
MAINS
(PLASMA SETS)
R
L
AUDIO
R
L
R
L
AUDIO
R
L
AUDIO OUT
R
L
