Philips 50PF9966 - CBA Locations; Chassis Overview

Technical Specifications, Connections, and Chassis Overview
EN 3FTP2.2U AA 1.
AV1 S-Video: Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 Vpp/75 ohm j
4 - Video C 0.3 Vpp/75 ohm j
AV1 Cinch: Video CVBS/YPbPr - In, Audio - In
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Ge - Video Y 1 V
PP
/ 75 ohm jq
Monitor out
Ye - Video CVBS 1 V
PP
/ 75 ohm kq
Wh - Audio L 0.5 V
RMS
/ 10 kohm kq
Rd - Audio R 0.5 V
RMS
/ 10 kohm kq
Cinch: Subwoofer - Out, Centre - In
Bu - Audio Center 0.5 V
RMS
/ 10 kohm jq
Bk - Audio Subw. 0.5 V
RMS
/ 10 kohm kq
Cinch: Audio - Out
Rd - Audio R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio L 0.5 V
RMS
/ 10 kohm kq
Cinch: HDMI Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Service connector (ComPair)
1 - SDA-S I2C Data (0 - 5 V) jk
2 - SCL-S I2C Clock (0 - 5 V) j
3 - Ground Gnd H
HDMI: Digital Video, Digital Audio - In
Figure 1-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD
20 - Ground Gnd H
1.3 Chassis Overview

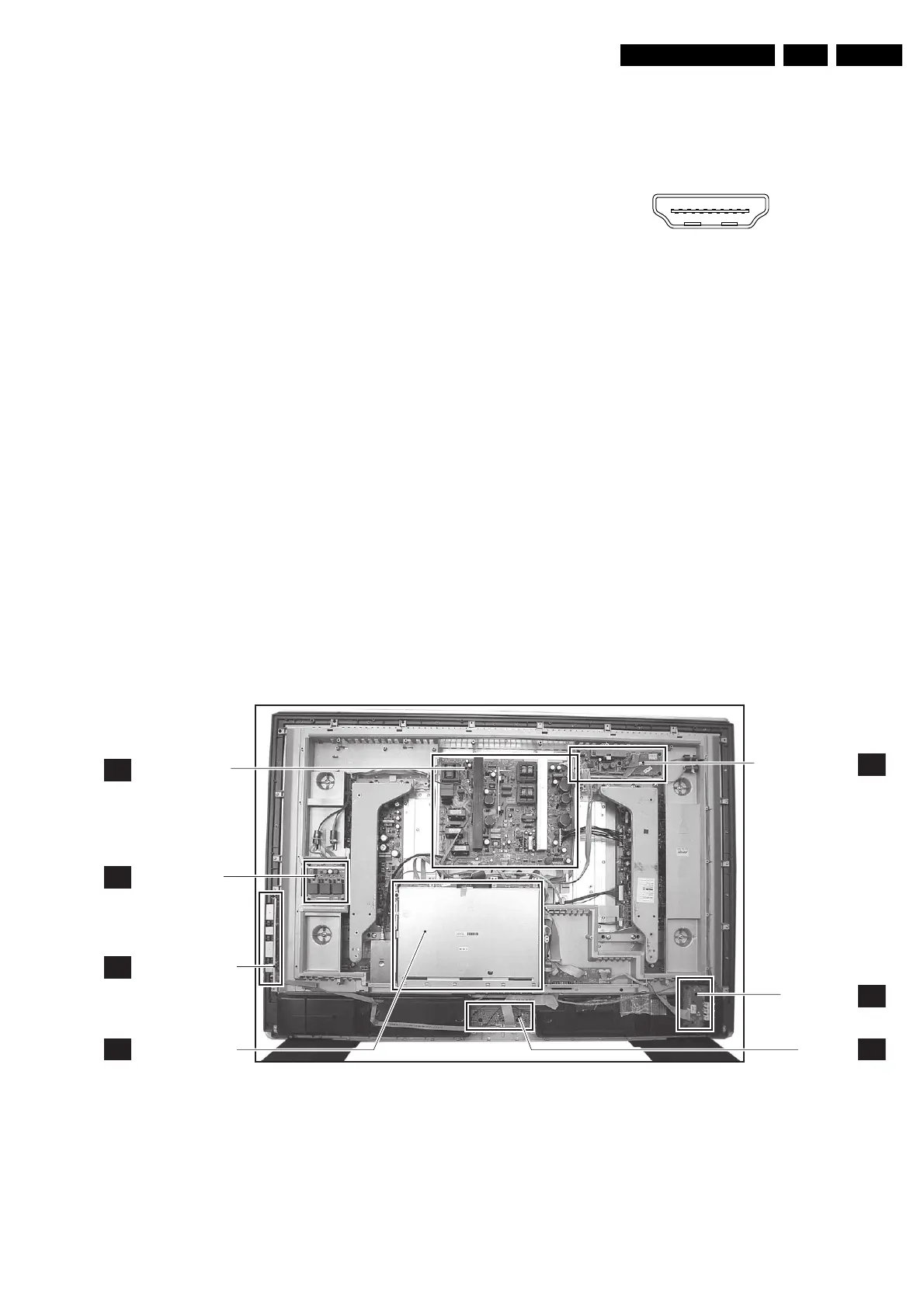

Figure 1-4 CBA locations
19
1
18 2
E_06532_017.eps
050404
D
E_14660_001.eps
150704
SIDE I/O PANEL
C
PDP AUDIO PANEL
A
PDP SUPPLY PANEL
(ONLY FOR FHP SETS)
J
LED PANEL
E
TOP CONTROL PANEL
AL
AMBI LIGHT PANEL
B
SMALL SIGNAL PANEL
