Philips Garbo - Component;Hdtv Pr,Y, Pb;Cr,Y, Cb

>
Pr,Y, Pb/Cr,Y, Cb

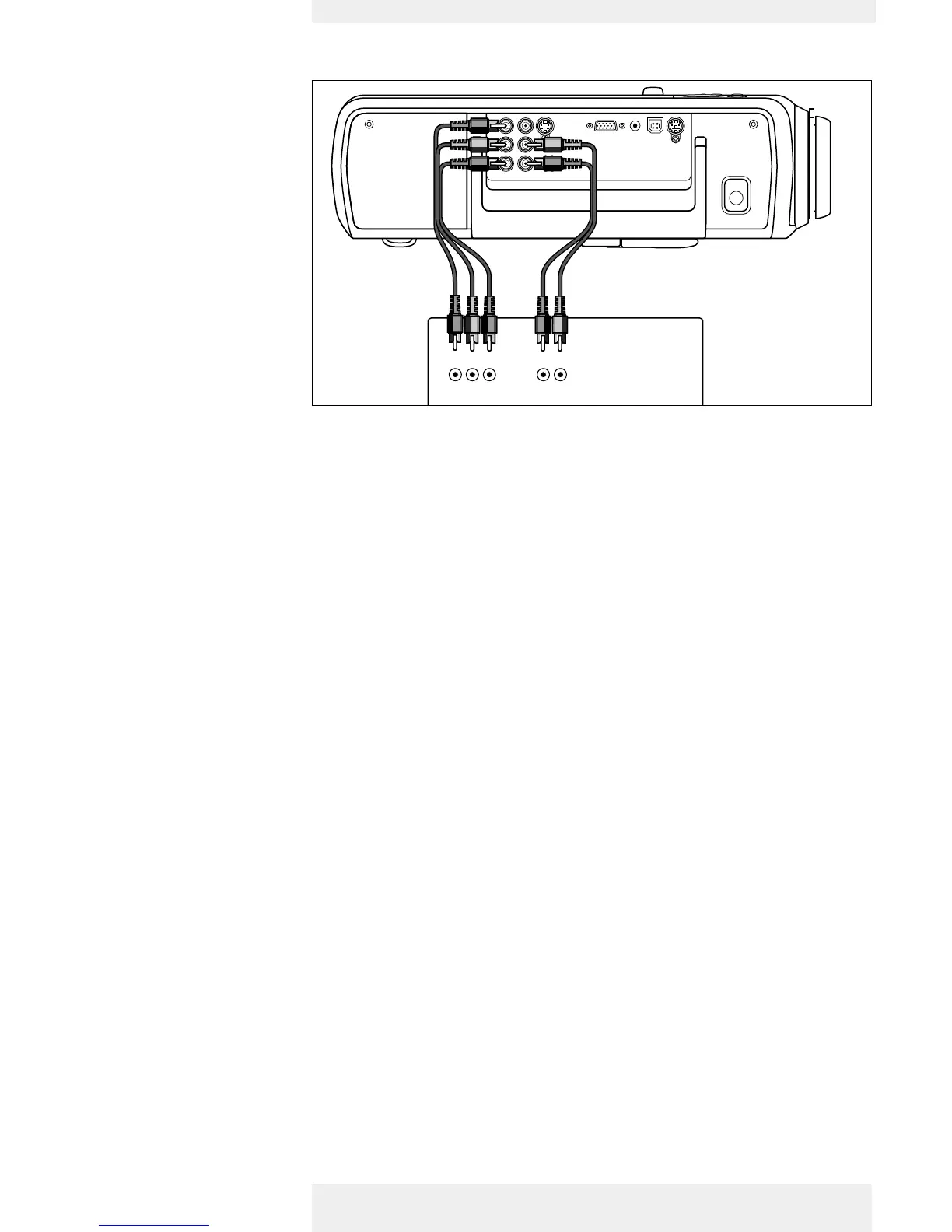

1 Connect the Component in sockets of the projector to the appropriate output sockets of
your Component- or HDTV-video equipment (Pr,Y, Pb / Cr,Y, Cb).
For this, use the audio/video connection cable supplied (1).
2 If required you can connect the Audio out L/R sockets of the Component- or HDTV-video
equipment to the Audio (in) L/R sockets of the projector.
For this, use an optional audio connection cable (2).
– Audio information from the Component- or HDTV-video equipment will be played via the
projector speaker.
Component/HDTV
Philips Home Cinema Projector English User guide Garbo 13
4. Installation
PS/2USB
Audio L
Audio R
Video
Y
Pb
Pr
G
B
R
S-Video
Computer
Audio in Computer
Component/HDTV
equipment
Cr
Pr
R
Y
Y
G
Cb
Pb
B
R
Audio
out
L
DVD player, Settop Box,
HDTV receiver, etc.
1
2
Connecting to video equipment
