EV Charge Control Basic
38 / 68
PHOENIX CONTACT 106377_en_04
7.4 Charging enabled with local release and locking

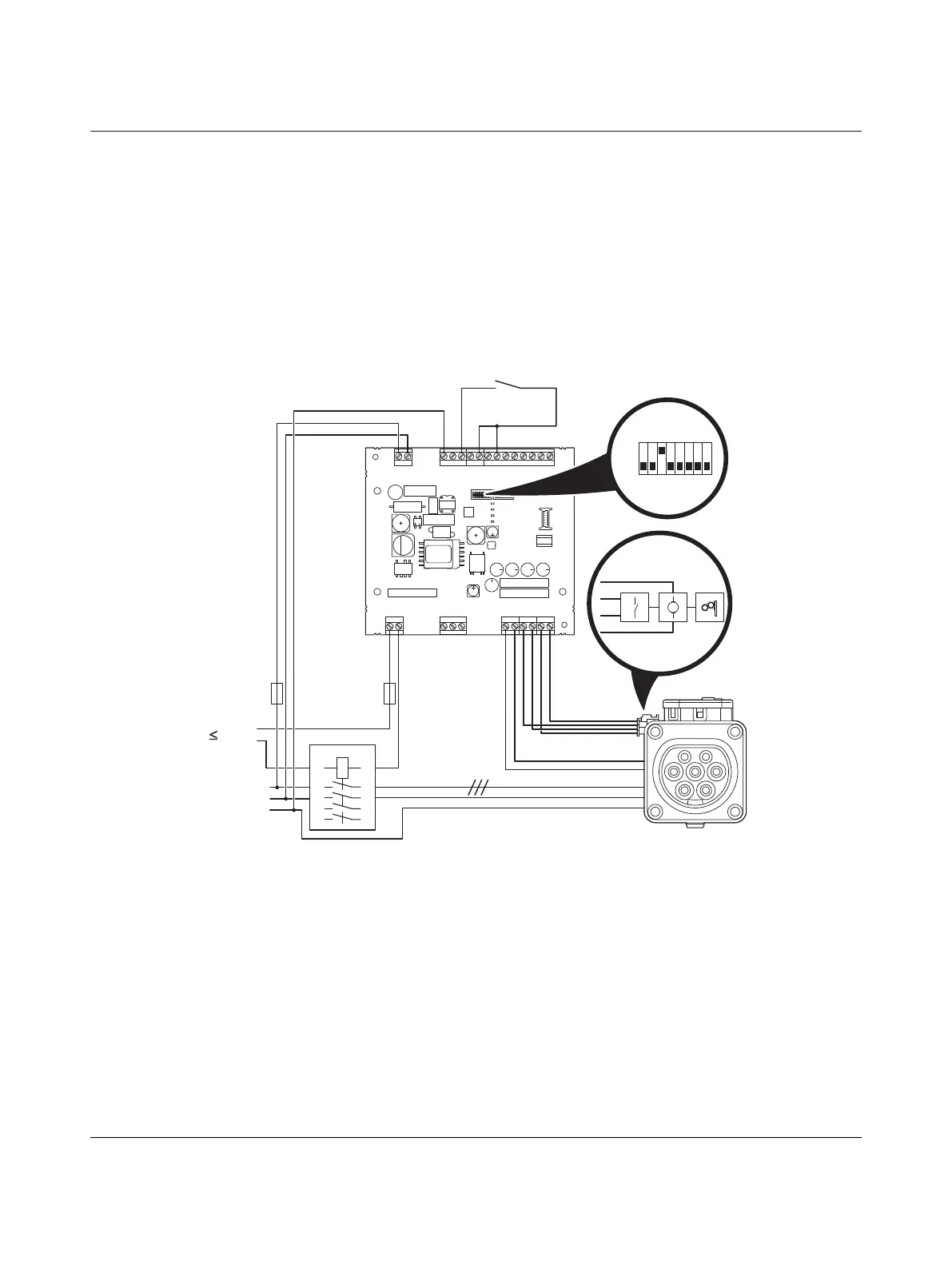

Figure 7-4 Connection example 4
S1/DIP 1 = OFF Charging station with Infrastructure Socket Outlet
S1/DIP 3 = ON Connection locking upon signal at digital input ML
Locking is carried out if switch k1 is closed and a charging connector is detected.
The charging process starts if the locking feedback is available, a vehicle is connected,
and status C is present.
L
N
PE
GND
12V
12Va
EN
XR
ML
CCR
IN
OUT
ERR
CHG
CON
C1
C2
A
B
SG
CP
PP
L1D
L2D
L0+
L0-
IO
Relay
R 485S
Outlet
Power
PWR
S1 S2
CON
ERR
CHR
M
RD
GN
YE
BN
N
PE
L, L1-L3
230 V
1
3 5
24
6
1A 2A
7
8
k1
1
S1
0
EV-CC-AC1-M3-CBC-...,
connection of case B
EV-T2M3SE12-3AC...
