Phoenix Contact EV Charge Control Basic User Manual

Startup
106377_en_04 PHOENIX CONTACT 19 / 68
Fitting the covering hood

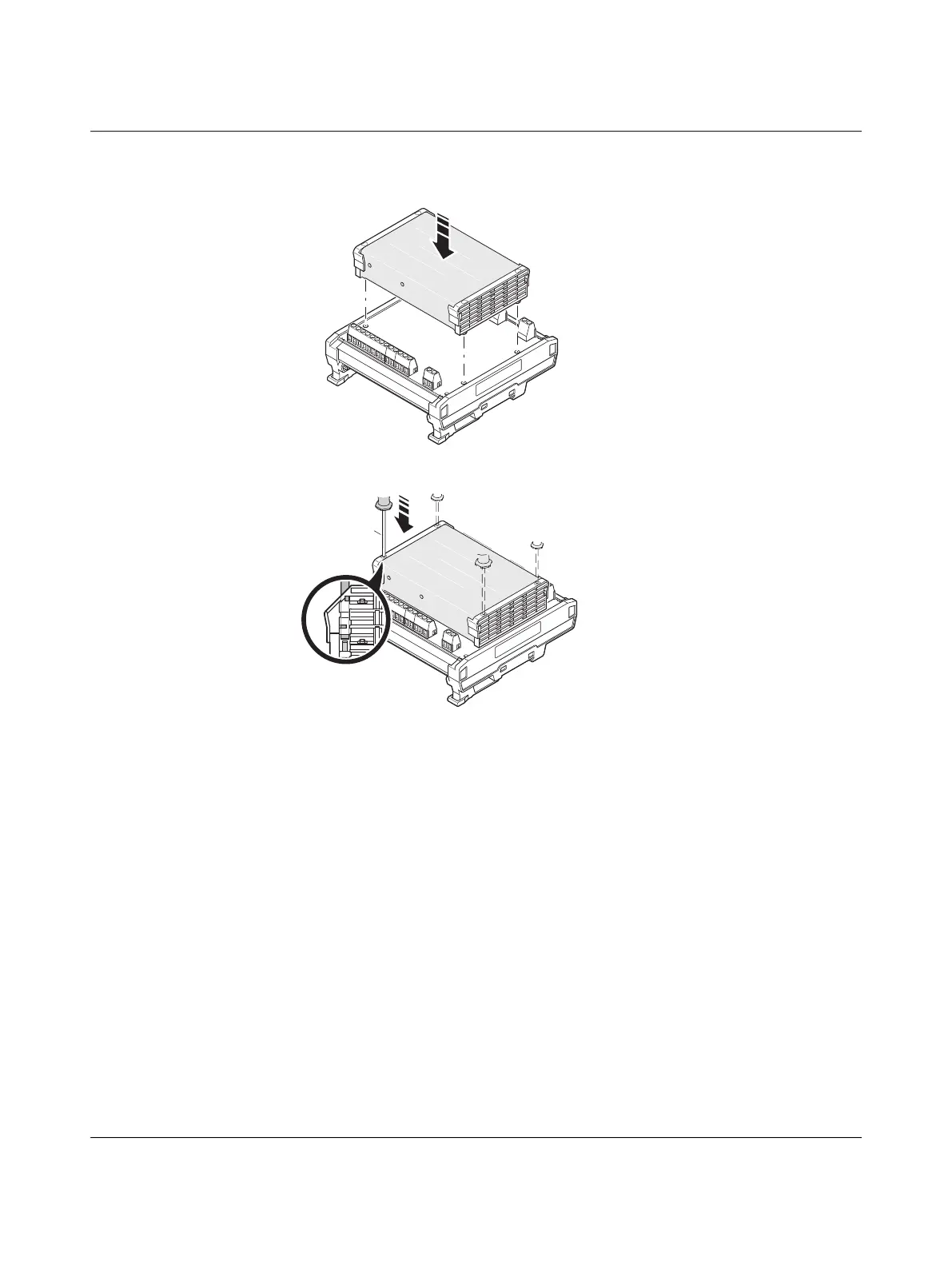

Figure 4-4 Fitting the covering hood
Figure 4-5 Latching the covering hood
For assembly, proceed as follows:
1. Fit the covering hood so that it engages with a click.
2. To latch the lateral elements, push the four safety elements into the PCB.
Recommended tool: prong ø 3 mm
Ø3mm
