6
IS16
English

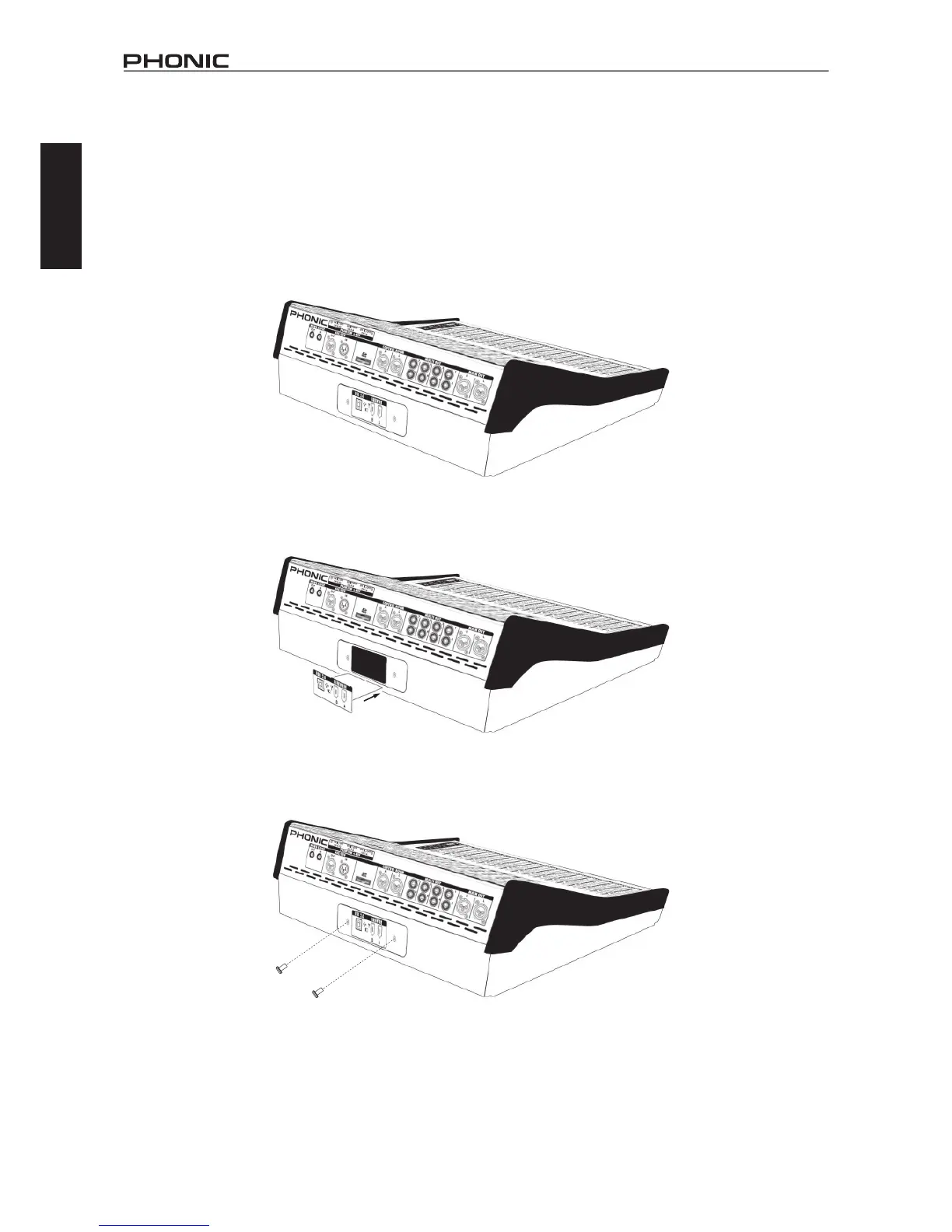

Installing the Optional mREC Expansion Card
1. First ensure all power is off on your IS16 mixer and the power cable is disconnected.
2. Remove the included 16x16 FireWire / USB card on the IS16 by unscrewing the two support screws.
3. Remove the free end of the ribbon cable located within the expansion card slot.
4. Connect the ribbon cable to the appropriate connection on the expansion card.
5. Insert the expansion card into the expansion card slot and screw into place.
