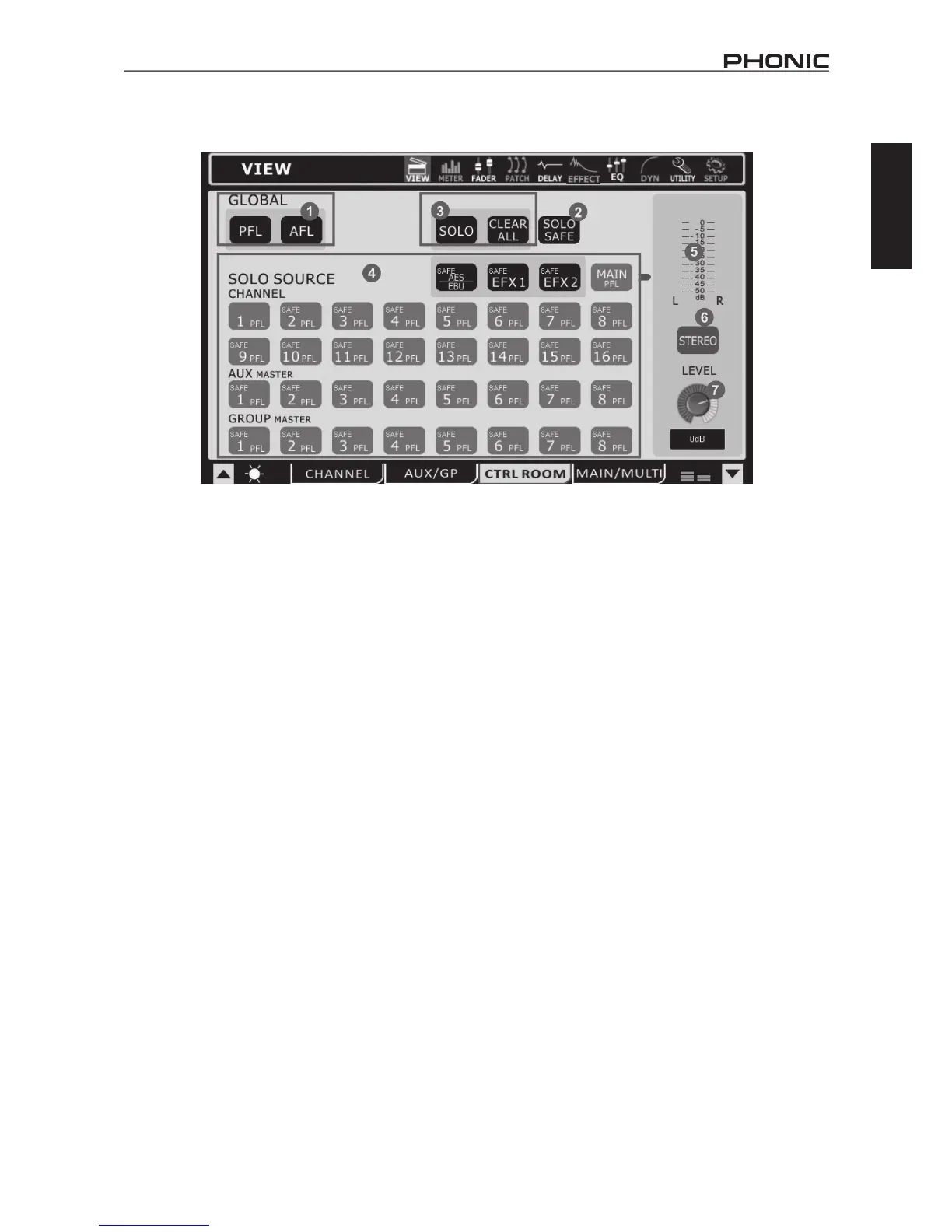

1.3 Control Room Tab
1.3.1 Global Buttons
These buttons allow users to turn all of the Control Room source
signalstoeitherAFLorPFLs.
1.3.2 Solo Safe Button
Push the Solo safe button to select solo safe on any of the solo
sources(1.3.4).Hereuserswillbeabletoselectwhichchannels
they wish to activate the solo safe function on. Channels that are
set to solo safe will be sent to the Main stereo mix regardless of
any Solos that are activated on other channels. The SAFE indicator
within the solo source buttons will light up when a Solo Safe is
activated on a channel.
1.3.3 Solo & Clear All Buttons
Pushing the Solo button will allow users to ‘solo’any of the
channelsinthe‘SoloSource’section(1.3.4).Aredheadphone
icon will appear within the button when a Solo is activated on a
mix.The‘ClearAll’buttonthataccompaniestheSolobuttonwill
clear all currently active solos
1.3.4 Solo Source Buttons
Push any of these buttons to select whether the signal taken from
theappropriate channelinputs,AUXsor Groups,Main orEFX
processor will be pre-fader listens (PFLs) or after-fader listens
(AFLs).AFLswillbeblue,whilePFLsaregreen.Whensoloed,a
red headphone icon will be displayed within the button. The word
SAFE within the icon indicates that the channel has had a safe
solo applied.
1.3.5 Control Room Level Meter
ThislevelmeterdisplaysthenaloutputsignallevelfortheControl
Room outputs on the rear of the IS16.
1.3.6 Control Room Mono On/Off Button
Pushing this button will combine the left and right signals of the
Control Room mix to create a dual mono output signal. When
deactivated,theControlRoomsignalwillbestereo.
1.3.7 Control Room Trim Control
Thiscontroladjuststhenaloutputlevelofthecontrolroommix,
the signal of which is taken from the individual solos activated
on channels. This control also affects the output level of the
headphonesmix,whichcanthenbecontrolledfurtherbyusing
thePhonescontrolbesidetheheadphonesoutputjack.
