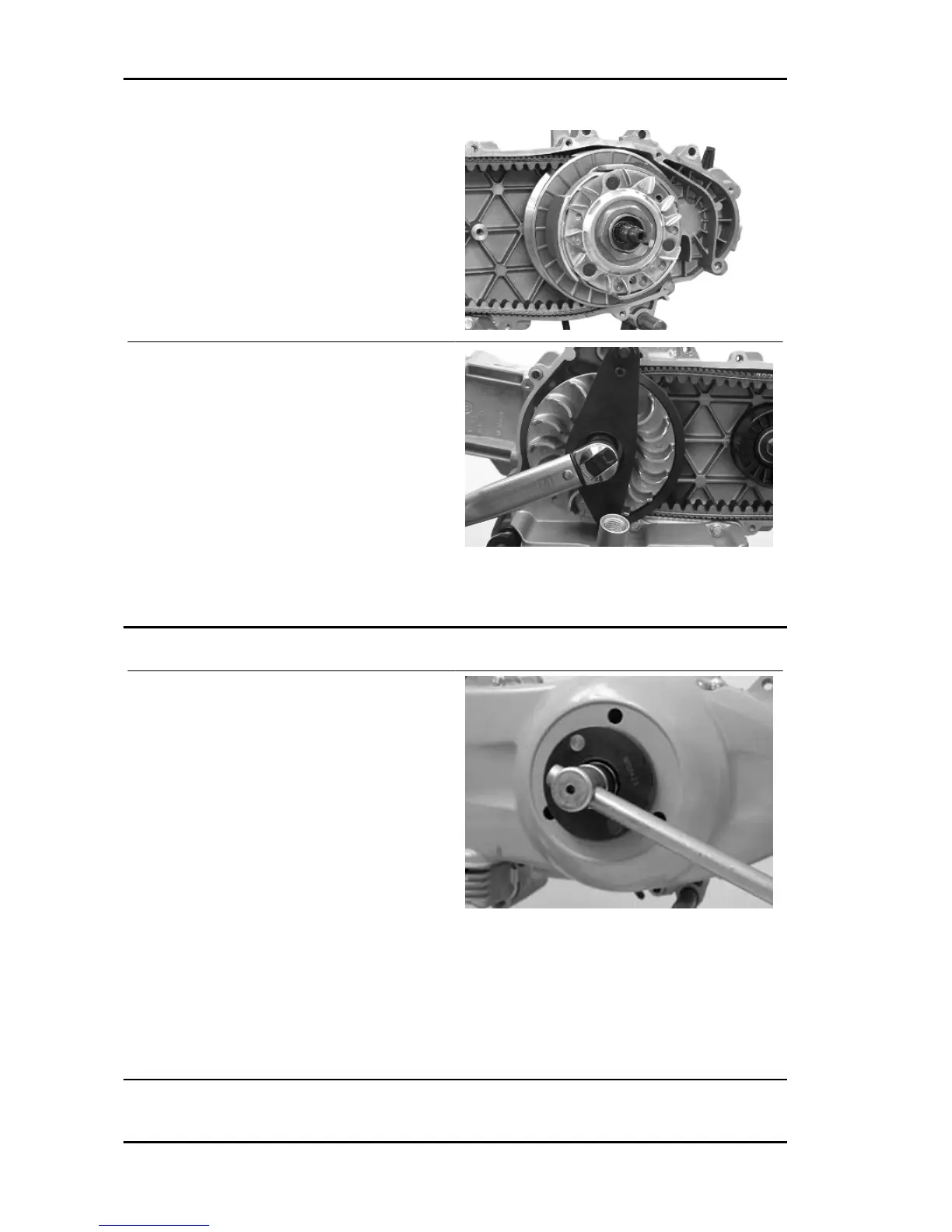

- Fit the steel shim in contact with the bushing and
the stationary drive pulley.
- Install the appropriate tool as described in the re-
moval phase.
-Tighten the nut with washer to the prescribed tor-
que.
Specific tooling
020626Y Driving pulley lock wrench
Locking torques (N*m)
Drive pulley nut 75 ÷ 83
Refitting the transmission cover
- Check the presence of the 2 centring dowels and
the correct installation of the sealing gasket for the
oil sump on the transmission cover.
- Replace the cover tightening the 10 screws at the
specified torque.
- Refit the oil loading cap/bar.
- refit the steel washer and the driven pulley nut.
- Tighten the nut to the prescribed torque using the
lock wrench and the torque wrench tools.
- Replace the plastic cover.
Specific tooling
020423Y driven pulley lock wrench
Locking torques (N*m)
Transmission cover screws 11 ÷ 13 Driven pul-
ley shaft nut 54 ÷ 60
End gear
Engine MP3 250 i.e.
ENG - 16
