This section è is devoted to the description of the braking system components.

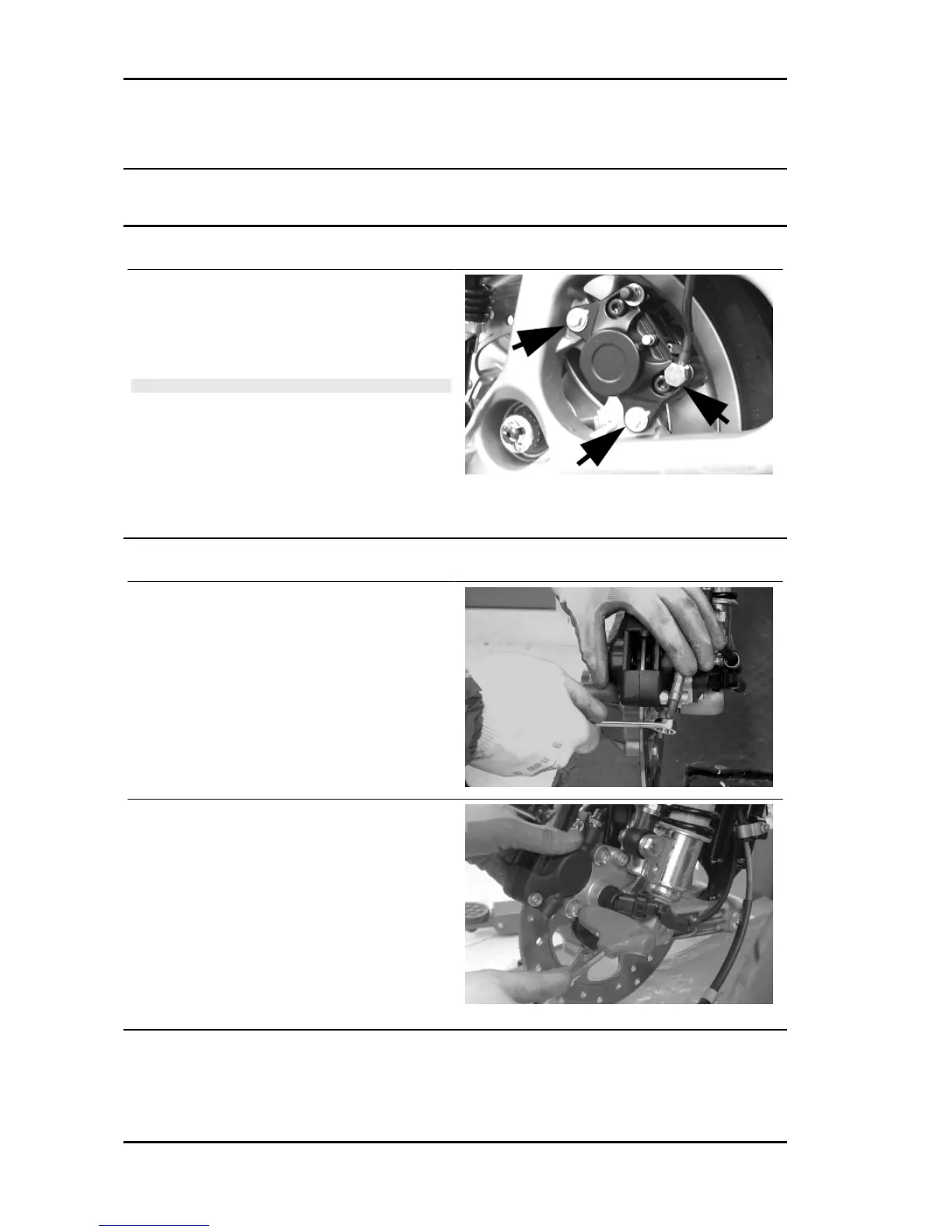

Rear brake calliper
Removal
- Remove the muffler.
- Remove the two rear brake calliper devices fas-
tening them to the support as shown in the photo-
graph.
N.B.
IF IT IS NECESSARY TO REPLACE OR SERV-
ICE THE BRAKE CALLIPER, BEFORE REMOV-
ING THE FITTINGS FIXING THE CALLIPER TO
THE SUPPORT BRACKET, FIRST LOOSEN
THE OIL HOSE FITTING AFTER HAVING EMP-
TIED THE SYSTEM OF THE CIRCUIT BEING
EXAMINED.
Removal
Place a container under the calliper, unscrew the
tube-calliper joint and empty the braking system.
For easy draining of the braking system fluid, open
the pump reservoir cap.
Loosen the two screws indicated in the figure and
remove the calliper from the support.
When refitting, tighten the two calliper retainers to
the prescribed torque.
Locking torques (N*m)
Screw tightening calliper to the support 24 ÷ 27
Braking system MP3 250 i.e.
BRAK SYS - 2
