Parking brake

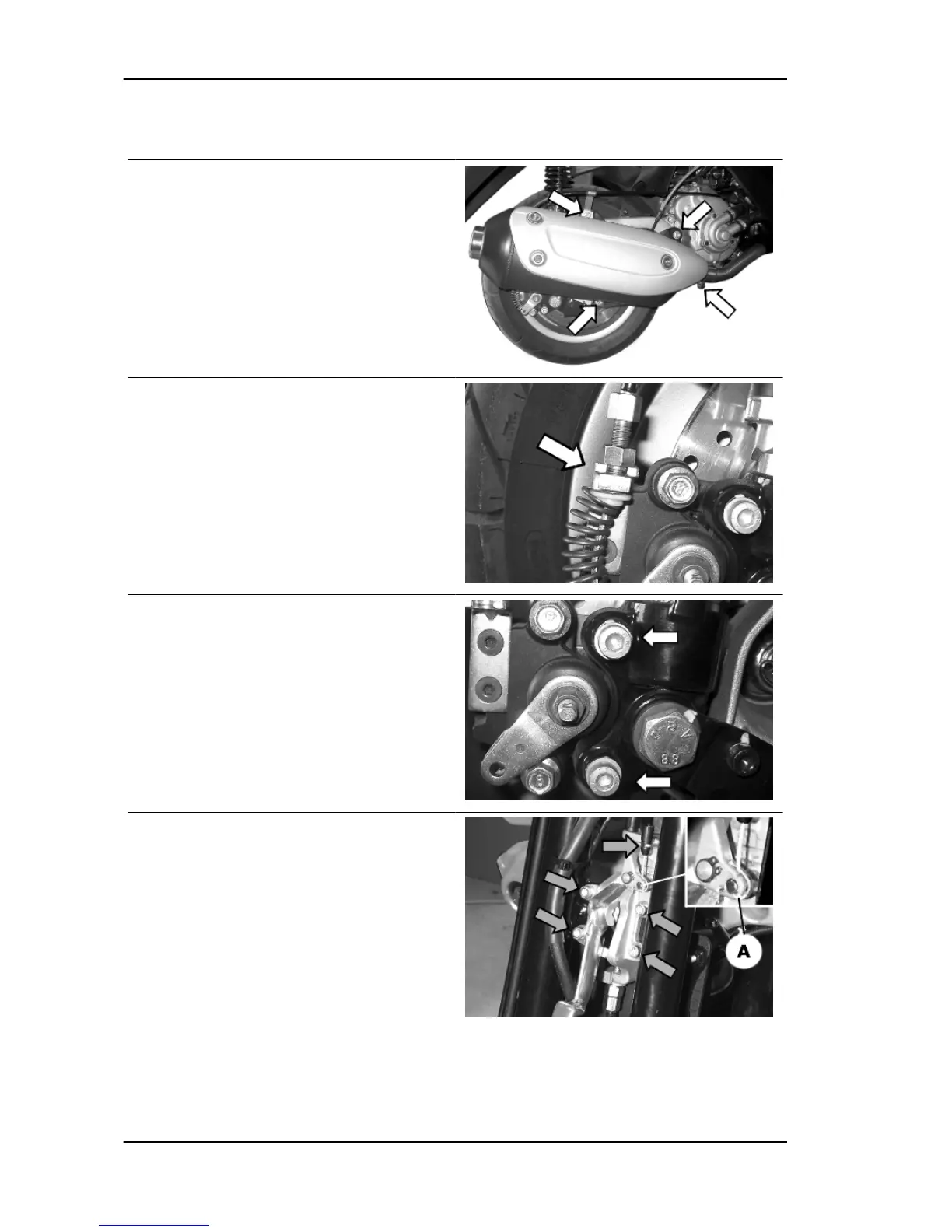

Remove the muffler loosening the 3 screws and
the strap on the drainage tube indicated in the
photograph.
When refitting, place the parking brake flexible
transmission retaining strap correctly.
Loosen the transmission set screw and release the
cable from the calliper.
Remove the two fixing screws of the mechanic
calliper and remove the calliper. To check calliper
components, refer to the chapter on the tilt locking
calliper.
When refitting, secure to the specified torque.
Locking torques (N*m)
Screw tightening calliper to the support 20 ÷ 25
After removing the shield back plate, remove the
engaging cable for the safety mechanism remov-
ing it from its fitting.
Remove the 4 screws shown in the figure.
When refitting, pay attention to insert the metallic
cable peg in the fitting marked «A» as indicated in
the enlarged photograph.
Braking system MP3 250 i.e.
BRAK SYS - 6
