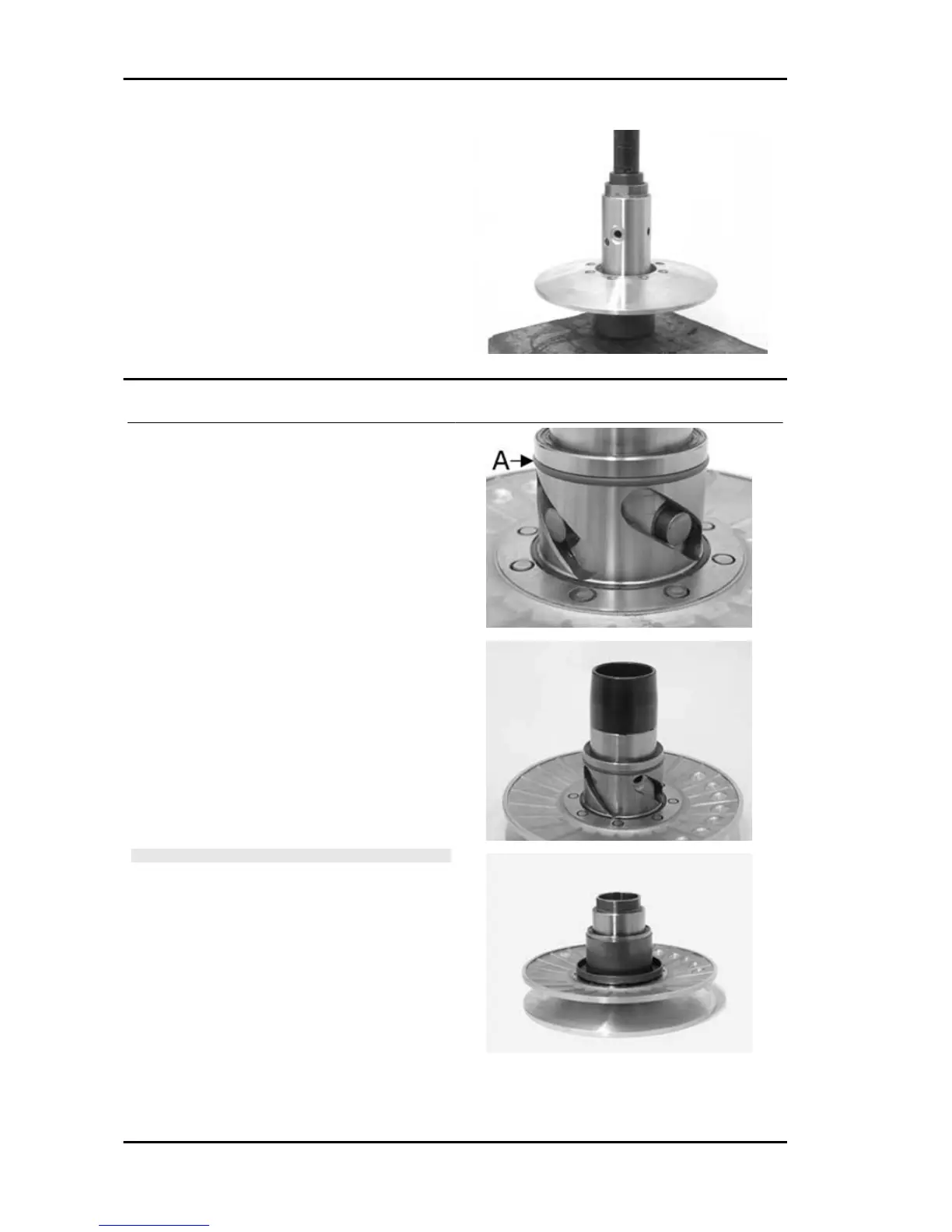

Refitting the driven pulley
- Insert the new oil guards and O-rings on the mov-
able half-pulley.
- Lightly grease the O-rings «A» shown in the fig-
ure.
- Fit the half-pulley over the bushing using the spe-
cific tool.
- Check that the pins are not worn and proceed to
refitting them in their slots.
- Refit the torque server closure collar.
- Using a curved-spout grease gun, lubricate the
driven pulley unit with approximately 6 gr. of
grease. Apply the grease through one of the holes
in the bushing until it comes out through the hole
on the opposite side. This operation is necessary
to avoid the presence of grease beyond the O-
rings.
N.B.
THE TORQUE SERVER CAN BE GREASED
WHETHER WITH BEARINGS FITTED OR
WHEN THEY ARE BEING REPLACED; UNDER-
TAKING THE OPERATION WHEN THE BEAR-
INGS ARE BEING SERVICED MIGHT BE EAS-
IER.
Specific tooling
020263Y Sheath for driven pulley fitting
Recommended products
AGIP GREASE SM 2 Grease for the tone wheel
revolving ring
Engine MP3 250 i.e.
ENG - 10
