Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
Locking torques (N*m)
Stator assembly screws (°) 3 ÷ 4
Refitting the flywheel cover

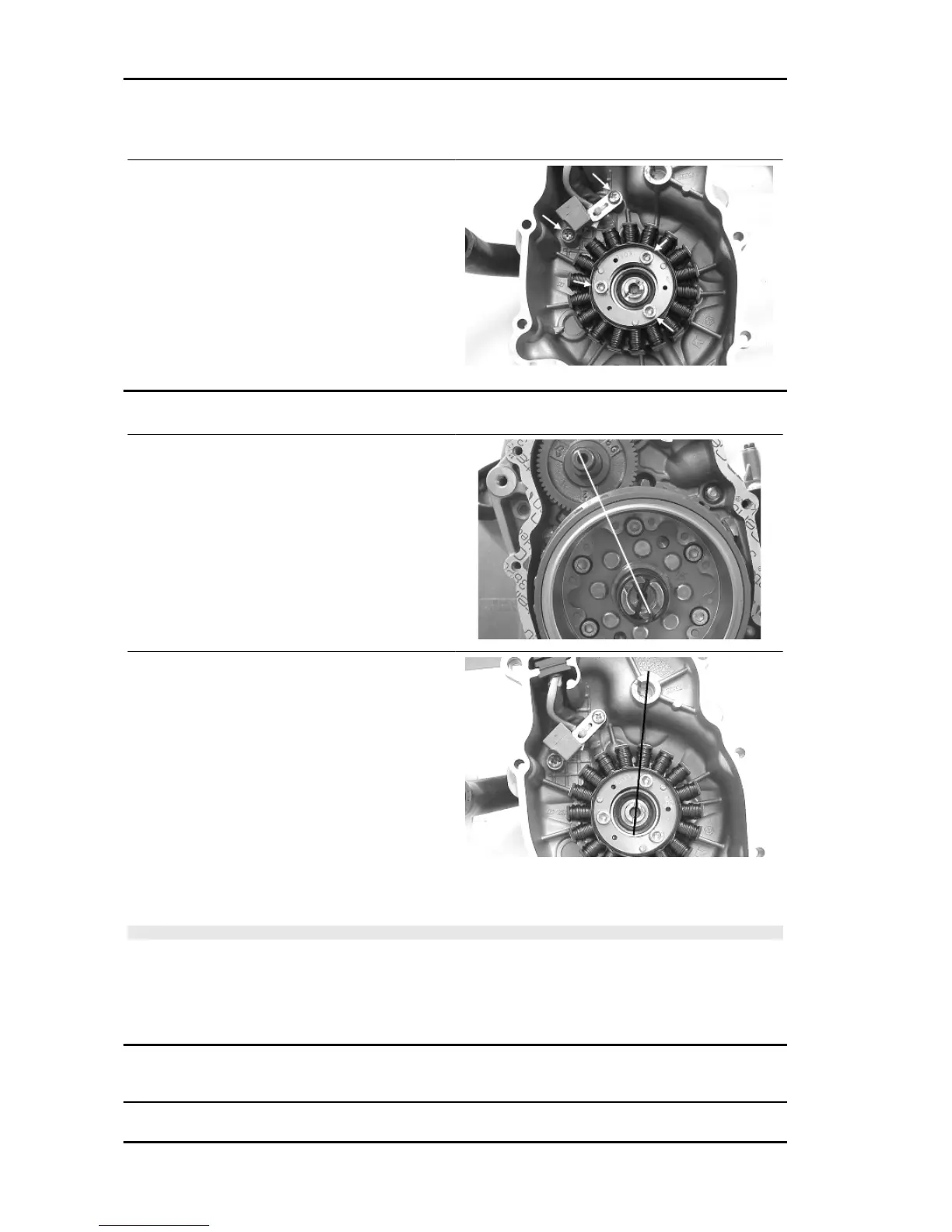

- Position the spline clip on the crankshaft and ori-
ent the end as shown in the figure.
- Orient the water pump shaft with reference to the
transmission gear seat as shown in the photo.
- Refit the cover over the engine and tighten the screws to the prescribed torque.
- Carry out the steps in the reverse order from the dismantling procedure.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL CONNECTOR. MAKE SURE THE CEN-
TRING DOWELS ARE PRESENT.
Locking torques (N*m)
Flywheel cover screws 11 - 13
Flywheel and starting
Engine MP3 250 i.e.
ENG - 24
