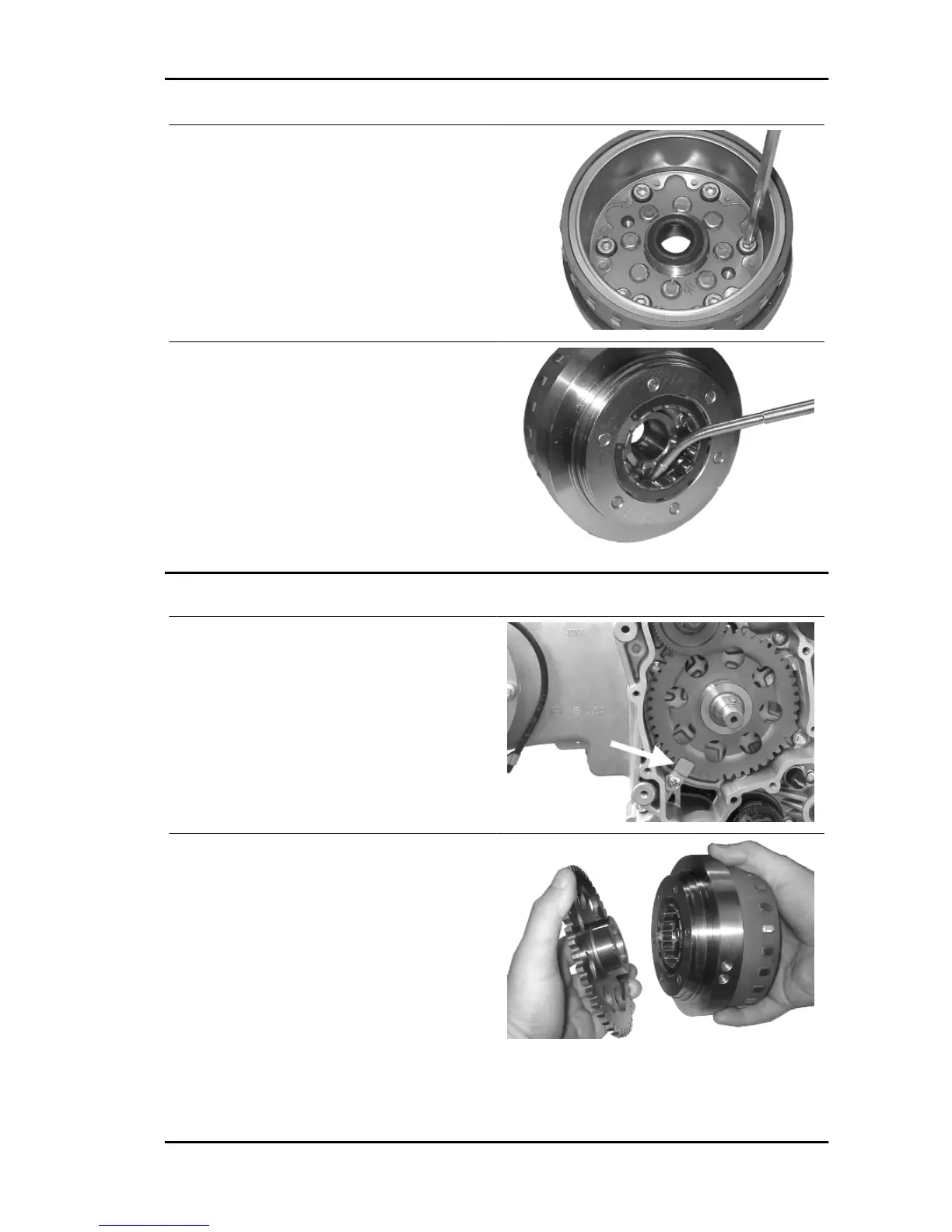

- Fit the freewheel on the magneto flywheel making
sure that the ground side is in contact with the fly-
wheel itself, i.e. with wheel seeger ring visible.
- Lock the six clamping screws in criss-cross fash-
ion to the prescribed torque.
Locking torques (N*m)
Screw fixing freewheel to flywheel 13 ÷ 15
- Oil the free wheel "rollers".
Refitting the flywheel magneto
- Remove the freewheel retaining plate indicated
in the photograph
- Remove the transmission gear and the freewheel
- Insert the free wheel on the flywheel as shown in
the photo
- Then refit the flywheel with free wheel and trans-
mission gear
MP3 250 i.e. Engine
ENG - 27
