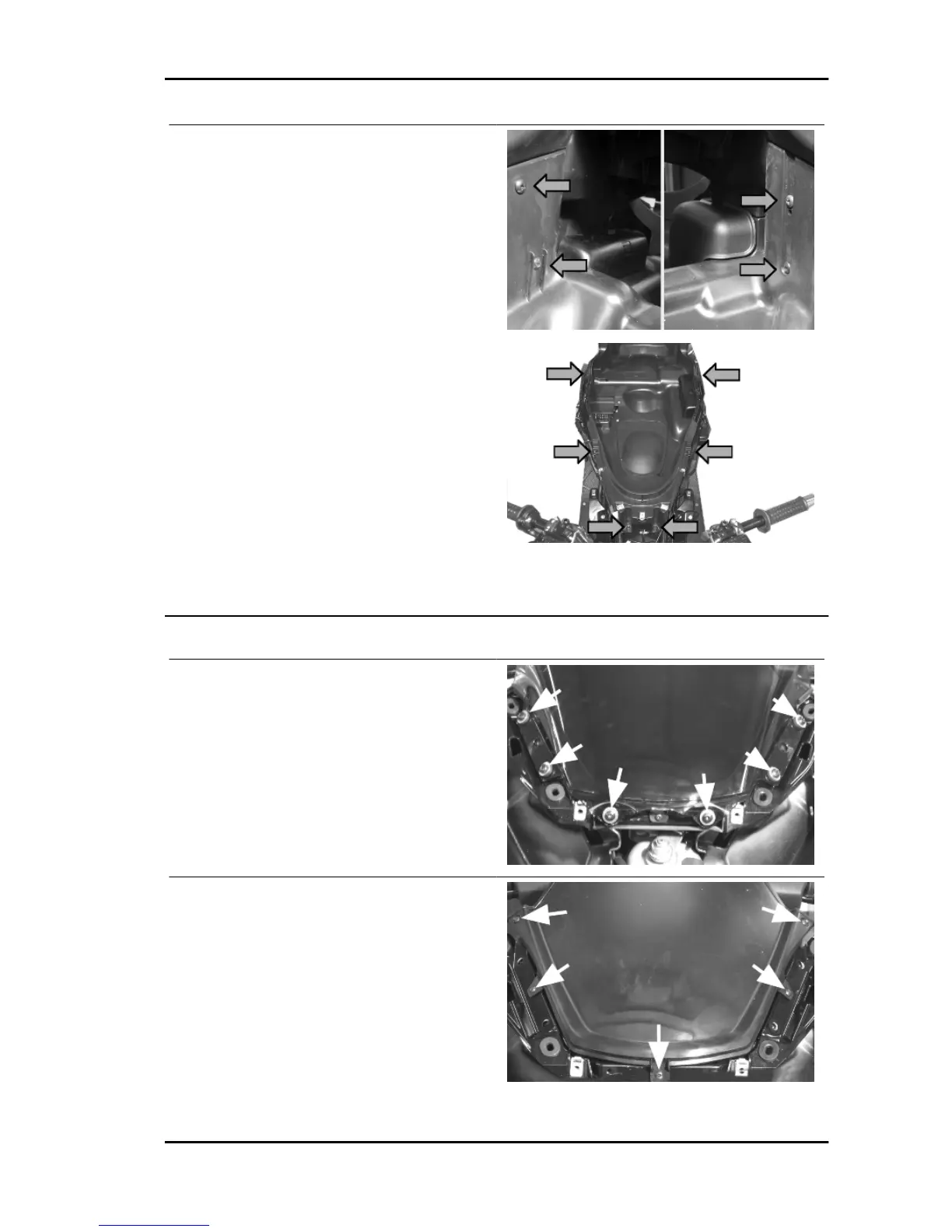

Remove the rear case internal screws indicated in
the photograph, to detach the supporting plates of
the voltage regulator on one side and the saddle
opening switch on the other.
Remove the six upper screws.
Release the case latch.
Remove the case light front and rear switch con-
nections, the HV coil, the battery leads and the
fuse-box.
See also
Frame central cover
spoiler
Remove the shield central finish; then, screw the
six screws indicated in the figure.
Remove the five screws indicated in the figure.
See also
MP3 250 i.e. Chassis
CHAS - 11
