35. Horn
36. Horn button
37. Pressure sensor
43. Parking electronic control unit
51. Electric fan
52. Remote control for electric fan

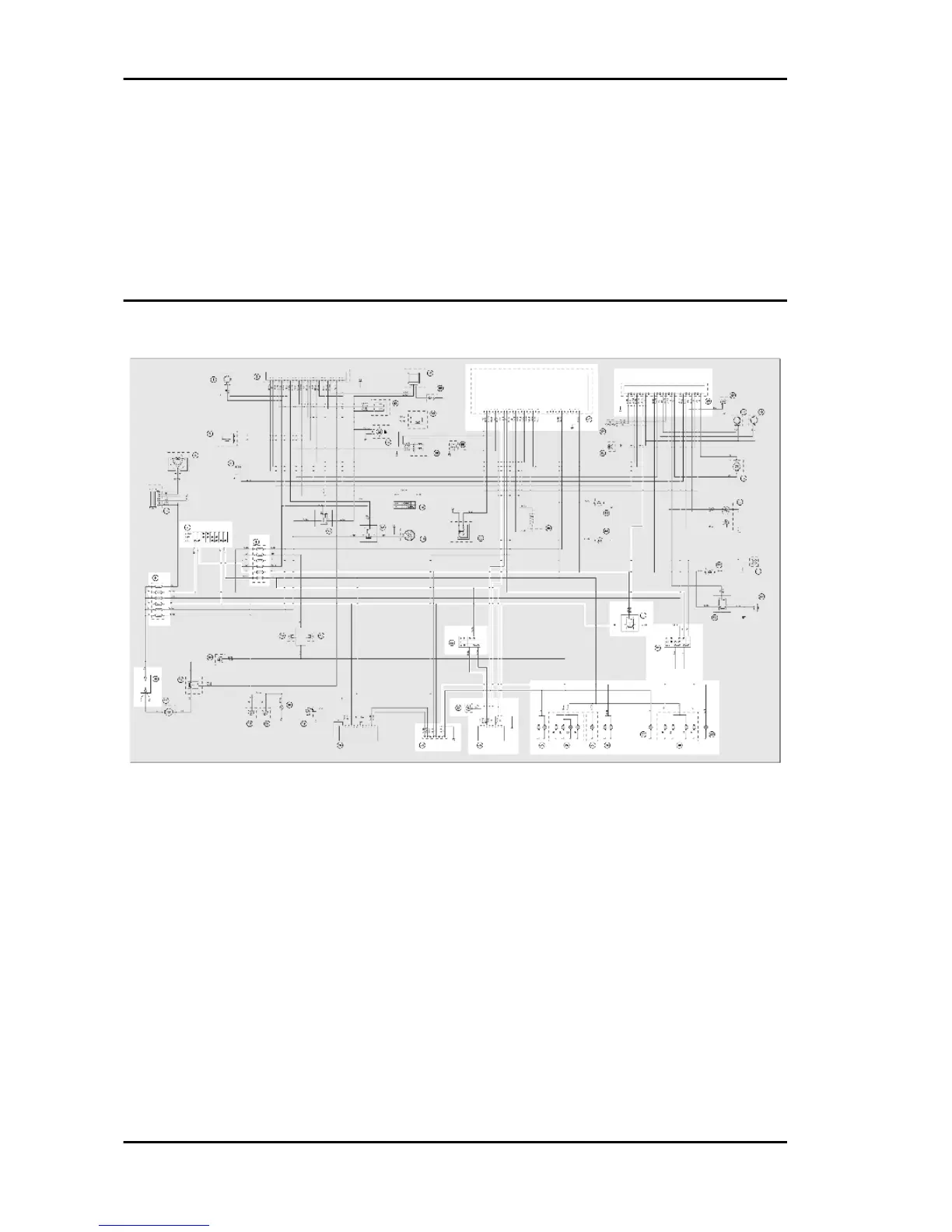

Lights and turn indicators
KEY
7. Key switch
8. Fuse-box
9. Fuse-box
10. Battery
21. Wiring for antitheft device
22. Turn indicator switch
23. Hazard switch
24. Turn indicator control device
25. Left rear turn indicator bulbs
26. Rear headlight assembly
A. Tail light
B. Stop light
Electrical system MP3 250 i.e.
ELE SYS - 14
