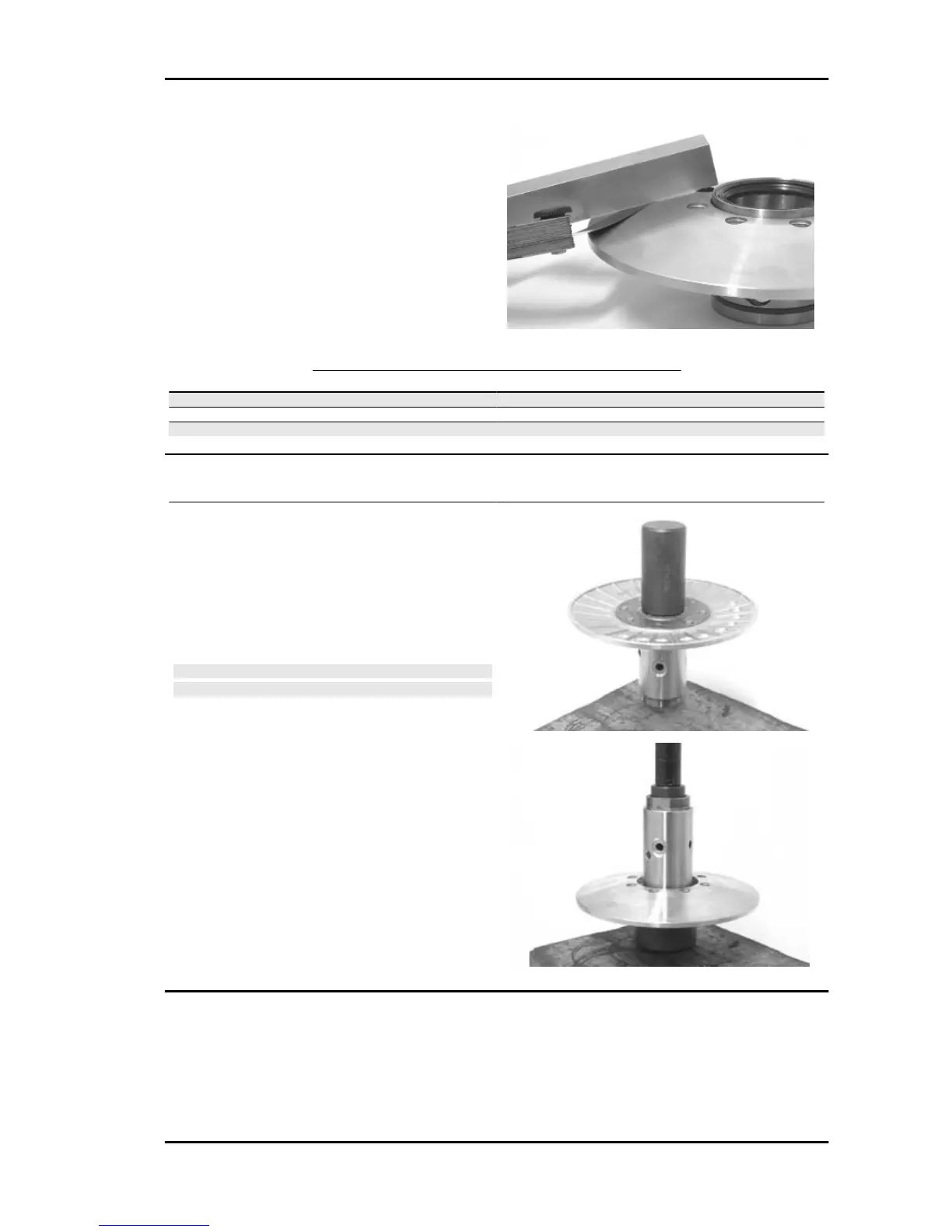

MOVABLE DRIVEN HALF-PULLEY DIMENSIONS
Specification Desc./Quantity
Wear limit 0.3 mm
standard diameter Diameter 41.000 - 41.035 mm
maximum allowable diameter Ø 41.08 mm
Refitting the driven half-pulley bearing
- Support the pulley bushing adequately from the
threaded side using a wooden surface.
- Fit a new roller sleeve as in the figure.
- For the fitting of the new ball bearing, follow the
example in the figure using a modular punch.
Fit the snap ring
WARNING
N.B.
FIT THE BALL BEARING WITH THE VISIBLE SHIELD
Specific tooling
020376Y Adaptor handle
020375Y Adaptor 28 x 30 mm
020424Y Driven pulley roller casing fitting
punch
B 125-250 Engine
ENG - 113
