PIAGGIO B 250 - Fuel Tank

Helmet bay

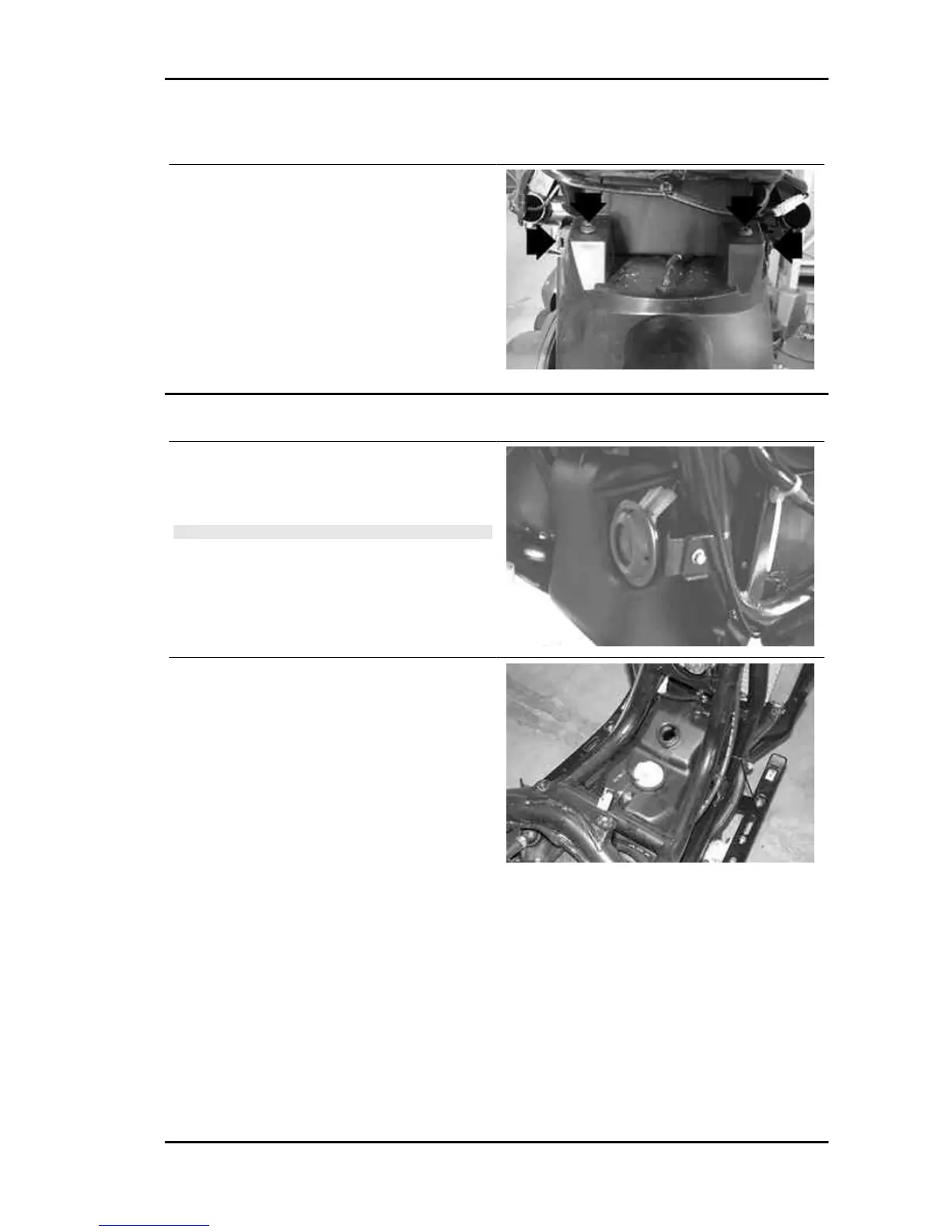

- Remove the side fairings; - Disconnect the elec-
trical connections; - Undo the 8 fixing screws, 4 of
which are inside the compartment; - Remove the
license plate holder support by undoing the 4 fixing
screws shown in the figure and disconnecting the
electrical cable harness; - Remove the helmet
compartment.
Fuel tank
- Remove the shield back plate.
- Remove the front wheel housing.
- Remove the footrest.
N.B.
THIS OPERATION SHOULD PREFERABLY BE PER-
FORMED WITH THE TANK EMPTY.
- Separate the electrical connections of the fuel
gauge and disconnect the fuel supply line and tank
breather;
- Undo and remove the screw fixing the horn
shown in the upper figure after disconnecting the
electrical connection;
- Remove the toggle handles by loosening the 4
retaining screws;
- Remove the support bracket by loosening the 2
retaining screws of the bracket at the frame;
- Undo the two screws fixing the tank to the chas-
sis;
- Remove the tank by tilting it downwards and pull-
ing out from below.
