Circuit diagram
ENGINE 250

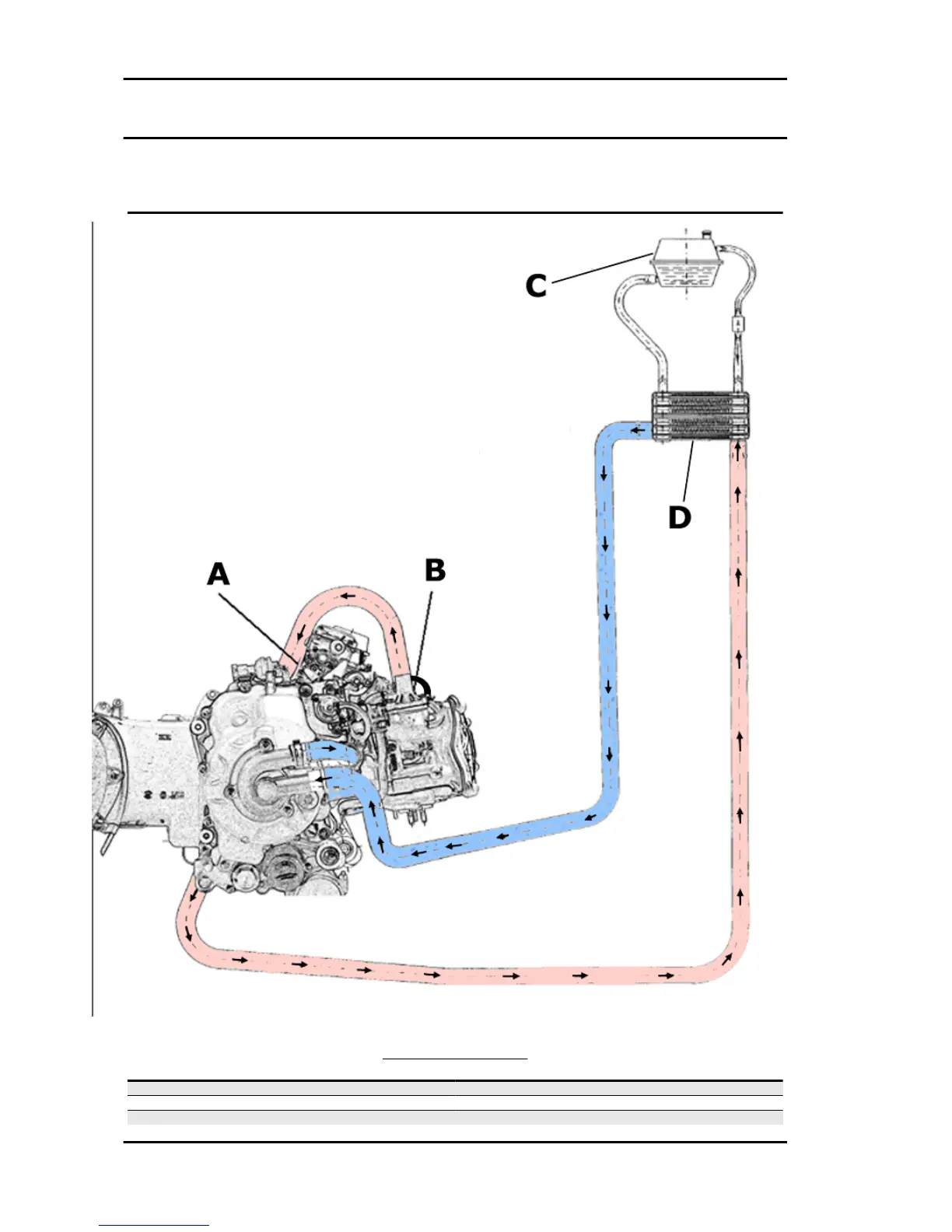

COOLING CIRCUIT
Specification
Desc./Quantity
A Carburettor heating circuit
B Thermostat with by-pass
C Expansion tank
Cooling system B 125-250
COOL SYS - 254
