PIAGGIO B 250 - Page 191

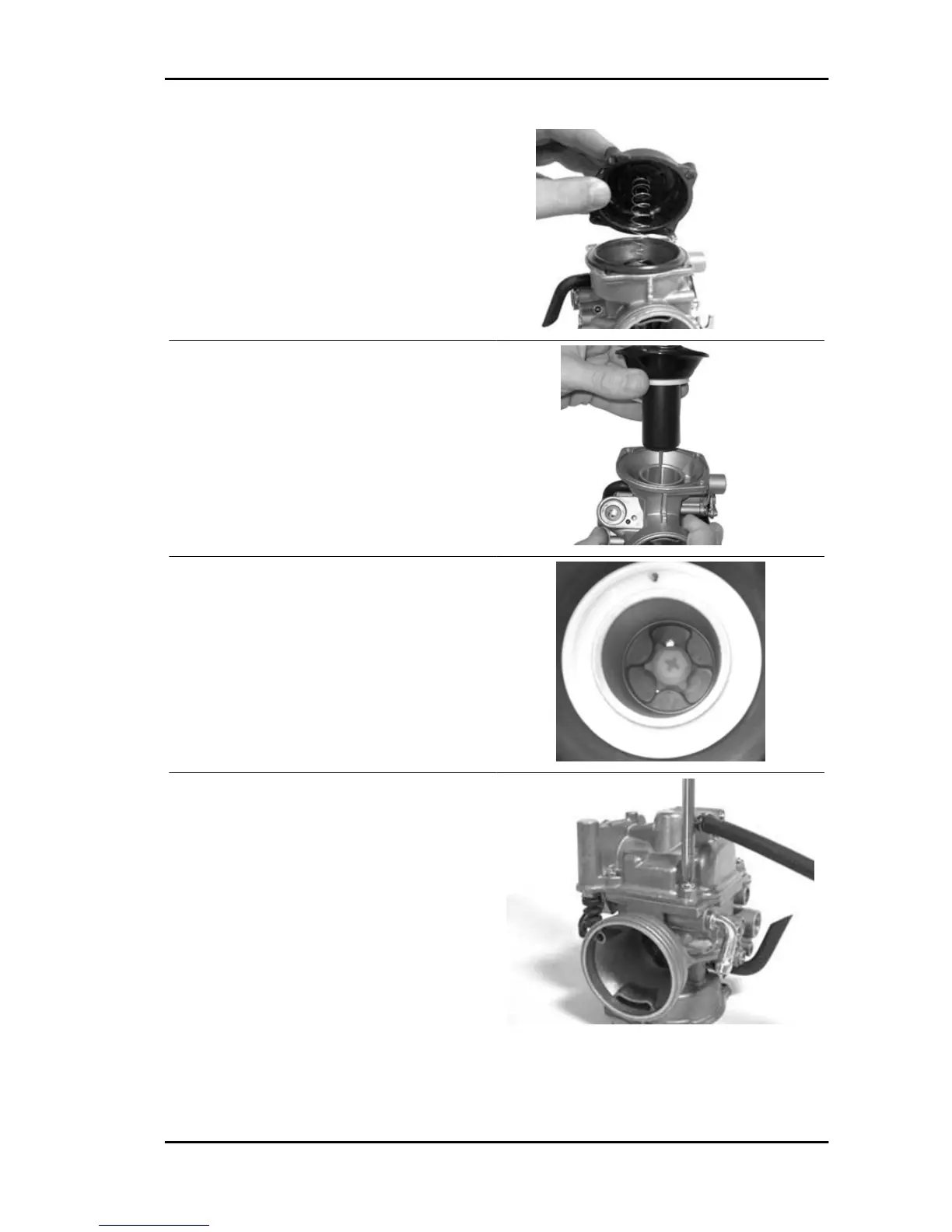

- Remove the vacuum valve together with the di-
aphragm.
- Unscrew the bayonet joint 1/8 of a turn and re-
move, take out the spring and vacuum valve nee-
dle
- Remove the 4 screws indicated in the figure.
B 125-250 Engine
ENG - 191
