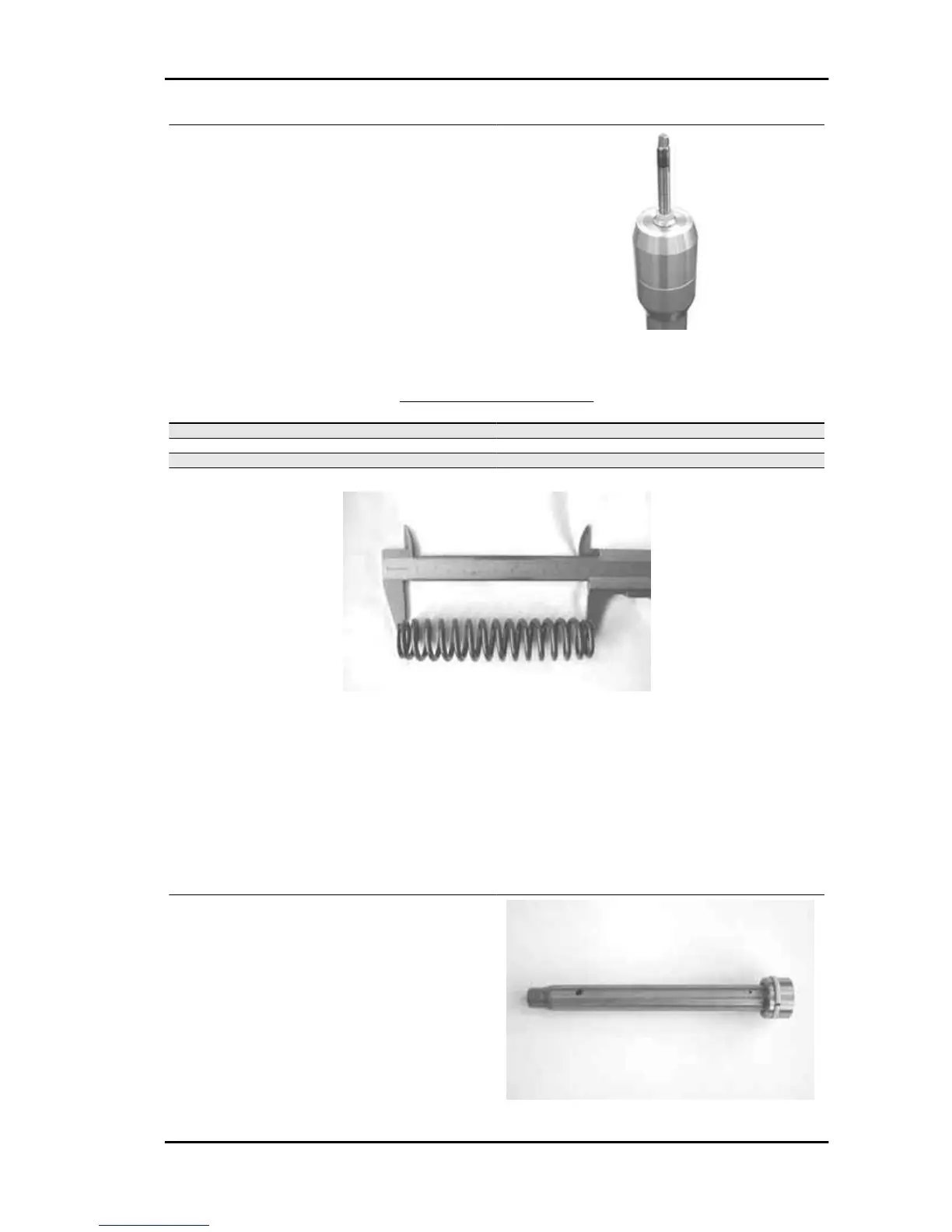

- Keeping the tie rod in vertical position, insert the
bell for the Ø 35 mm stems.
- Insert the nut in the thread and take out the oil
guard
Specific tooling
020487Y Fork oil seal extractor
- Check the length of the springs.
SPRING LENGTH CHECK
Specification Desc./Quantity
Standard length 15-turn spring: 116.3 + 2-1 mm
Standard length 21-turn spring: 175.7 + 2-1 mm
Allowable limit after use: 15-turn spring: 114.3 mm
Allowable limit after use: 21-turn spring: 173.7 mm
Check there are no signs of wear or seizing up between the stem and the leg. Otherwise, replace the
damaged parts.
Characteristic
Maximum leg diameter
35.10 mm
Minimum stem diameter
34.90 mm
Check that the oil holes on the pumping element
are not clogged. - Check that the O-ring shows no
sign of damage.
B 125-250 Suspensions
SUSP - 225
