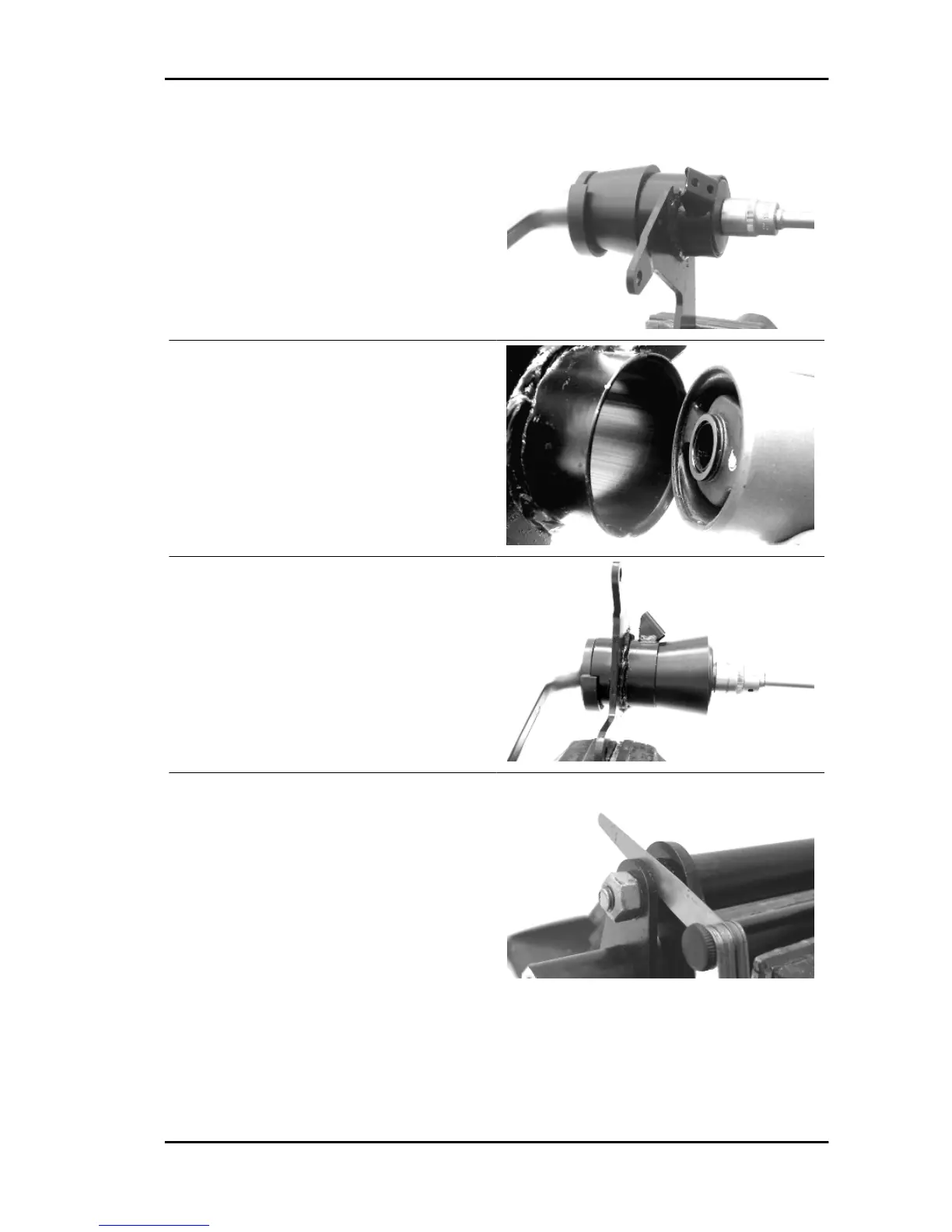

- Install a new silent bloc, making sure it aligns
properly with the reference tooth.
- Fit the silent blocs, making sure the chamfered
part of the silent bloc matches the chamfered part
of the bracket
- Using the appropriate tool, fit the silent bloc as
shown in the photo
Specific tooling
020271Y Tool for removing-fitting silent bloc
- Check there is no sticking in the movement of the
connection of the swinging arm on the engine side
to the swinging arm on the frame side.
- Check the axial clearance between the two
swinging arms using a feeler gauge
Characteristic
Allowable limit after use:
1 mm
standard clearance
0.40 ÷ 0.70 mm
B 125-250 Suspensions
SUSP - 231
