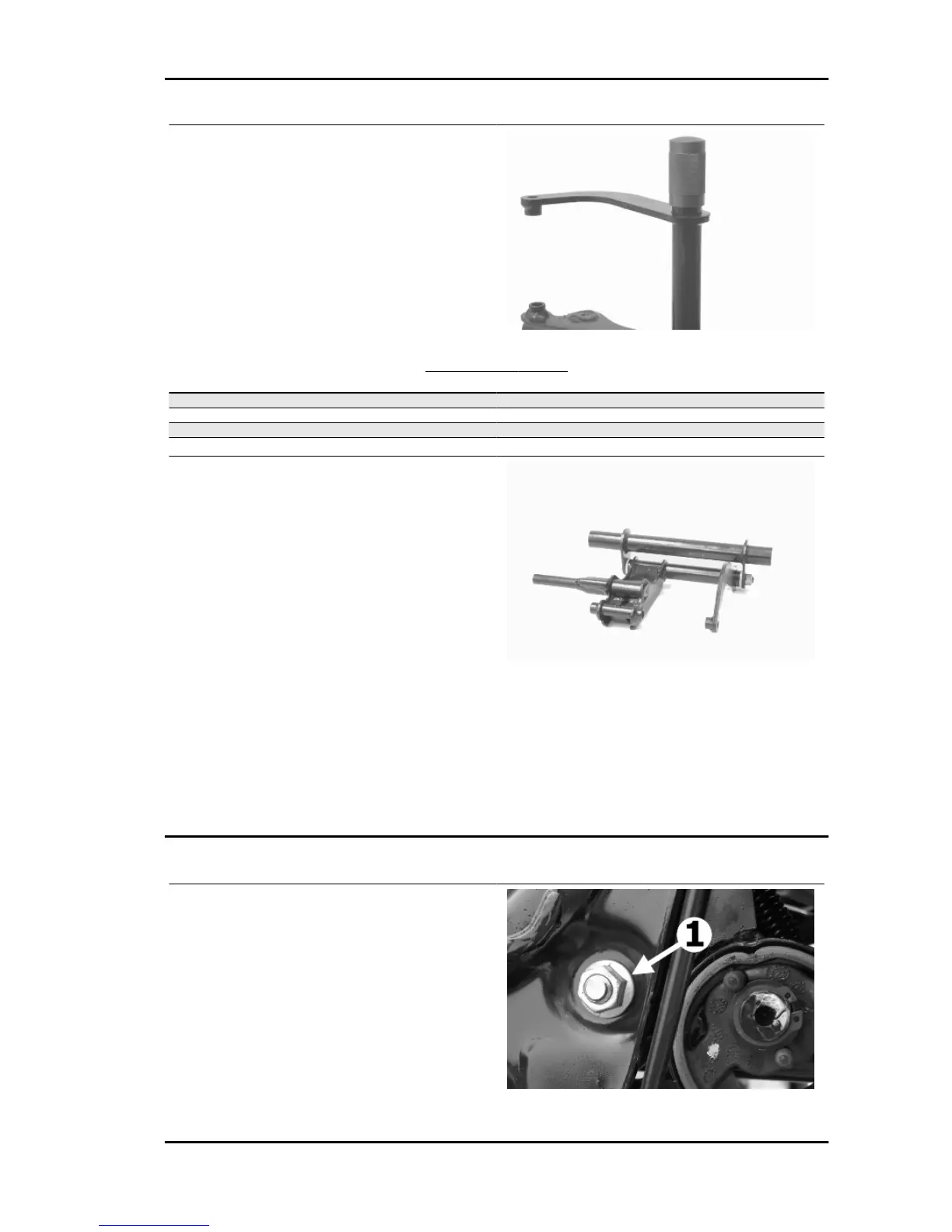

- Using an appropriate tool plant new roller cas-
ings, being careful to position the bearings with the
O-rings facing outwards
Specific tooling
020115Y Ø 18 punch
020244Y 15-mm diameter punch
SWINGING ARM SERVICE
Specification Desc./Quantity
Length of the internal swinging arm spacer on the frame side 228 -0.2/-0.4 mm
Length of the internal swinging arm spacer on the engine side 183 0/-0.2 mm
Length of the swinging arm tube on the engine side 182.5 -0.1/-0.3 mm
Length of the swinging arm tube on the frame side 227.1+0.2/0 mm
- Lubricate the roller bearing housings with grease
- Insert the spacers
- Assemble the two arms with the relative bolt in
the position shown in the photograph
- Adjust the bolt as shown in the photograph
- Position the frame side swinging arm with the
most protruding part pointing towards the silent
block side as shown in the photograph
Recommended products
AGIP GREASE PV2 Grease for control levers
on the engine
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 °
C and +120 °C; NLGI 2; ISO-L-XBCIB2
Refitting
For correct installation of the swinging arm on the
scooter, proceed as follows:
1. Position the silent block supporting clamp with
part 3 inserted, and slightly tighten part 1
2. Position the swinging arm, inserting part 2
3. Tighten part 3 to the prescribed torque
4. Screw on and tighten part 4 to the prescribed
torque
B 125-250 Suspensions
SUSP - 233
