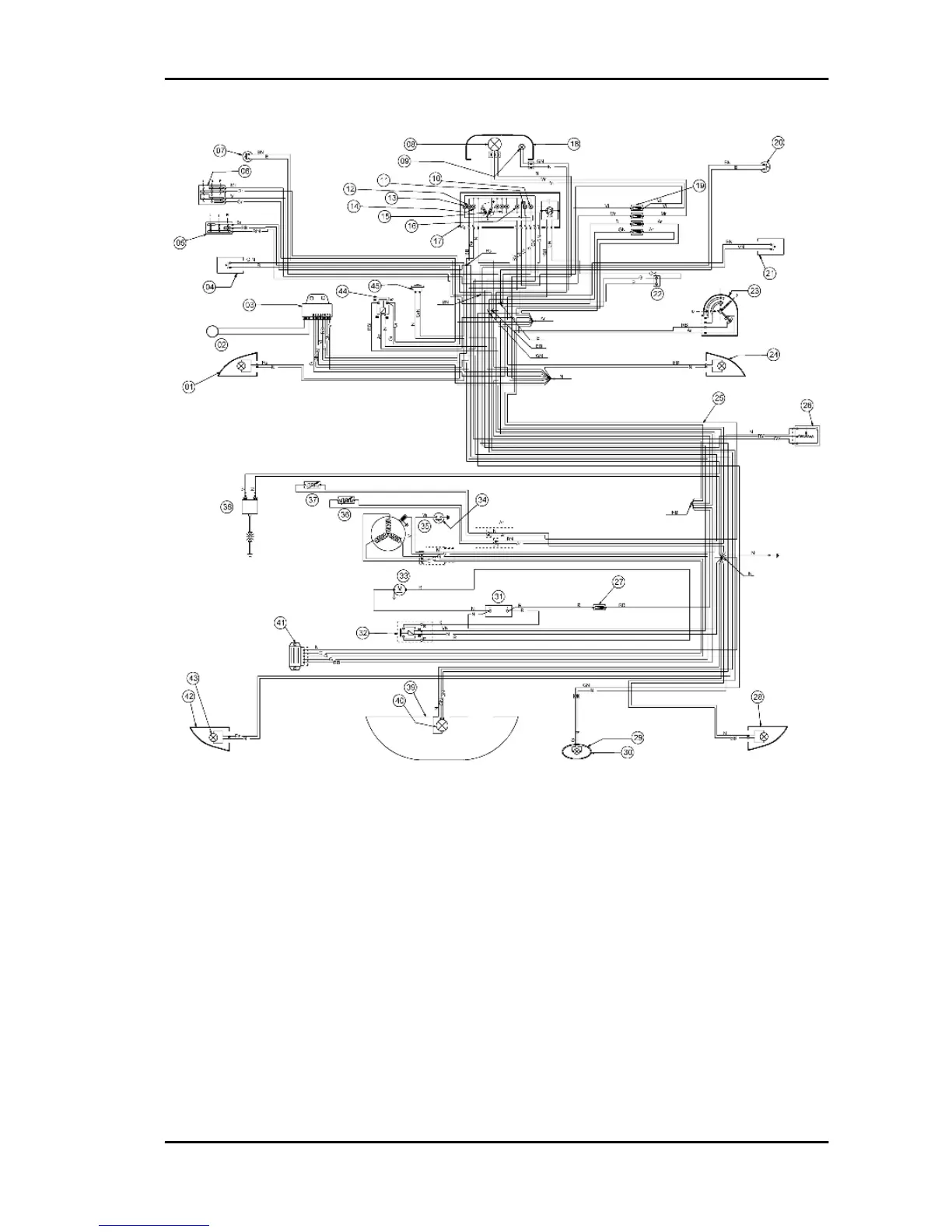

Legend:
1. Front left hand-side turn signal light; two (2) bulb lights for each lamp
2. Immobiliser antenna
3. Electronic ignition device with integrated choke and turn signal controls (ECU)
4. Horn button
5. Turn signal switch
6. Headlight switch
7. Stop light switch on rear brake
8. Double filament bulb 12V - 55/60W
9. Taillight bulb
10. High beam signal light
11. Engine oil pressure warning light
12. Turn signal warning light (RHS)
B 125-250 Electrical system
ELE SYS - 67
