PIAGGIO B 250 - Page 70

Front side

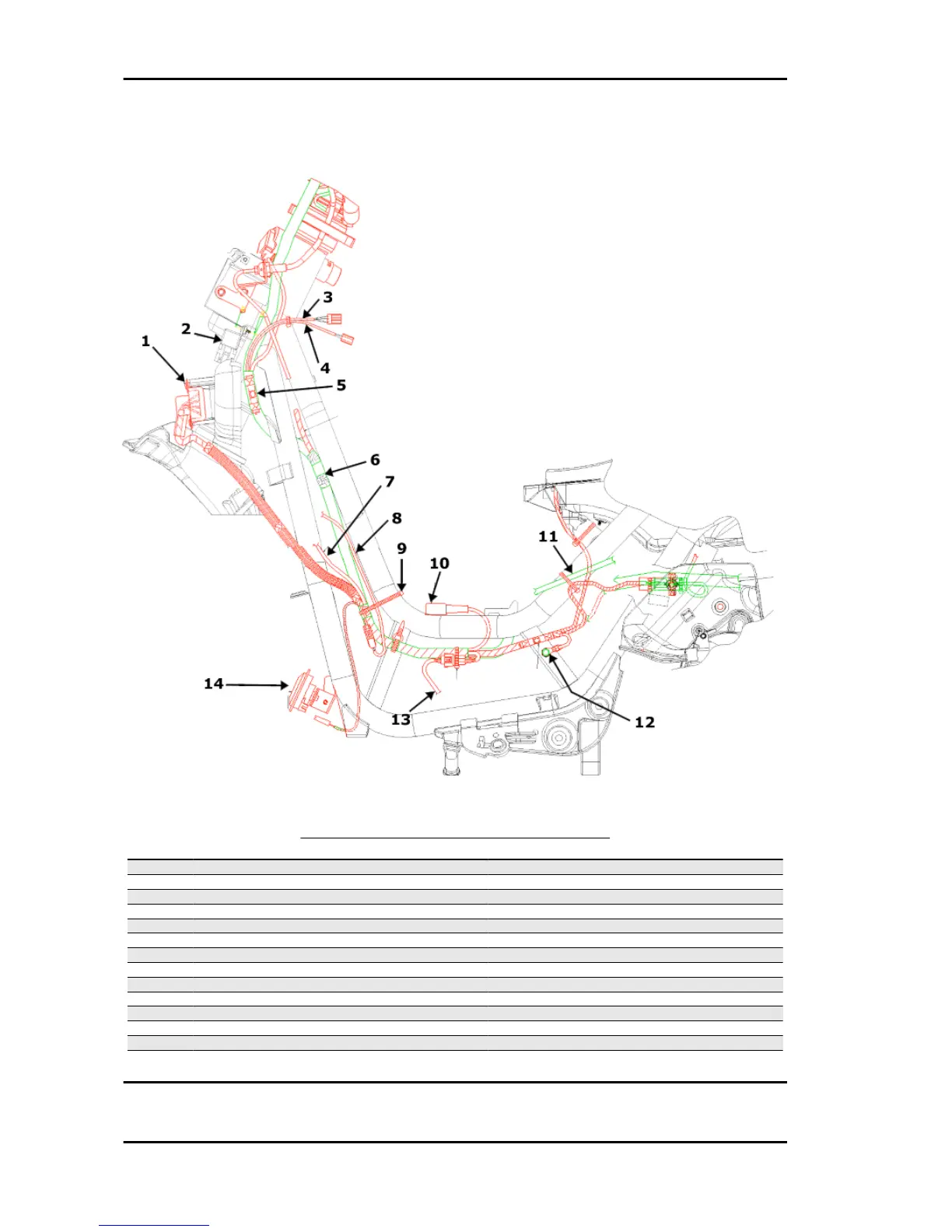

INSTALLING THE ELECTRICAL CIRCUIT
Specification
Desc./Quantity
1 Installing the electrical circuit Front fuse holder
2 Installing the electrical circuit Two relays
3 Installing the electrical circuit Intercom master-box pre-wiring
4 Installing the electrical circuit To seat opening button
5 Installing the electrical circuit Insert in the appropriate hole
6 Installing the electrical circuit Insert in the appropriate hole
7 Installing the electrical circuit To radiator thermal switch
8 Installing the electrical circuit To electric fan
9 Installing the electrical circuit Clamp
10 Installing the electrical circuit To fuel level gauge
11 Installing the electrical circuit Seat opening cable
12 Installing the electrical circuit Earth cable fixing onto frame.
13 Installing the electrical circuit To side-stand switch
14 Installing the electrical circuit Horn
