PIAGGIO X9 Evolution 500 - Start-Up Button; Engine Stop Button

01_21

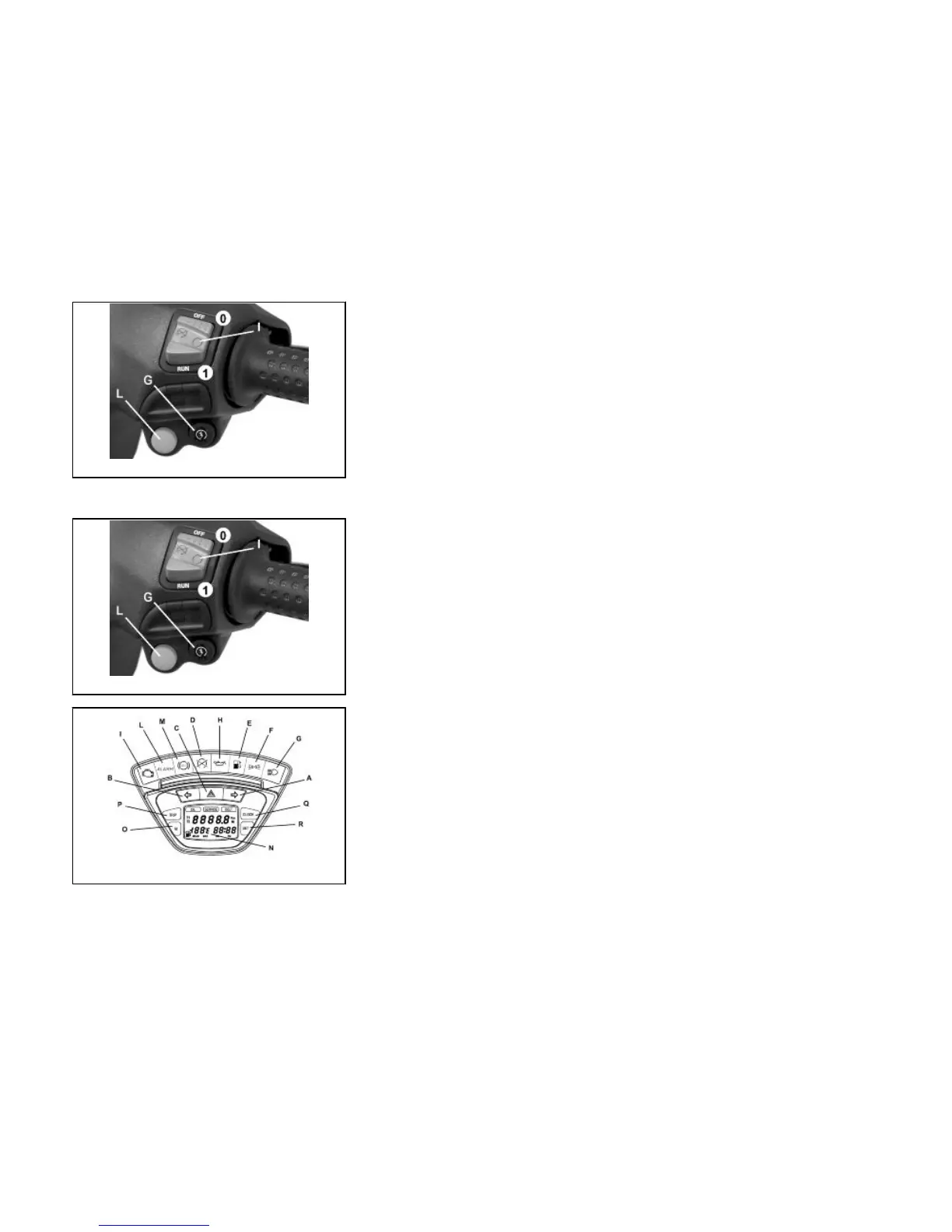

Start-up button (01_21)
Starter button "G"
01_22
01_23
Engine stop button (01_22, 01_23)
0 = OFF
1 = RUN
Use of the emergency stop switch causes the lights «I» and «D» to go on.
The «I» light which indicates the check of the injection system which, other than going
on temporarily after switching from «OFF» to «RUN» of the emergency stop switch,
goes on also in the following conditions:
- Moving the key switch from «OFF» to «ON»;
- Side stand from lowered to raised position;
- Emergency stop switch from «OFF» to «RUN»;
If the light remains on or goes on while normally using the vehicle, contact an Au-
thorized Piaggio Service Center to solve the problem.
