01_29
01_30

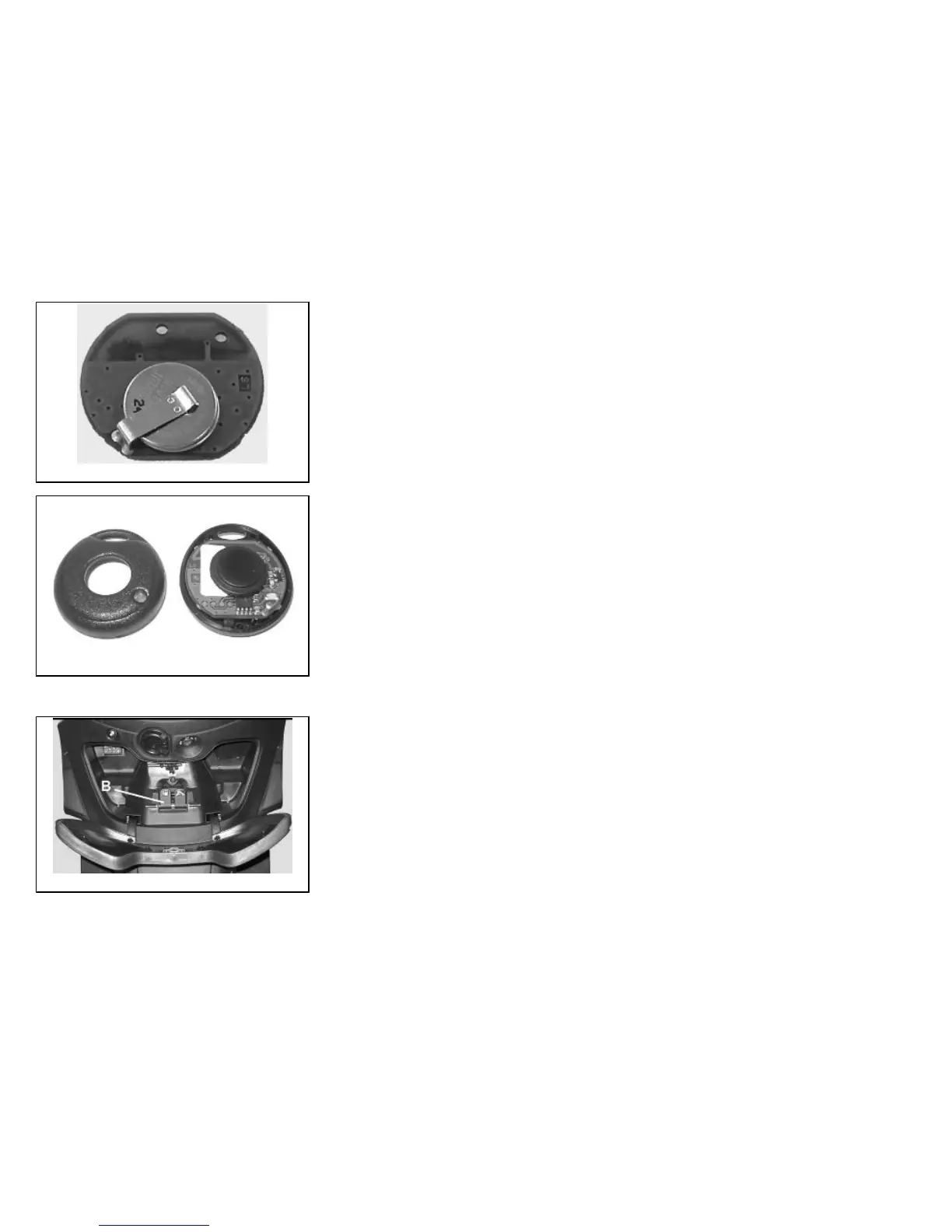

Saddle opening remote control (01_29, 01_30)
The vehicle comes with a remote control for remote opening of the saddle. The saddle
is supplied together with the keys and is matched to the opening device control unit
in the factory. It is nevertheless possible to ask for a new one and reprogram it in the
event the remote control is lost. This procedure can be performed at an Authorised
Piaggio Service Centre. The remote control is a device powered by internal batteries,
so it is subject to running down with use. If the green LED turns on when the button
is pressed, it is operating properly. Battery replacement may become necessary when
you notice the range of action is smaller or if it does not work.In this case you have to
separate the remote control's two half-shells by inserting a blade or the very fine tip
of a screwdriver in a point along the outside edge and then run it along the entire
circumference. Now extract the two batteries from the contact plate on the printed
circuit. Place the new batteries, type CR1616, with the positive pole turned towards
the contact plate. Now put the board back on the rear half-shell with the button and
LED turned outwards. Mount the pressure rubber on the button (the direction it is
inserted is obligatory) and snap on the front half-shell. To open the saddle without
using the remote control, it is possible to do so by following the directions given in
section «Opening the saddle to access the helmet compartment» or «Opening the
saddle to access the helmet compartment in an emergency».
01_31
Accessing the fuel tank (01_31, 01_32)
Insert the key into the switch and press down until the glove box opens. In the event
that the key switch is in «LOCK», turn the key to «OFF» or «ON» before pressing
down. Press lever «B» and open the cover over the fuel tank cap «C».
