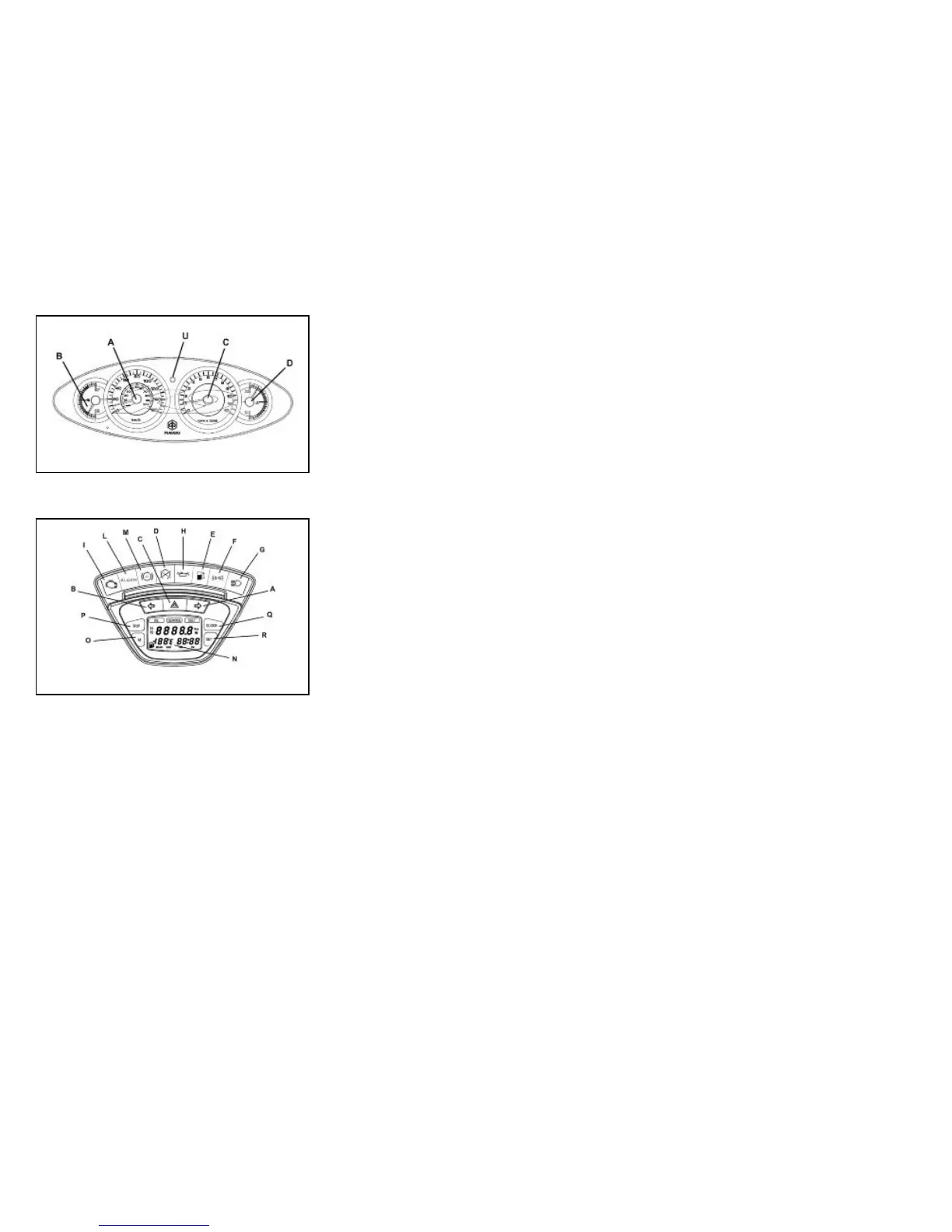

Analogue instrument panel (01_04)
A = Double scale speedometer (km/h and mph)
B = Fuel level indicator
C = Rpm counter
D = Cooling fluid temperature indicator
U = Alarm led
01_05
Instruments (01_05)
A = RH direction indicator
B = LH direction indicator
C = Emergency flashing light indicator (4 direction indicators)
D = RUN-OFF light stop engine/side stand lowered
E = Fuel reverse indicator
F = Light indicator
G = Upper beam indicator
H = Low oil pressure indicator
I = Engine run light and injection fault indication*
L = Electro-hydraulic stand alarm light
M = ABS light (setup)
N = LCD display
O = «Mode» button
