Front light group (03_28, 03_29, 03_30, 03_31, 03_32)

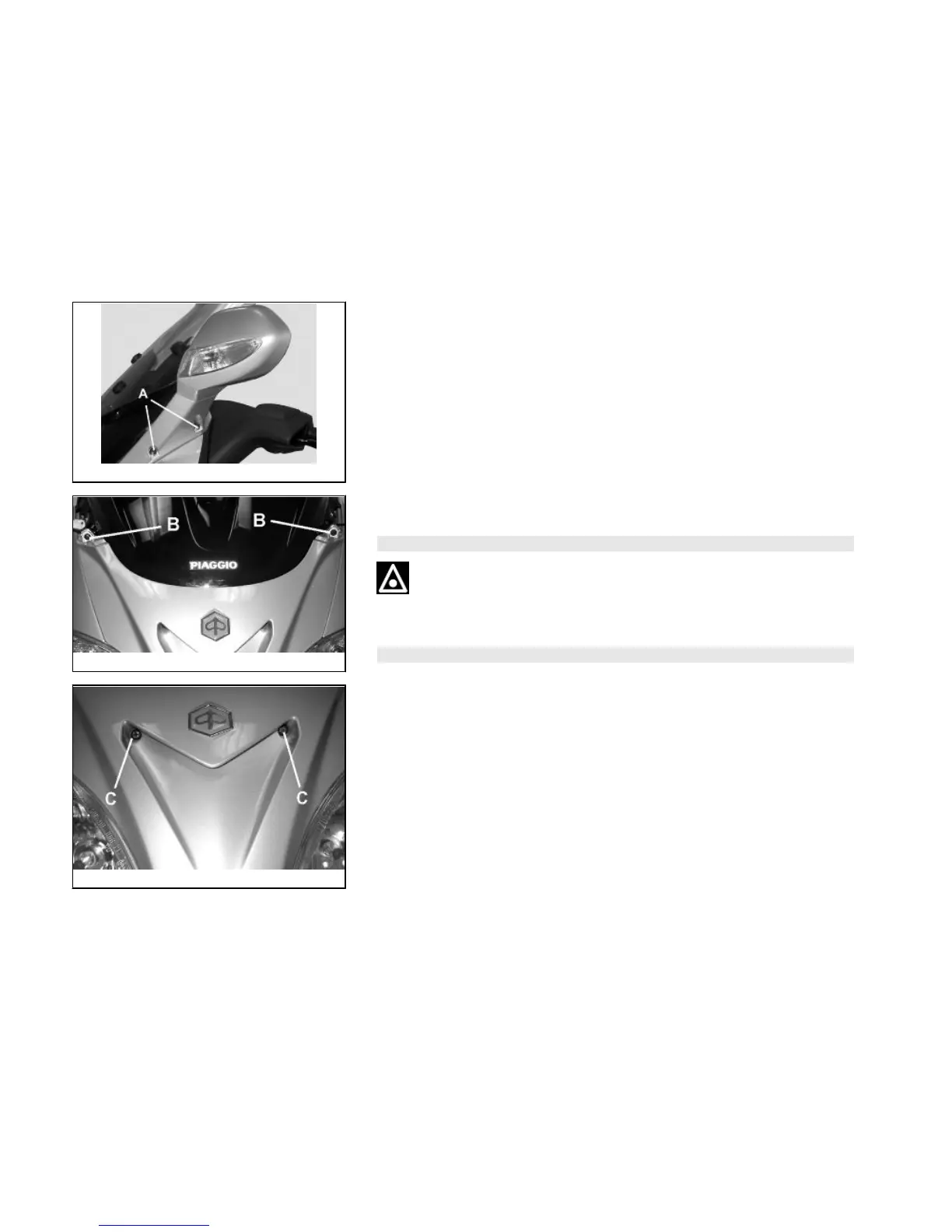

In order to remove the light unit proceed as follows:
1. Remove the rearview mirrors by removing the stoppers at the screws «A» and
removing the 2 screws «A» on the right and left side and disconnect the electric con-
nections of the direction indicators.
2. Remove the two screws «B».
3. Remove the two screws «C».
4. Remove the screw «D».
5. Pull the light unit out of its housing by removing the three screws «E».
Repeat the operations in reverse order for reassembly.
WARNING
HIGH AND LOW BEAM LIGHT ARE OF THE HALOGEN TYPE: DO NOT TOUCH
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS RELATED TO THE HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT THE PIAGGIO AFTER-SALES
SERVICE NETWORK.
