03_36
03_37
03_38

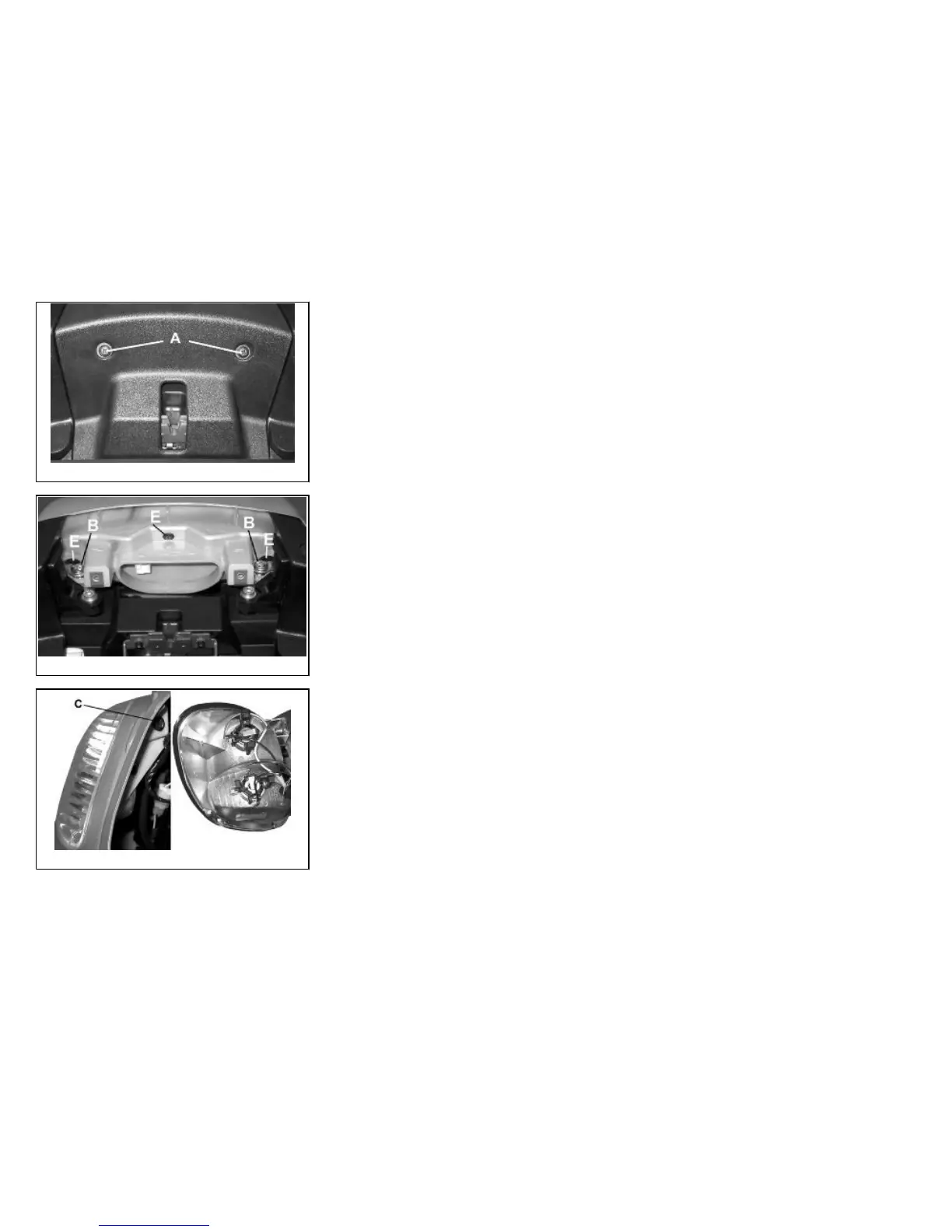

Rear optical unit (03_36, 03_37, 03_38)
To remove the rear light assembly, proceed as follows:
1. Open the saddle and remove the saddle lock cap by undoing the two screws «A»
2. Loosen the two fixing screws «B» and then remove the stop light support;
3. Remove the screw «C» of the light assembly being tested as shown in the figure.
Now the tail headlight bulbs or the turn indicator bulbs can be reached. Release the
fixing tongues to remove the assembly bulb holder.
89
