Piazzetta P960 - Installing into an Existing Firebox Chimney; Short Rise Installation - Wall Outlet

This kind of installation also provides natural draft in the event of a
power failure.

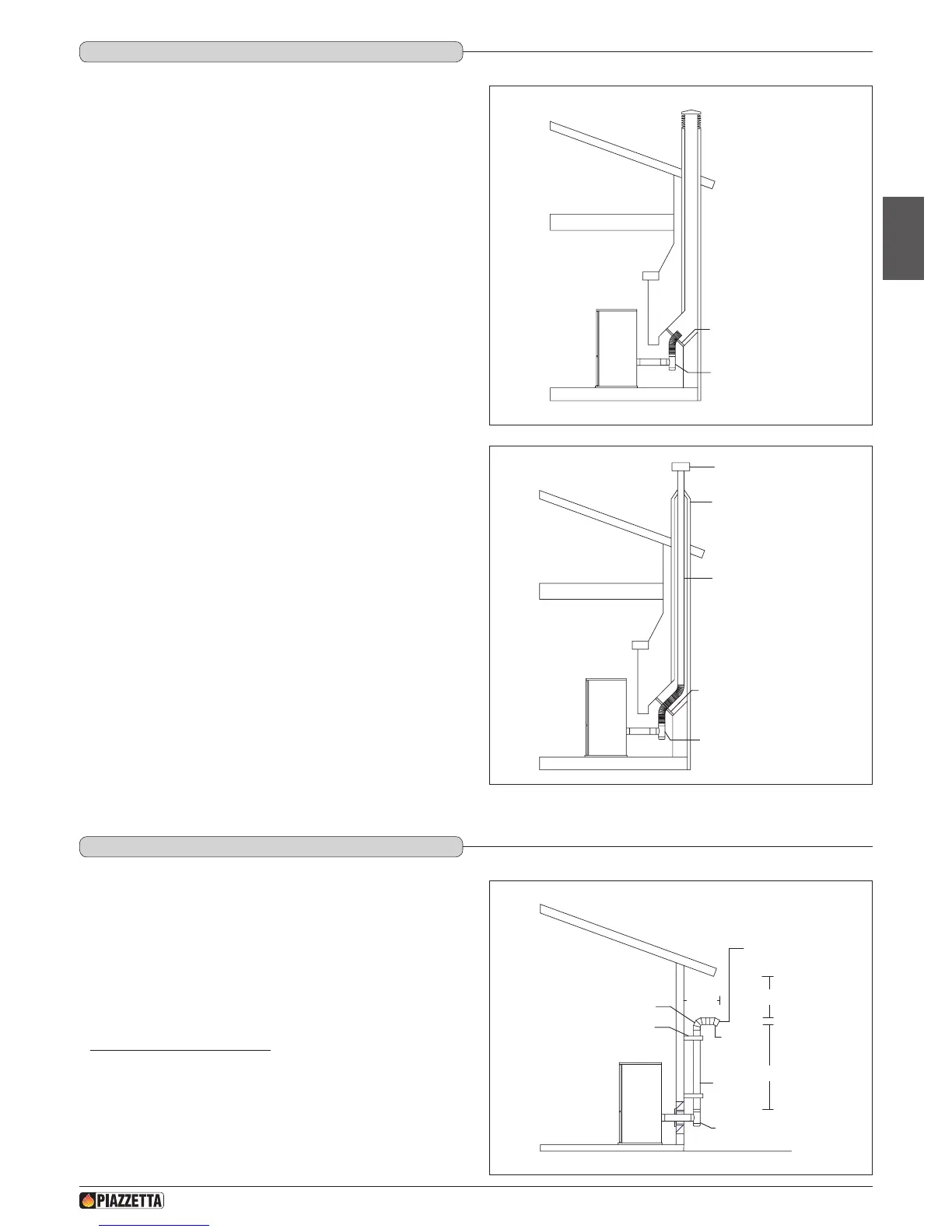

When installing as a hearth mount stove into a rebox the unit must
either be relined, terminating above the chimney chase top, or positively
connected to the existing chimney system using a block off plate (Fig.
15-16).
An approved ex liner of PL vent must be used.
Put attention: some areas require that a liner must be always installed
to the top of the ue, as shown in gure 16.
a A chimney system with known drafting problems may require
a liner, which may also need to be insulated to keep vent
system warm in cold chimney environment.
a A cap shall be installed on the chimney to keep out rain.
a Strictly observe the PL Vent manufacturer’s safety
specications.
a INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT
MANUFACTURER.
a Strictly use listed pellet vent pipe ttings.
a Ensure that all installation work is carried out to professional
standards.
When terminating the exhaust system under the houses eaves, (Fig. 17)
the following requirements shall be fullled:
- in selecting locations for appliance and vent, take into consideration
the NPFA 211 6-3.5 rule for distance of exit terminal from window
and openings;
- run the vent vertically up the wall, ensuring to maintain a minimum of
3” clearance between the wall and vent;
- a wall band must be installed just above the tee and at least every 6’
of vent rise or, if the rise is inferior, at the end of the vertical run;
- after a rise of at least 5’ (1,5 m), install a 90° elbow aimed out from
the building wall;
- attach a 45° elbow to the 90° elbow, aiming the second elbow down
toward the ground. Terminate the vent with a collar with screen
fastened to the 45° elbow;
- the end of the vent pipe system must be at least twelve inches (12”)
from the wall and 24” below the eave.
DT2010232-02
1.10 INSTALLING INTO AN ExISTING FIREbOx ChIMNEy
DT2010232-02
1.11 ShORT RISE INSTALLATION – wALL OUTLET
TEE
POSITIVE
BLOCK OFF PLATE
TEE
POSITIVE
BLOCK OFF PLATE
RAIN CAP
CHIMNEY FLASHING
PL VENT SYSTEM
> 24"
>5'
>12"
45°
ELBOW
90° ELBOW
TERMINATION
COLLAR
TEE
VENT
WALL BAND
Fig. 15
Fig. 16
Fig. 17
H07028100/DT2000970 – 01
11
English
DT2033039-00
DT2033040-00
DT2033041-00
