Piazzetta P960 - Capacity Load of the Floor; Minimum Safety Distances

Check the load-bearing capacity of the oor, referring to the weight of the product given in the paragraph “TECHNICAL DATA”.
If the oor does not have a suitable load-bearing capacity, adequate countermeasures must be taken.
DT2010032-00
1.5 CAPACITy LOAd OF ThE FLOOR
Install the product in compliance with the recommended safety distances
from heat sensitive or inammable materials and not inammable, from
load bearing and other walls and also from wooden elements, furniture,
etc.
The minimum distances are:
- 4” (10 cm) from the wall behind the stove;
- 6” (15 cm) from the side wall;
- 32” (80 cm) in the heat radiation area and from the the hot air fan
outlet.
In the case of ooring that is heat sensitive or inammable the oor
must be protected with non-combustible insulating material, e.g. sheets
of steel plate, marble, tiles, etc.
The oor protection must extend:
- under the product;
- a minimum of 6” (152 mm) in front of unit and beyond each side of the
fuel loading and ash removal opening (4” / 10 cm from the external
side of the coating).
Connection to the ue must respect minimum safety distances from
heat-sensitive structural components or inammable materials (wood
panelling, beams or ceilings, etc) shown in gures.
a The stove will become hot while in operation. Keep children
away from all stove surfaces.
Direct contact with stove while operating may cause skin
burns.
a Keep any combustible product such as wooden furniture,
curtains, carpets, combustible liquids, etc. well away from the
stove when it is lit (minimum distance 32” / 80 cm).
a It is recommended that greater distances than those indicated
above be left all round the stove to make any necessary work
on the appliance easier.
a INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT
MANUFACTURER.
a Certain local code restrictions may apply.
Check with Local Ofcials rst before installing.
DT2011553-02

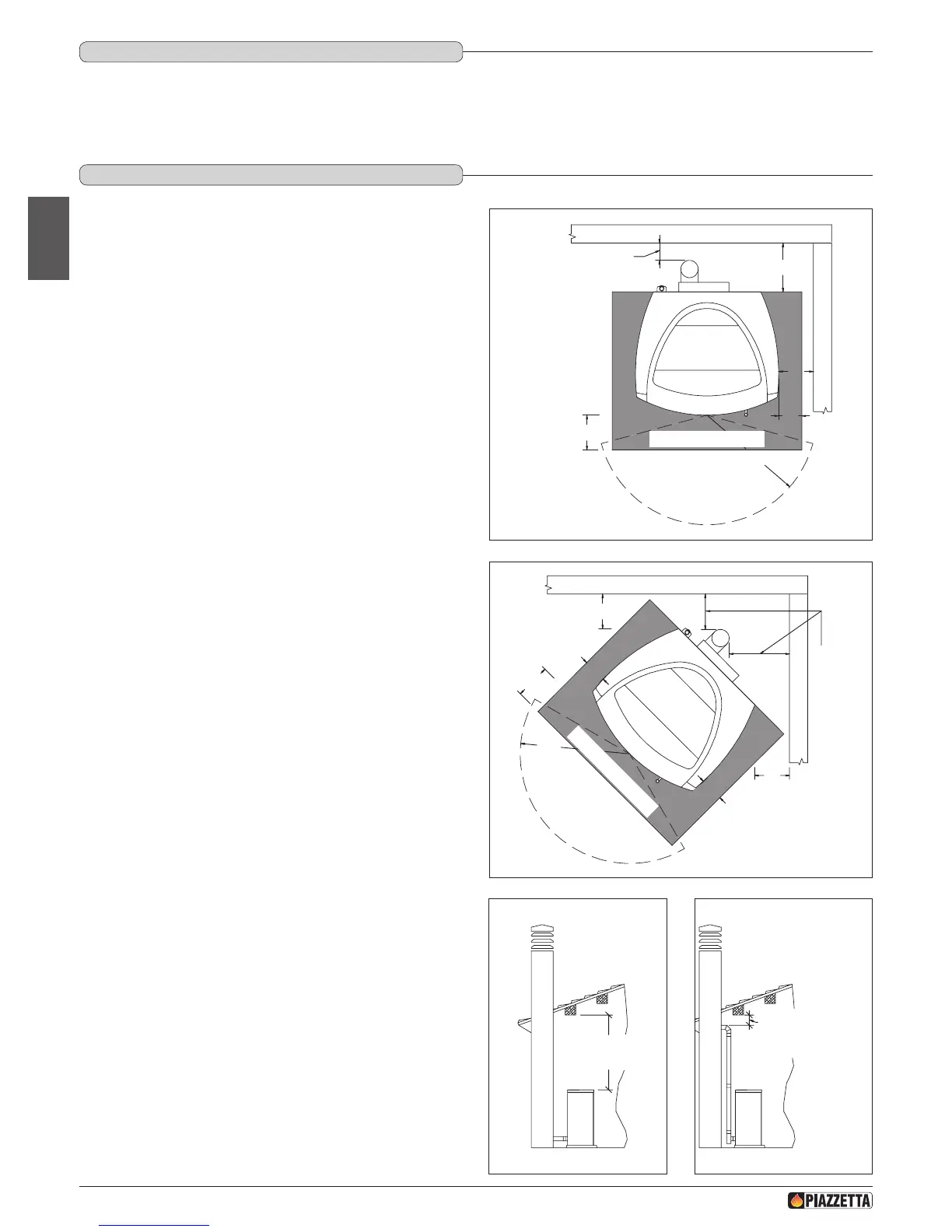

1.6 MINIMUM SAFETy dISTANCES
SEE VENT
MANUFACTURER'S
INSTRUCTIONS
MIN 4"
4"
6"
6"
32"
FLOOR PROTECTION
REAR WALL
SIDE WALL
HEAT RADIATION AREA
6"
6"
4"
4"
6"
32"
FLOOR PROTECTION
SIDE WALL
REAR WALL
SEE VENT MANUFACTURER'S
INSTRUCTIONS
HEAT RADIATION AREA
Fig. 4
Fig. 5
SEE VENT
MANUFACTURER'S
INSTRUCTIONS
MIN 22"
(MIN 56 cm)
Fig. 6 Fig. 7
