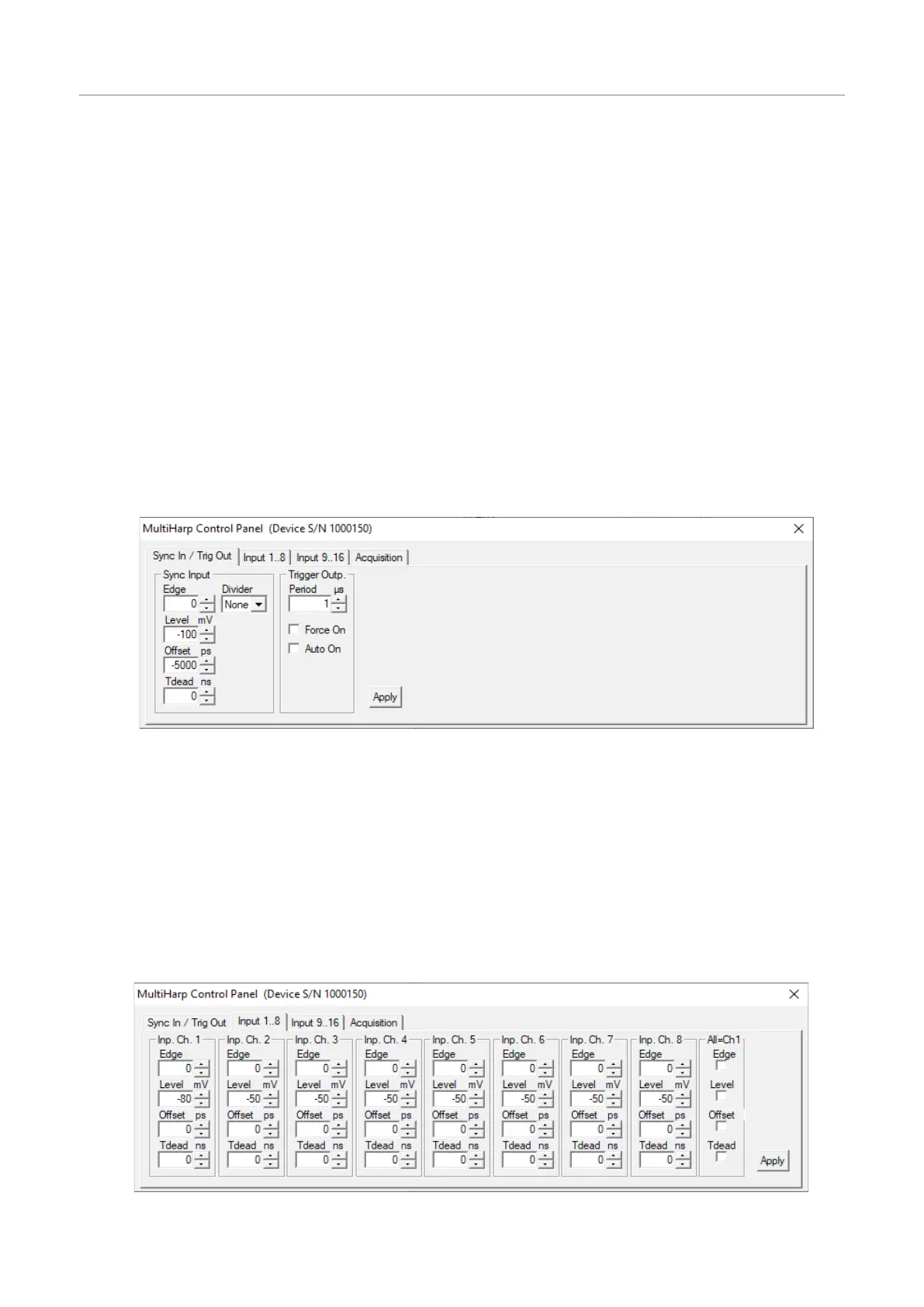

4.4. The Control Panel
TheMultiHarpcontrolpanelisadialogboxforsettingtheparametersforhardwareadjustmentanddataacquisi-
tion.Itisimplementedasa‘non–modal’dialogbox,i.e.itdoesnothavetobeclosedbeforethemainwindow
cancontinuetooperate.Thiswayyoucanmakechangestoyoursettingsinthecontrolpanelandwatchtheir
effectonarunningmeasurementinthemainwindowimmediately.Nevertheless,youmayclosethecontrol
panelandrestoreitatanytimebyclickingthecontrolpanelbuttononthetoolbarorpressing<Alt>+C.
Thecontrolpanelconsistsofseveralpages(tabbedsheets)containinggroupsofeditboxesandothercontrols
forrelatedparameters.Thesepagesandtheirrespectivecontrolsare:
Sync–Input and Trigger Output
TriggerEdge editboxandspincontrol
TriggerLevel editboxandspincontrol
Offset editboxandspincontrol
Tdead editboxandspincontrol
SyncDivider editboxandspincontrol
TriggerOutp.Period editboxandspincontrol
TriggerOp.ForceOn tickbox
TriggerOp.AutoOn tickbox
Inputs 1..8
ZeroCross editboxandspincontrol
DiscriminatorLevel editboxandspincontrol
Offset editboxandspincontrol
 Tdead editboxandspincontrol
All=Ch1,ZeroCr. tickbox
All=Ch1,Discr. tickbox
All=Ch1,Offset tickbox
ControlsforchannelsthatdonotexistintheMultiHarpbeingusedwillremaindisabled(gray).
