Installation
Operating Manual PNOZ m B0
1002660-EN-07
16

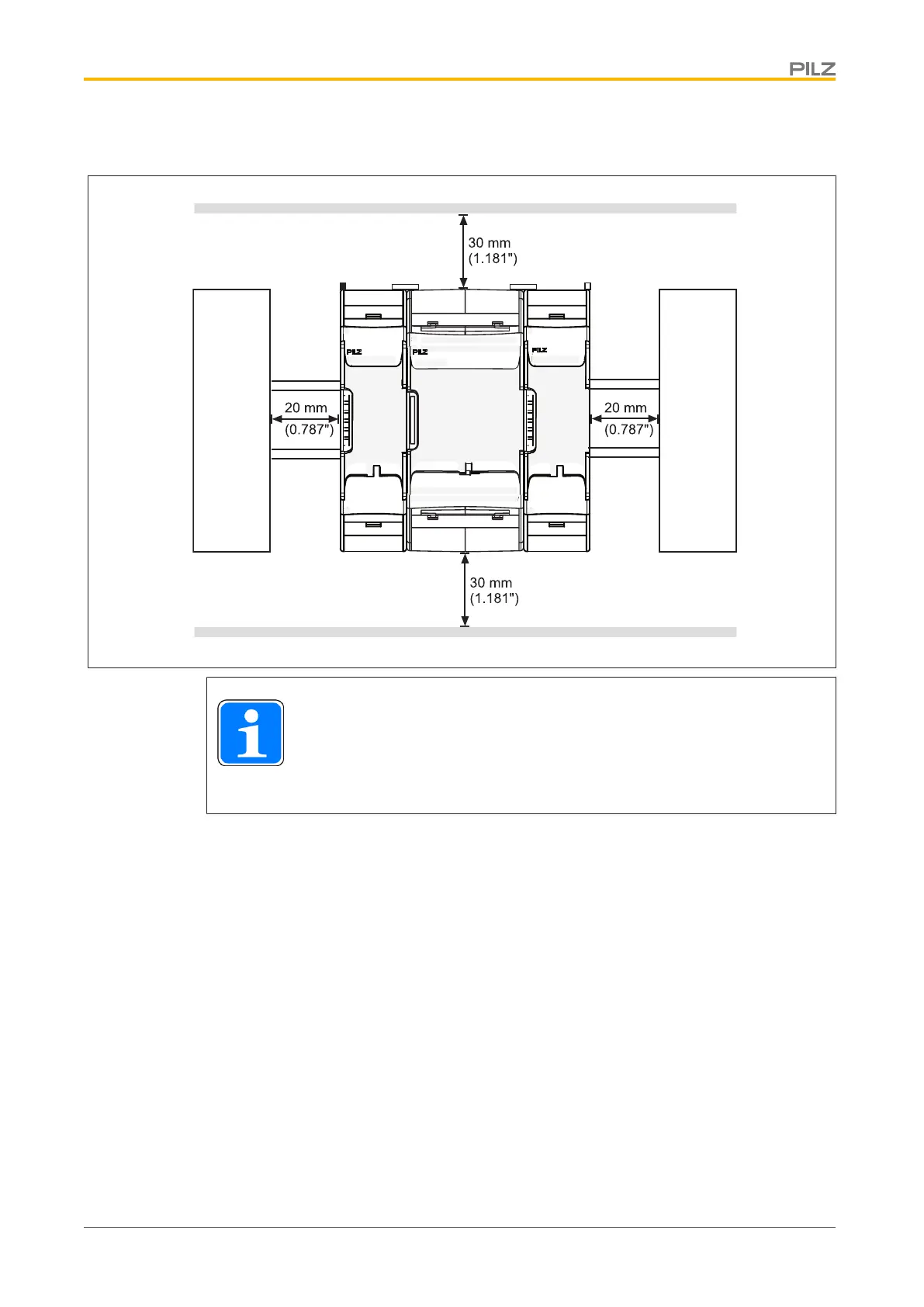

Mounting distances:
Heat-producing unit
Heat-producing unit
INFORMATION
Please note that at the stated minimum distance, it will be difficult to swap
the chip card from above. If you cannot leave a greater distance, remove
the unit from the mounting rail to swap the chip card.
15
17
