Operation
Operating Manual PNOZ m B0
1002660-EN-07
28

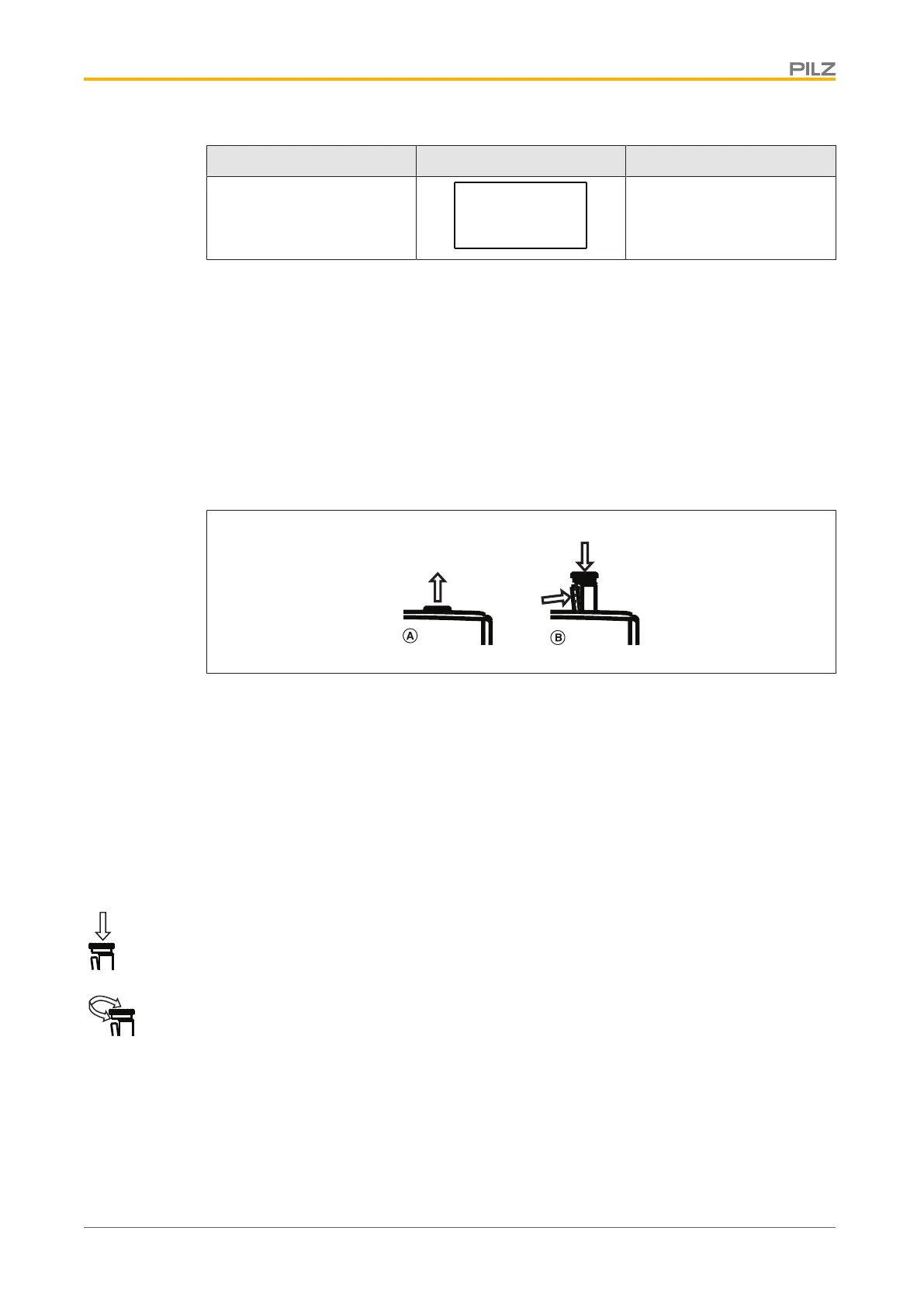

Display Example Description
EXIT MENU?
Exit menu
Exit menu?
Exit menu
You can switch between the menu levels by pressing or rotating the knob.
7.2.1 Rotary knob
7.2.1.1 Function
The menu settings are made on the unit's display via a rotary knob. You have the option to
make the settings on the knob by hand or with a screwdriver. If you make the settings with
a screwdriver, the knob can remain within the unit.
7.2.1.2 Pull out and retract the knob
[1]
[2]
Knob :
} (A) pull out until it locks into position
} (B) release and push it back into the unit:
– Press the bar on the side of the knob [1] towards the centre of the knob. This re-
leases the knob.
– Press the knob downwards [2] while keeping the bar pressed in
7.2.1.3 Rotate and press the knob
The settings are made via the rotary knob, as follows:
Press knob
} Confirm selection/setting
} Switch to menu
Rotate knob
} Select menu level
