Commissioning
Operating Manual PNOZ m B0
1002660-EN-07
20

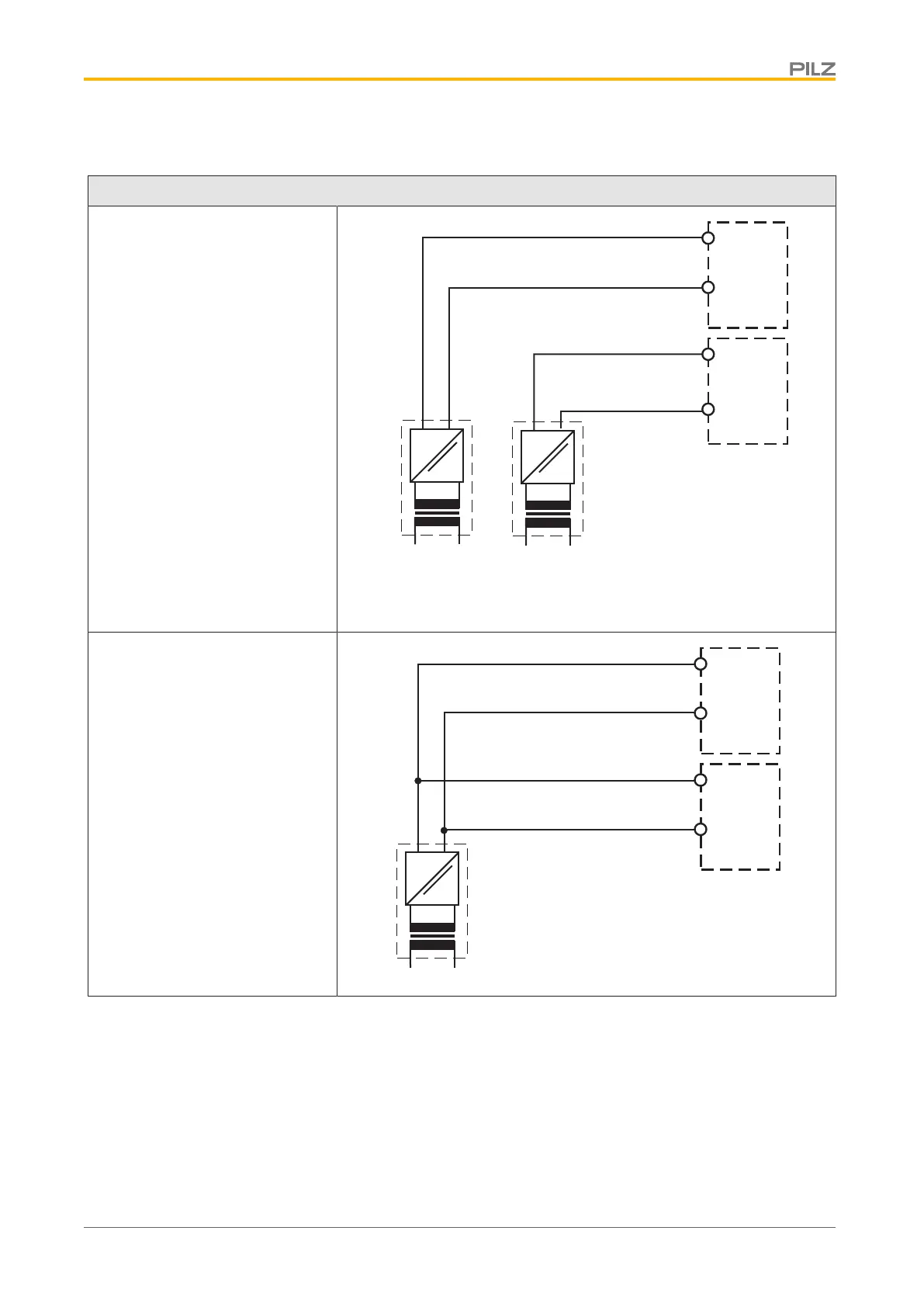

6.2.1 Connection
Supply voltage
Separate power supplies for the
supply voltage to the control sys-
tem and the supply voltage to the
semiconductor outputs
+24 V DC
0 V DC
Supply
voltage infeed
for the control
system
Supply
voltage infeed for
the semiconductor
outputs
0 V DC
+24 V DC
=
~
NL1
=
~
NL1
A1
A2
24V
0V
Common power supply for the
supply voltage to the control sys-
tem and the supply voltage to the
semiconductor outputs
+24 V DC
0 V DC
=
~
NL1
A1
A2
24V
0V
Supply voltage infeed
for the control system
Supply voltage infeed
for the semiconductor outputs
