7.2.4 Error stack on the LC display
The error stack can be read from the PNOZmulti Configurator or shown on the LC display.
The error stack helps Pilz technical support with fault diagnostics. The error stack can store
up to 64 status and error messages.
The following information is shown on the LC display:
} Sequential number of an error stack entry. A new error stack entry is stored in first
place.
} Error class (EC) and error information (EI)
} Error number (EN) and five error parameters (PA)

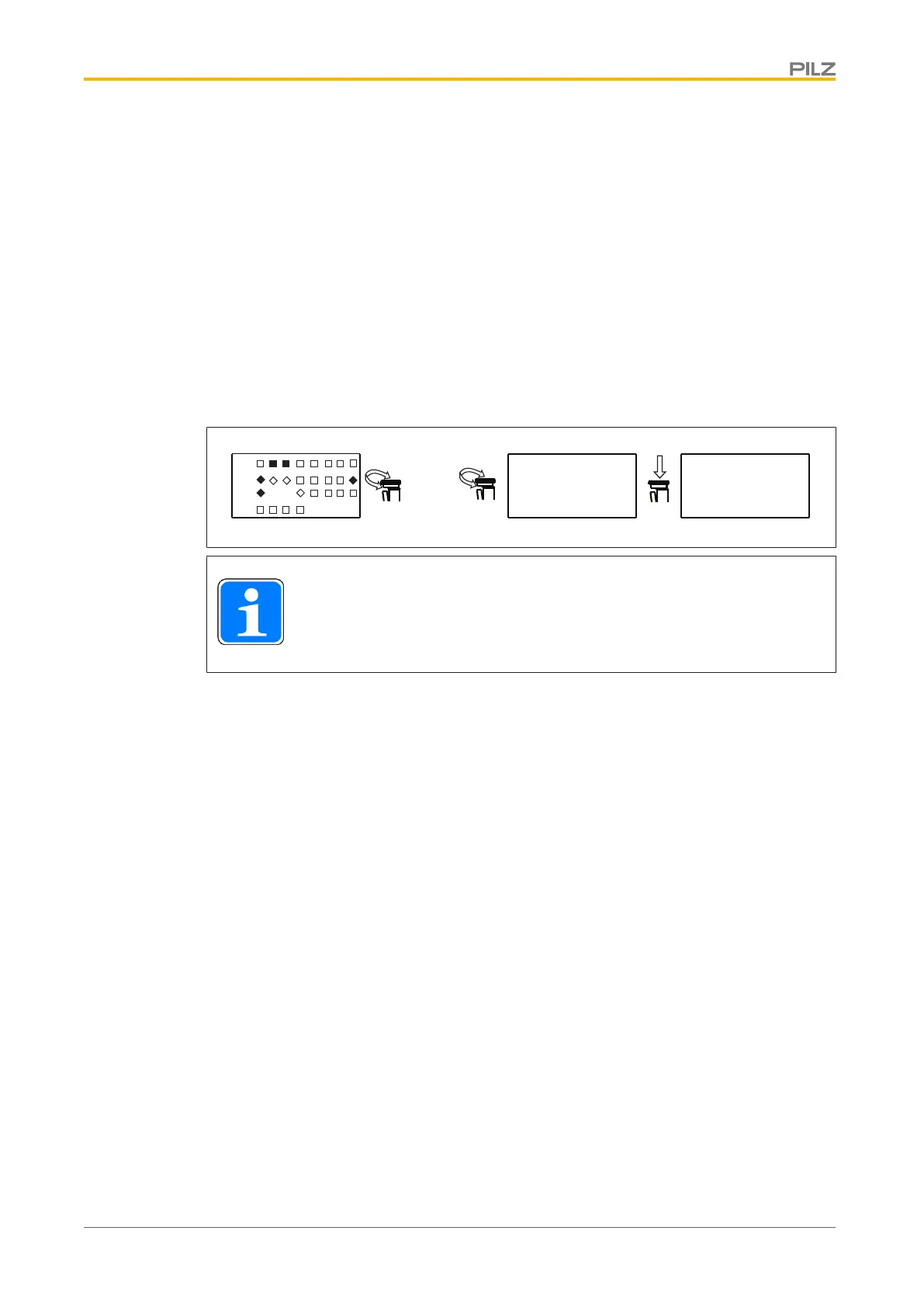

Procedure for displaying the error stack on the LC display:
} Use the rotary knob to display the error stack.
01/64
PA: 00 00 00
00 00
EC: 83
EN: 01
Show
error stack?
X3
X1
X2
X4
T
T
M
...
CH: A
INFORMATION
Use the rotary knob to exit the error stack.
Procedure for reading the error stack with the PNOZmulti Configurator:
} See online help for the PNOZmulti Configurator
