OPERATING MANUAL PSEN op4F/H-A series
The mounting positions recommended based on the length of the light curtain are stated in
Fig. 19 and in the following table.

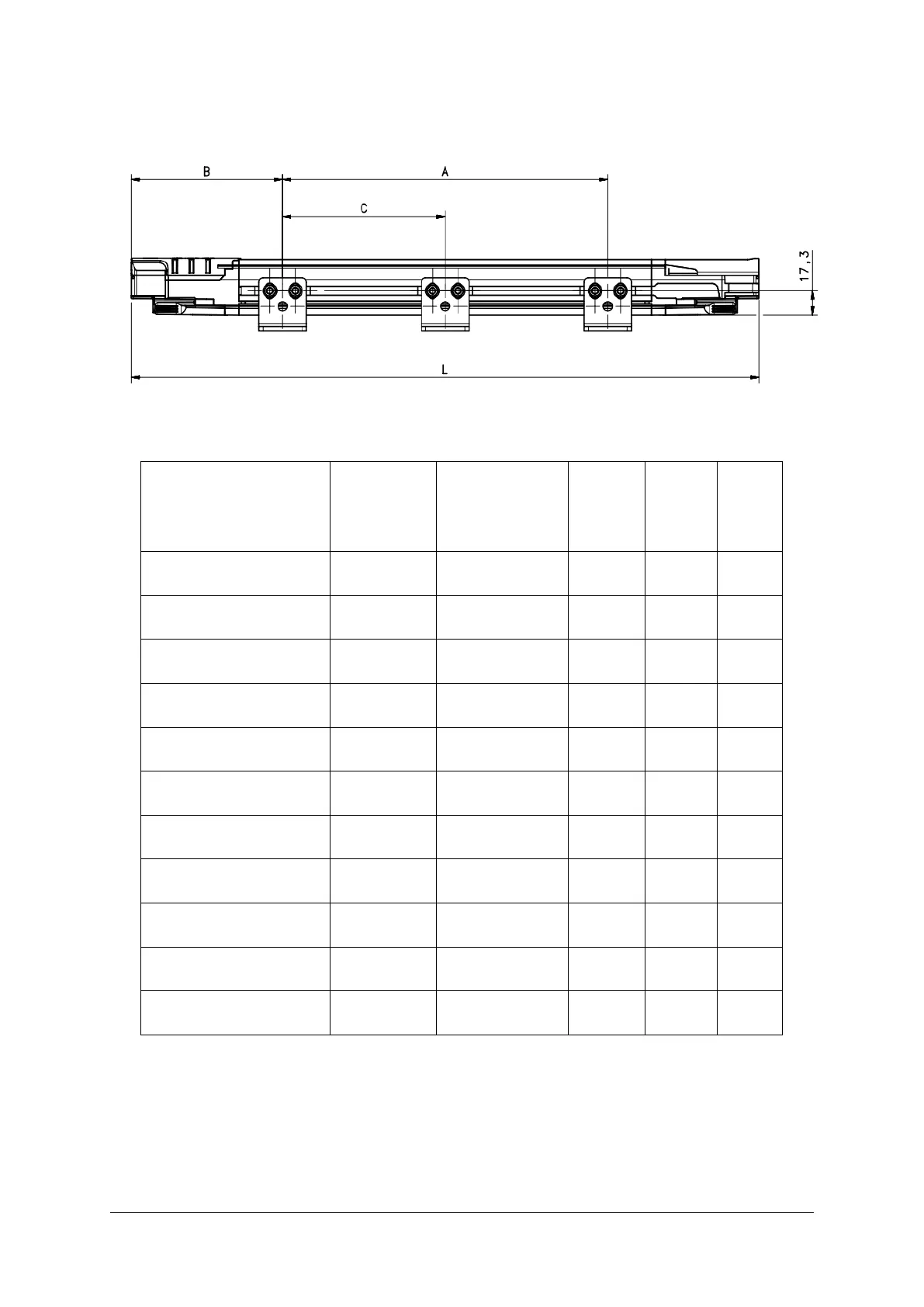

Fig. 19 – Light curtain dimensions
MODEL
L (mm)
L (mm)
incl. PSEN op
advanced
programming
adapter
A (mm)
B (mm)
C (mm)
PSEN op4F-A-14-030/1
PSEN op4H-A-30-030/1
306.3
363.2
86.3 110 -
PSEN op4F-A-14-045/1
PSEN op4H-A-30-045/1
456.3
513.2
236.3 110 -
PSEN op4F-A-14-060/1
PSEN op4H-A-30-060/1
606.2
663.1
306.2 150 -
PSEN op4F-A-14-075/1
PSEN op4H-A-30-075/1
756.2
813.1
406.2 175 -
PSEN op4F-A-14-090/1
PSEN op4H-A-30-090/1
906.1
963.0
506.1 200 -
PSEN op4F-A-14-105/1
PSEN op4H-A-30-105/1
1056.1
1113.0
606.1 225 -
PSEN op4F-A-14-120/1
PSEN op4H-A-30-120/1
1206
1262.9
966 150 453
PSEN op4F-A-14-135/1
PSEN op4H-A-30-135/1
1356
1412.9
1066 175 503
PSEN op4F-A-14-150/1
PSEN op4H-A-30-150/1
1505.9
1562.8
1166 200 553
PSEN op4F-A-14-165/1
PSEN op4H-A-30-165/1
1655.9
1712.8
1266 225 603
PSEN op4F-A-14-180/1
PSEN op4H-A-30-180/1
1805.8
1862.7
1366 250 652.9
24
1003067-EN-04
