OPERATING MANUAL PSEN op4F/H-A series

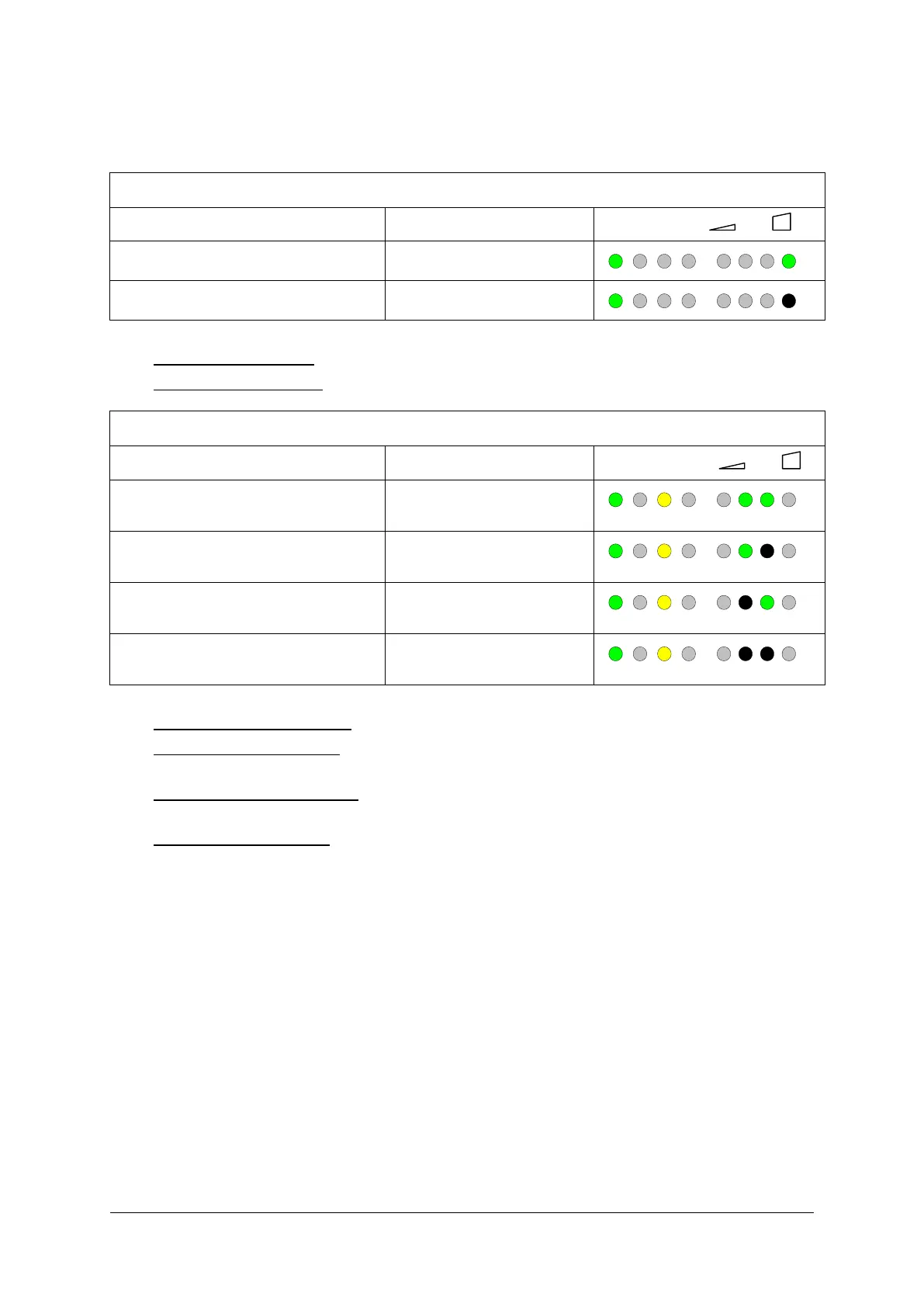

7.9.7 Blanking mode in the basic configuration
Only a reduced series of configurations can be implemented in basic configuration mode.
BCM configuration: Fixed blanking
PWR OSSD EDM ACM
LEVEL
1 fixed blanking zone
LED 8 ON green
2 fixed blanking zones LED 8 OFF
• 1 fixed blanking zone: only 1 zone can be configured as a blanking zone.
• 2 fixed blanking zones: 2 zones can be configured as blanking zones.
BCM configuration: Floating blanking
PWR OSSD EDM ACM
LEVEL
Floating blanking disabled LED 6 ON green
LED 7 ON green
Floating blanking 1 beam (with
partial surveillance)
LED 6 ON green
LED 7 OFF
Floating blanking 2 beams (with
partial surveillance)
LED 6 OFF
LED 7 ON green
Reduced resolution 4 LED 6 OFF
LED 7 OFF
• Floating blanking disabled: Floating blanking is not permitted.
• 1 floating blanking beam: The light curtain remains in NORMAL OPERATION if 1 beam
or 0 beams are interrupted.
• 2 floating blanking beams: The light curtain remains in NORMAL OPERATION if 2
adjacent beams, 1 beam or 0 beams are interrupted.
• Reduced resolution 4: The light curtain switches to a SAFE state if more than 4
adjacent beams are interrupted.
64
1003067-EN-04
