OPERATING MANUAL PSEN op4F/H-A series

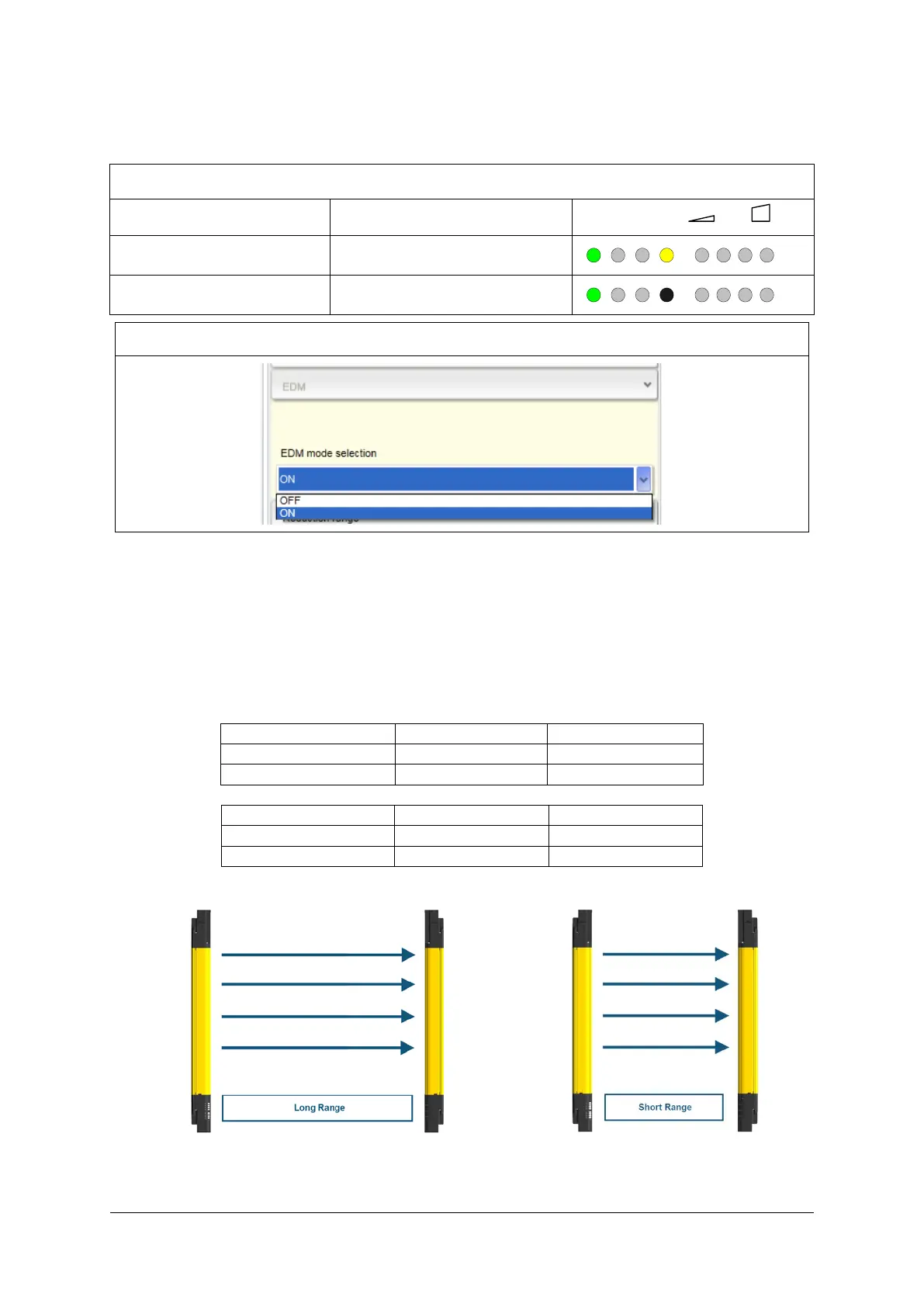

7.5 EDM selection
This function enables users to select or exclude monitoring of the external switching devices.
BCM configuration: EDM selection
PWR OSSD EDM ACM
LEVEL
Activated LED 4 ON yellow
Deactivated LED 4 OFF
ACM configuration: EDM selection
To increase the safety level when EDM is OFF when the light curtain is commissioned,
ensure that the EDM input is not connected.
7.6 Reduced range
This function enables you to select the maximum operating range for the light curtain’s
assembly.
The table below summarises the different operating ranges for both resolutions, if the
reduced operating range is changed.
Resolution 30 mm
RX long range
RX short range
TX long range
20 m
6 m
TX short range
12 m
4 m
Resolution 14 mm
RX long range
RX short range
TX long range
7 m
2 m
TX short range
4 m
1 m
Y
ou can select this function via ACM for the receiver and via BCM for the transmitter.
Fig. 39 – Reduced range
1003067-EN-04
43
